Littelfuse 0.75 A Resettable Fuse, 8V dc
- RS Stock No.:
- 895-1628
- Mfr. Part No.:
- 1206L075THYR
- Manufacturer:
- Littelfuse

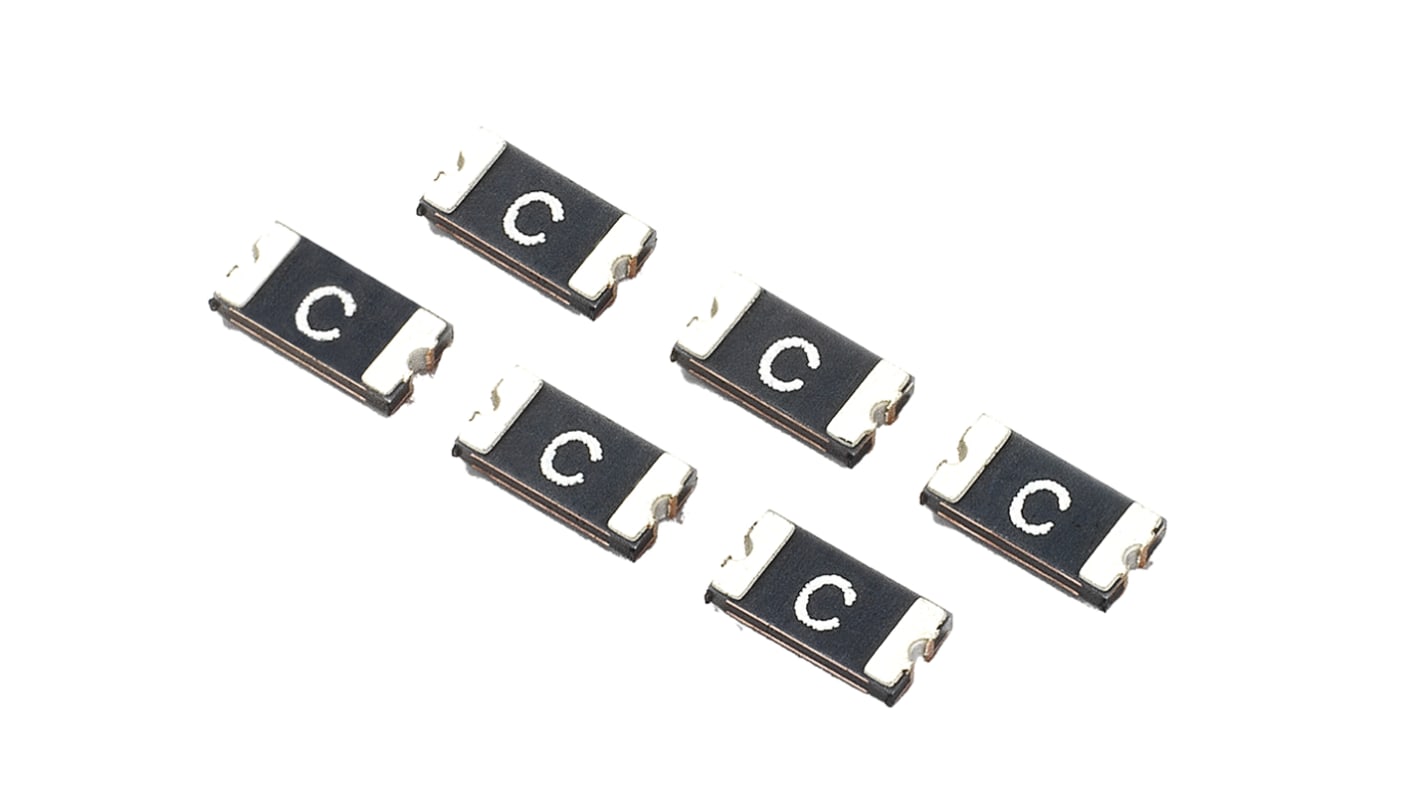

This image is representative of the product range
Subtotal (1 pack of 10 units)*
PHP183.15
(exc. VAT)
PHP205.13
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Last RS stock
- Final 200 unit(s), ready to ship from another location
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 + | PHP18.315 | PHP183.15 |
*price indicative
- RS Stock No.:
- 895-1628
- Mfr. Part No.:
- 1206L075THYR
- Manufacturer:
- Littelfuse
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Trip Current | 1.5A | |
| Product Type | Resettable Fuse | |
| Voltage | 8V dc | |
| Time to Trip | 0.2s | |
| Current Rating | 100A | |
| Hold Current | 0.75A | |
| Length | 3.4mm | |
| Height | 0.75mm | |
| Width | 1.8mm | |
| Terminal Material | Solder Plated Copper | |
| Minimum Resistance | 0.09Ω | |
| Maximum Resistance | 290mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Power Dissipation | 0.6W | |
| Standards/Approvals | RoHS | |
| Package Size | 1206 | |
| Series | 1206L | |
| Package Type | Reel | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Trip Current 1.5A | ||
Product Type Resettable Fuse | ||
Voltage 8V dc | ||
Time to Trip 0.2s | ||
Current Rating 100A | ||
Hold Current 0.75A | ||
Length 3.4mm | ||
Height 0.75mm | ||
Width 1.8mm | ||
Terminal Material Solder Plated Copper | ||
Minimum Resistance 0.09Ω | ||
Maximum Resistance 290mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Power Dissipation 0.6W | ||
Standards/Approvals RoHS | ||
Package Size 1206 | ||
Series 1206L | ||
Package Type Reel | ||
Littelfuse 1206L Series
Littelfuse 1206L series provide surface mount resettable over current protection in a small footprint which is Ideal for applications where space it limited. 1206L's offer a fast response to fault currents along with low resistance and a low profile.
Applications:
USB peripherals.
Mobile phones.
PDA's.
Game Console port protection.
Surface Mount Technology
Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are Ideal for protection of high Value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.
