Wickmann 4.2 A Resettable Fuse, 30 V dc
- RS Stock No.:
- 174-0464
- Mfr. Part No.:
- RF1672-000
- Manufacturer:
- Wickmann

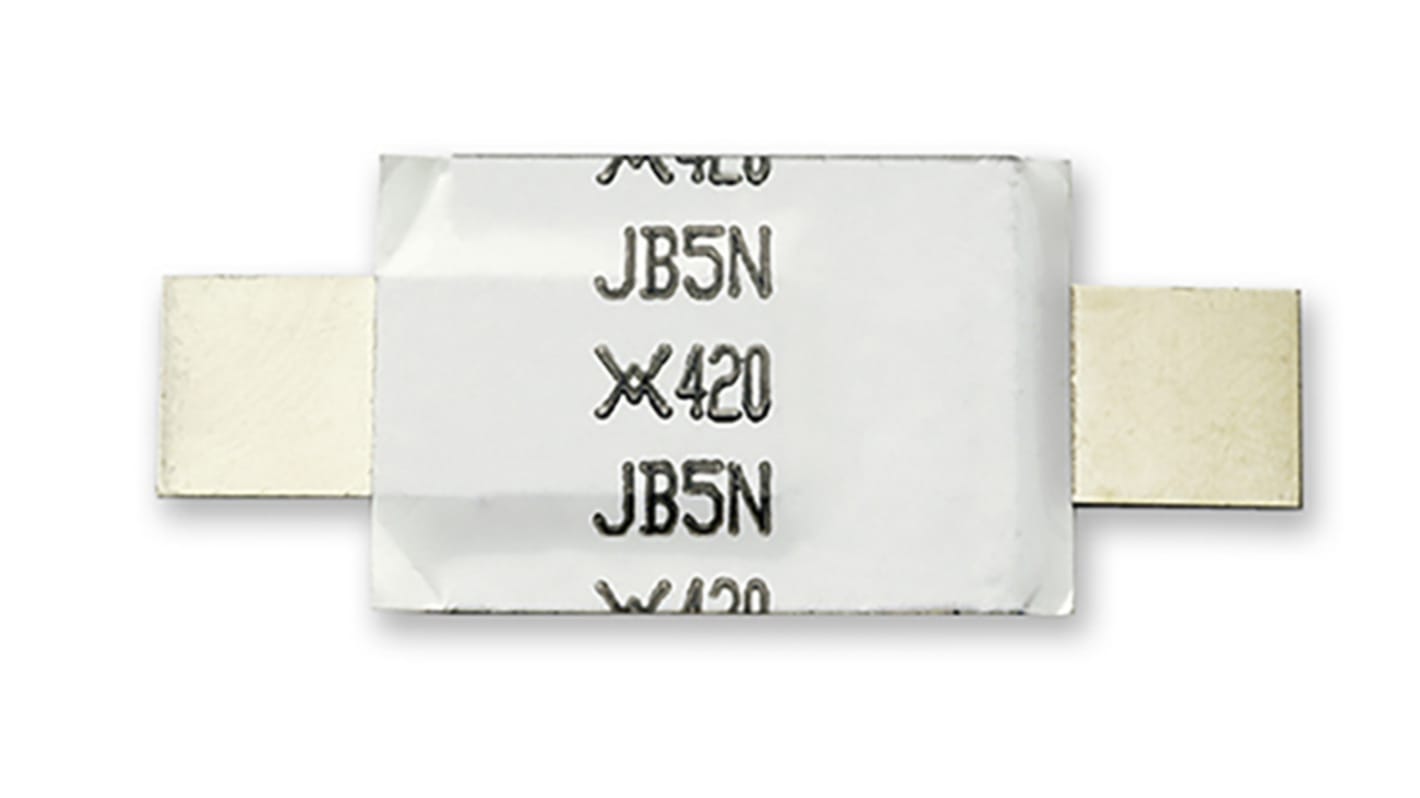

This image is representative of the product range
Bulk discount available
Subtotal (1 box of 500 units)*
PHP19,310.00
(exc. VAT)
PHP21,625.00
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 1,000 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 500 - 500 | PHP38.62 | PHP19,310.00 |
| 1000 - 1500 | PHP37.77 | PHP18,885.00 |
| 2000 + | PHP36.959 | PHP18,479.50 |
*price indicative
- RS Stock No.:
- 174-0464
- Mfr. Part No.:
- RF1672-000
- Manufacturer:
- Wickmann
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Trip Current | 7.6A | |
| Product Type | Resettable Fuse | |
| Voltage | 30 V dc | |
| Current Rating | 100 A | |
| Time to Trip | 6s | |
| Hold Current | 4.2A | |
| Length | 32.4mm | |
| Height | 1.1mm | |
| Width | 13.6 mm | |
| Terminal Material | Quarter Hard Nickel | |
| Minimum Resistance | 0.01Ω | |
| Minimum Operating Temperature | 85°C | |
| Maximum Resistance | 20mΩ | |
| Maximum Operating Temperature | -40°C | |
| Power Dissipation | 2.9W | |
| Standards/Approvals | RoHS, UL, TUV, CSA | |
| Fuse Speed | F | |
| Body Material | Polyester | |
| Series | SRP | |
| Select all | ||
|---|---|---|
Brand Wickmann | ||
Trip Current 7.6A | ||
Product Type Resettable Fuse | ||
Voltage 30 V dc | ||
Current Rating 100 A | ||
Time to Trip 6s | ||
Hold Current 4.2A | ||
Length 32.4mm | ||
Height 1.1mm | ||
Width 13.6 mm | ||
Terminal Material Quarter Hard Nickel | ||
Minimum Resistance 0.01Ω | ||
Minimum Operating Temperature 85°C | ||
Maximum Resistance 20mΩ | ||
Maximum Operating Temperature -40°C | ||
Power Dissipation 2.9W | ||
Standards/Approvals RoHS, UL, TUV, CSA | ||
Fuse Speed F | ||
Body Material Polyester | ||
Series SRP | ||
- COO (Country of Origin):
- CN
The Littlefuse Wickmann SRP series, 15/30 V PolySwitch lead free battery strap has many benefits and is generally used in applications like mobile phones, tablet PCs, mobile radios, digital cameras, portable media players and power tools (charge lines).
RoHS compliant
Lead-free versions of all devices are available
Broad range of resettable devices are available
Current ratings from 1.1A to 13A
Voltage ratings from 6V to 30V
Agency recognition: UL, CSA, TUV
Fast time-to-trip
Low resistance
