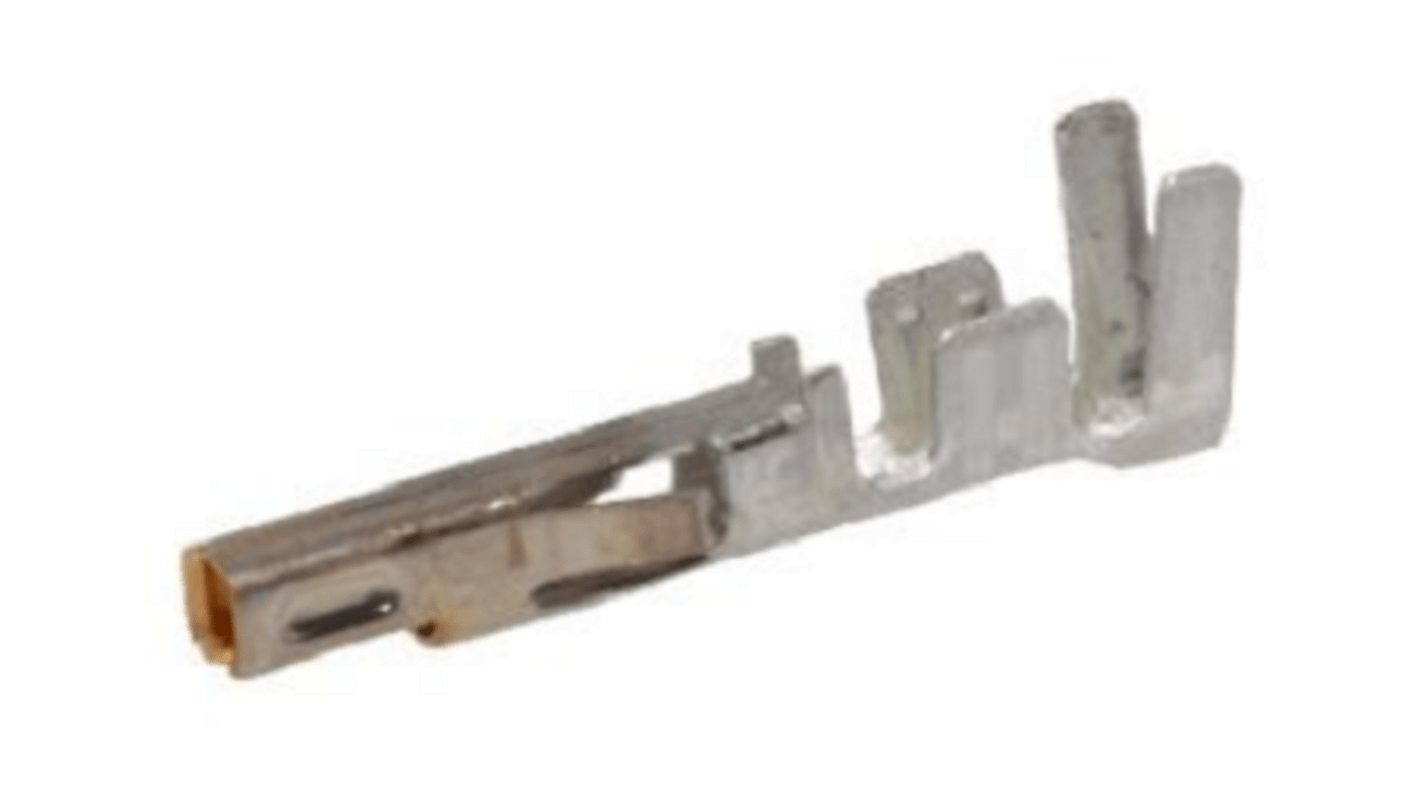

Molex Mini-Fit Plus Series Female Crimp Terminal, 16 AWG Min Crimp, 16 AWG Max

RS Stock No.:: 189-1366
Mfr. Part No.:: 45750-3112
Manufacturer:: Molex

Molex Mini-Fit Plus Series Female Crimp Terminal, 16 AWG Min Crimp, 16 AWG Max

This image is representative of the product range

Bulk discount available

Subtotal (1 box of 8000 units)*

PHP56,072.00

(exc. VAT)

PHP62,800.00

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per Unit	Per Box*
8000 - 8000	PHP7.009	PHP56,072.00
16000 - 16000	PHP6.834	PHP54,672.00
24000 +	PHP6.663	PHP53,304.00

*price indicative

RS Stock No.:: 189-1366
Mfr. Part No.:: 45750-3112
Manufacturer:: Molex

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Gender	Female
	Product Type	Crimp Terminal
	For Use With	Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
	Series	Mini-Fit Plus
	Current	13A
	Contact Plating	Tin
	Minimum Wire Size AWG	16 AWG
	Maximum Wire Size AWG	16 AWG
	Contact Material	Copper Nickel Silicon
	Maximum Contact Resistance	10mΩ
	Minimum Operating Temperature	-55°C
	Termination Type	Crimp
	Maximum Operating Temperature	105°C
	Standards/Approvals	No

	Select all
	Brand Molex
	Gender Female
	Product Type Crimp Terminal
	For Use With Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
	Series Mini-Fit Plus
	Current 13A
	Contact Plating Tin
	Minimum Wire Size AWG 16 AWG
	Maximum Wire Size AWG 16 AWG
	Contact Material Copper Nickel Silicon
	Maximum Contact Resistance 10mΩ
	Minimum Operating Temperature -55°C
	Termination Type Crimp
	Maximum Operating Temperature 105°C
	Standards/Approvals No

Datasheet 45750-3112

COO (Country of Origin):: US

Molex Female Crimp Terminal, 16AWG, 13A Current Rating - Mini-Fit Plus Series - 45750-3112

Securely attach wires to your circuit board using this crimp terminal from Molex. Its ribbed arms give a strong connection, eliminating the need for soldering. As the terminal can accommodate currents up to 13A and a maximum voltage of 600V, it's suited to high-powered applications. The contact material is made from a mix of copper, nickel and silicon, to give you a balance of conductivity and durability, which keeps your circuit performing efficiently over long periods.

• Works with Molex Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI connector housings for versatility

• Lead-free, low-halogen materials for a safe workplace

• Lifespan of 30 mating cycles for reliable long-term use even when a circuit needs disconnecting for maintenance

Applications

• Domestic appliances

• Office peripherals

• Industrial automation

• Automotive manufacturing

Can I use this crimp terminal for wire-to-wire applications?

Yes. It's a female crimp terminal, so you'll need a compatible male crimp terminal to connect your wires, such as the Mini-Fit version (207-6830).

What wire size does this crimp terminal accept?

This crimp terminal takes a maximum wire size of 16AWG or 1.3mm².

Molex Mini-Fit Plus HCS Crimp Contacts

The Mini-Fit Plus HCS is designed for high current applications up to 13A (dependant upon wire size and number of HCS contacts).

These Molex HCS terminals can be used with all existing Mini-Fit plugs and receptacles.

Male terminals 46012 and 44478 Series

Use with 5559 Series plug housings

Tooling

For extraction tool see stock number 215-5900

Molex Mini-Fit Plus HCS

Note

For crimp tool see stock number 207-6781
