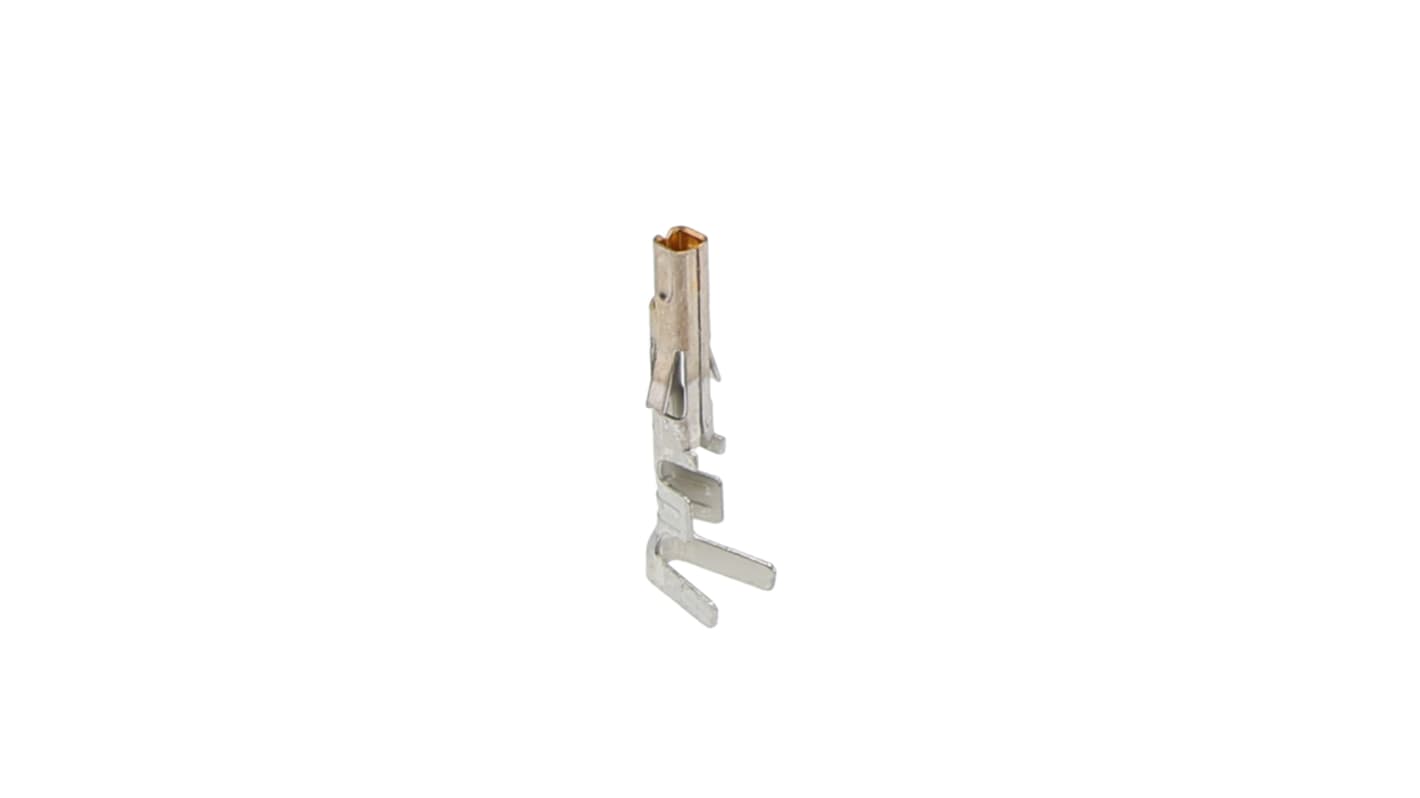

Molex Mini-Fit Plus Series Female Crimp Terminal, 20AWG Min, 18AWG Max

RS Stock No.:: 821-5972
Mfr. Part No.:: 45750-1212
Manufacturer:: Molex

Molex Mini-Fit Plus Series Female Crimp Terminal, 20AWG Min, 18AWG Max

Bulk discount available

Subtotal (1 pack of 50 units)**

PHP1,197.90

(exc. VAT)

PHP1,341.65

(inc. VAT)

15800 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for over PHP3,000.00 (ex VAT)

Real time qty checker

Units	Per Unit	Per Pack**
50 - 2450	PHP23.958	PHP1,197.90
2500 - 4950	PHP23.239	PHP1,161.95
5000 - 24950	PHP22.542	PHP1,127.10
25000 +	PHP21.866	PHP1,093.30

**price indicative

RS Stock No.:: 821-5972
Mfr. Part No.:: 45750-1212
Manufacturer:: Molex

Molex Mini-Fit Plus HCS Crimp Contacts

The Mini-Fit Plus HCS is designed for high current applications up to 13A (dependant upon wire size and number of HCS contacts).
These Molex HCS terminals can be used with all existing Mini-Fit plugs and receptacles.

Male terminals 46012 and 44478 Series

Use with 5559 Series plug housings

Tooling

For extraction tool see stock number 215-5900

Molex Mini-Fit Plus Series Crimp Terminal, 0.5mm² Minimum Wire size, 13A Maximum Current - 45750-1212

This crimp terminal is designed for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. As part of the Mini-Fit Plus connector series, it supports wire sizes ranging from 0.5 mm² to 0.8 mm² (20 AWG to 18 AWG), making it suitable for various electrical applications. Its gold plating enhances conductivity and reliability, allowing for efficient performance in demanding environments.

Features & Benefits

• Fully insulated terminals protect against handling damage
• Polarised mating geometry ensures proper alignment
• Positive locking housings prevent accidental unmating
• Crimped connections offer improved durability
• Extended dimple design increases long-term contact reliability
• Self-aligning interface simplifies connector mating in tight spaces

Applications

• Used with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI housings
• Ideal for automotive and industrial
• Utilised in consumer electronics like gaming machines and vending machines
• Suitable for medical devices and automation equipment

How does the crimp terminal ensure reliable connections for electronic applications?

The crimp terminal features a patented elongated dimple design that provides enhanced contact area, significantly improving long-term reliability in electrical connections.

What current rating can I expect from this terminal during operation?

This terminal is rated for a maximum current of 13A, making it suitable for high-current applications while maintaining efficiency.

Can this terminal accommodate different wire sizes?

Yes, it supports wire sizes between 0.5 mm² and 0.8 mm², or 20 AWG to 18 AWG, providing flexibility for various wiring needs.

What materials are used in the construction of this terminal?

It is made from copper alloy, with gold plating that enhances conductivity and corrosion resistance, ensuring durability in various environments.

Molex Mini-Fit Plus HCS

Attribute	Value
Gender	Female
For Use With	Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
Series	Mini-Fit Plus
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	0.8mm²
Termination Method	Crimp
Minimum Wire Size AWG	20AWG
Contact Plating	Gold
Maximum Wire Size AWG	18AWG
Contact Material	Copper Alloy
Series Number	45750
Maximum Current	13A
