TE Connectivity, PIDG Receptacle Crimp Quick Disconnect Terminal, Red, Insulated, Tin 16 AWG
- RS Stock No.:
- 279-8790
- Distrelec Article No.:
- 148-20-706
- Mfr. Part No.:
- 9-160483-1
- Manufacturer:
- TE Connectivity

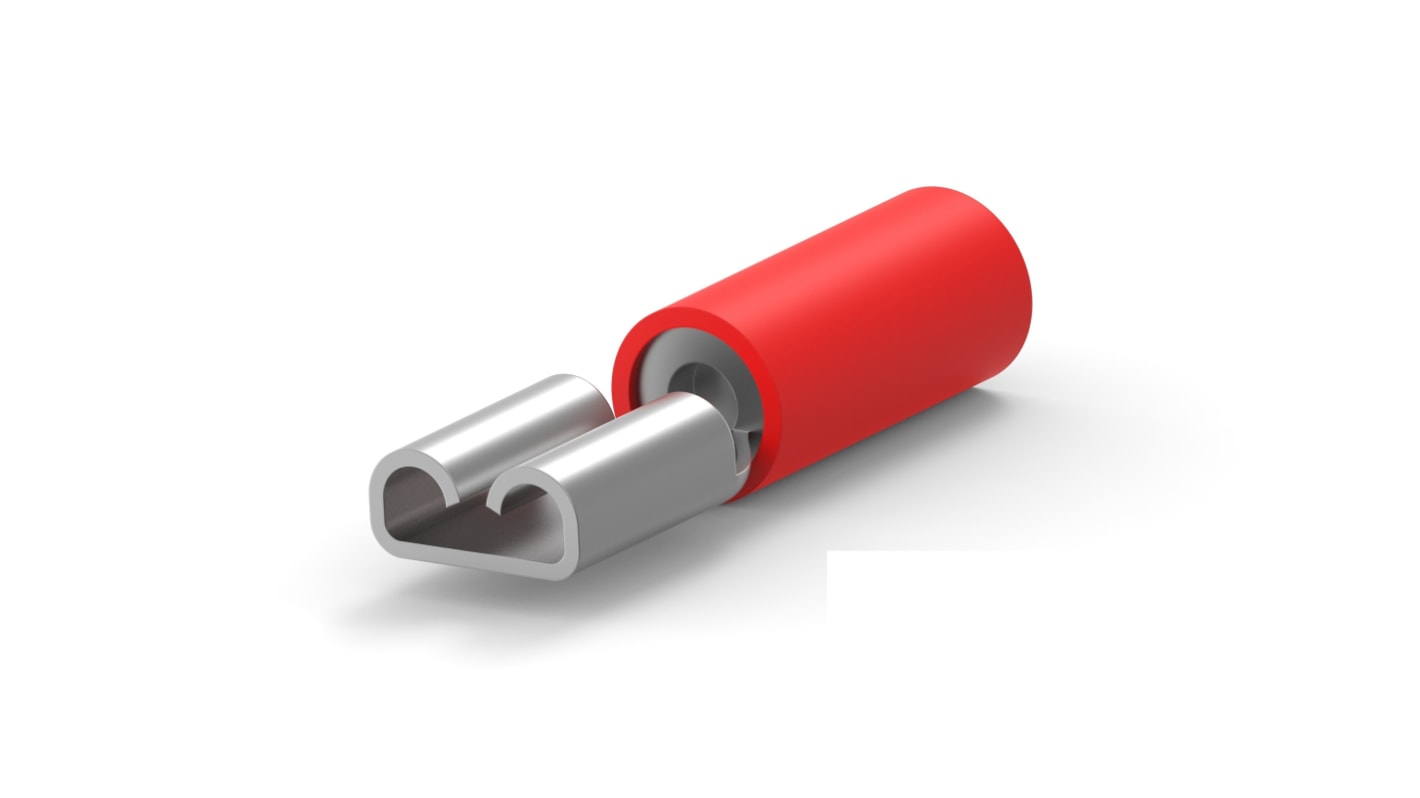

This image is representative of the product range
Subtotal (1 box of 1000 units)*
PHP28,602.00
(exc. VAT)
PHP32,034.00
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from November 17, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 1000 + | PHP28.602 | PHP28,602.00 |
*price indicative
- RS Stock No.:
- 279-8790
- Distrelec Article No.:
- 148-20-706
- Mfr. Part No.:
- 9-160483-1
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Crimp Quick Disconnect Terminal | |
| Splice Type | Receptacle | |
| Overall Length | 20.88mm | |
| Minimum Wire Size AWG | 22AWG | |
| Diameter | 3.56mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 16AWG | |
| Colour | Red | |
| Insulation Material | Nylon | |
| Contact Dimensions | 6.35 x 5.74 x 0.7 mm | |
| Contact Length | 6.35mm | |
| Series | PIDG | |
| Contact Material | Brass | |
| Termination Type | Crimp | |
| Contact Plating | Tin | |
| Thickness | 0.020in | |
| Standards/Approvals | UL 94V-2, ASTM B-545, MIL-SPEC, UL, EN 1676, ASTM B 36, SAE AS7928, SAE AMS QQ-N-290, MIL-C-50, DIN 1787, ASTM B-152, CSA | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Crimp Quick Disconnect Terminal | ||
Splice Type Receptacle | ||
Overall Length 20.88mm | ||
Minimum Wire Size AWG 22AWG | ||
Diameter 3.56mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 16AWG | ||
Colour Red | ||
Insulation Material Nylon | ||
Contact Dimensions 6.35 x 5.74 x 0.7 mm | ||
Contact Length 6.35mm | ||
Series PIDG | ||
Contact Material Brass | ||
Termination Type Crimp | ||
Contact Plating Tin | ||
Thickness 0.020in | ||
Standards/Approvals UL 94V-2, ASTM B-545, MIL-SPEC, UL, EN 1676, ASTM B 36, SAE AS7928, SAE AMS QQ-N-290, MIL-C-50, DIN 1787, ASTM B-152, CSA | ||
The TE Connectivity FASTON Receptacle has operating temperature of 105°C.
UL and CSA approved
