Molex, 19017 Quick Splice Crimp Quick Disconnect Terminal, Red, Insulated, Tin 18 AWG

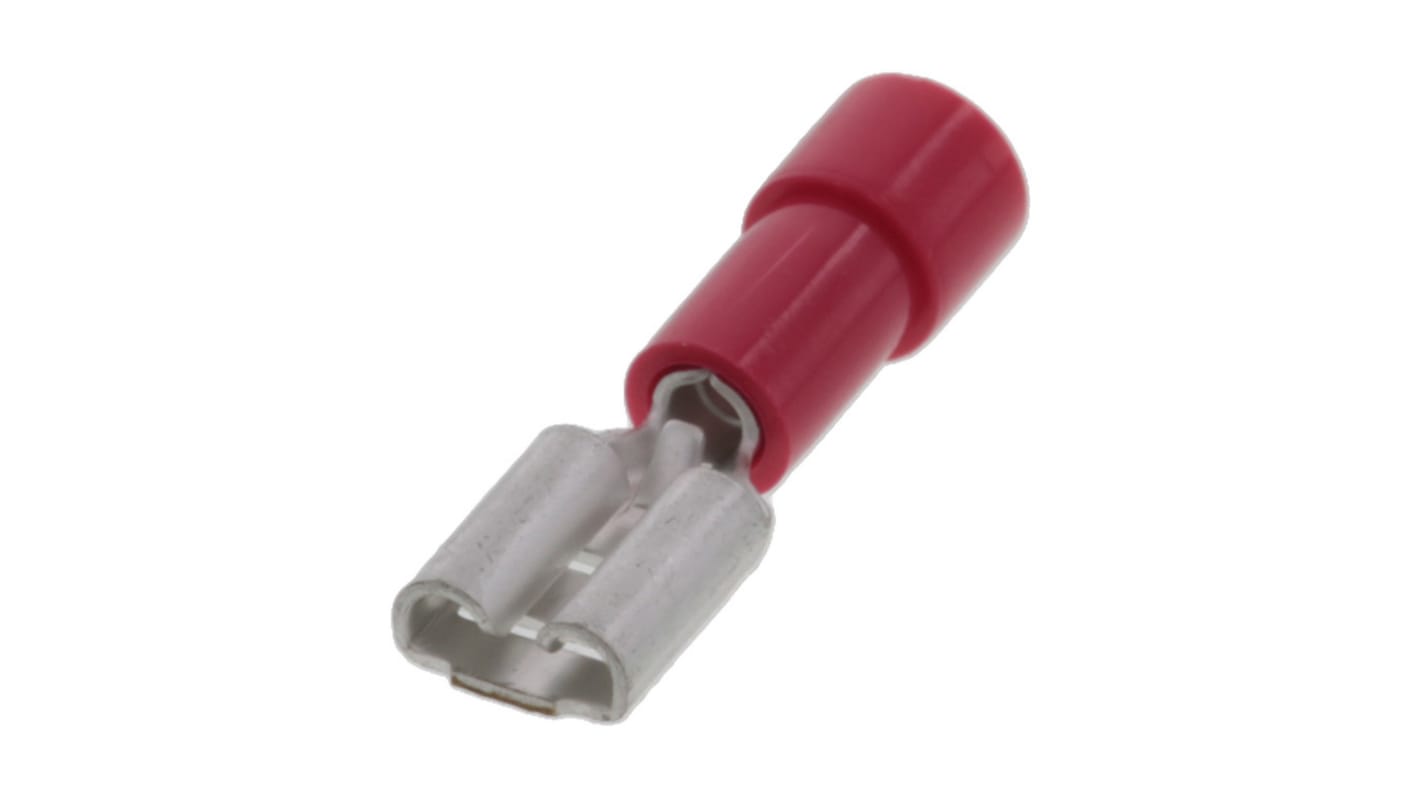

This image is representative of the product range

View all Splice Connectors

Subtotal (1 bag of 1000 units)*

PHP15,173.00

(exc. VAT)

PHP16,994.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from August 17, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Bag*
1000 +PHP15.173PHP15,173.00

*price indicative

RS Stock No.:
259-2428
Mfr. Part No.:
19017-0007
Manufacturer:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Splice Type

Quick Splice

Product Type

Crimp Quick Disconnect Terminal

Overall Length

20.04mm

Minimum Wire Size AWG

22 AWG

Diameter

3.4 mm

Insulation

Insulated

Maximum Wire Size AWG

18 AWG

Colour

Red

Insulation Material

Polyvinyl Chloride

Series

19017

Contact Material

Brass

Contact Plating

Tin

Thickness

0.51mm

Standards/Approvals

UL E79133, CSA LR18689

RoHS Status: Not Applicable

COO (Country of Origin):
US
The Molex insulkrimp quick disconnect female, for 18-22 (0.80-0.35mm²) wire, box, tab 4.75 x 0.51mm.

Barrel Type Closed

Color - Resin Red

Flammability 94V-0

Gender female

Glow-wire capable no

Insulation PVC

Material - metal brass

Wire size AWG 18, 20, 22
