Molex, 19276 Quick Splice Crimp Quick Disconnect Terminal, Blue, Insulated, Tin 14 AWG
- RS Stock No.:
- 259-2492
- Mfr. Part No.:
- 19276-0004
- Manufacturer:
- Molex

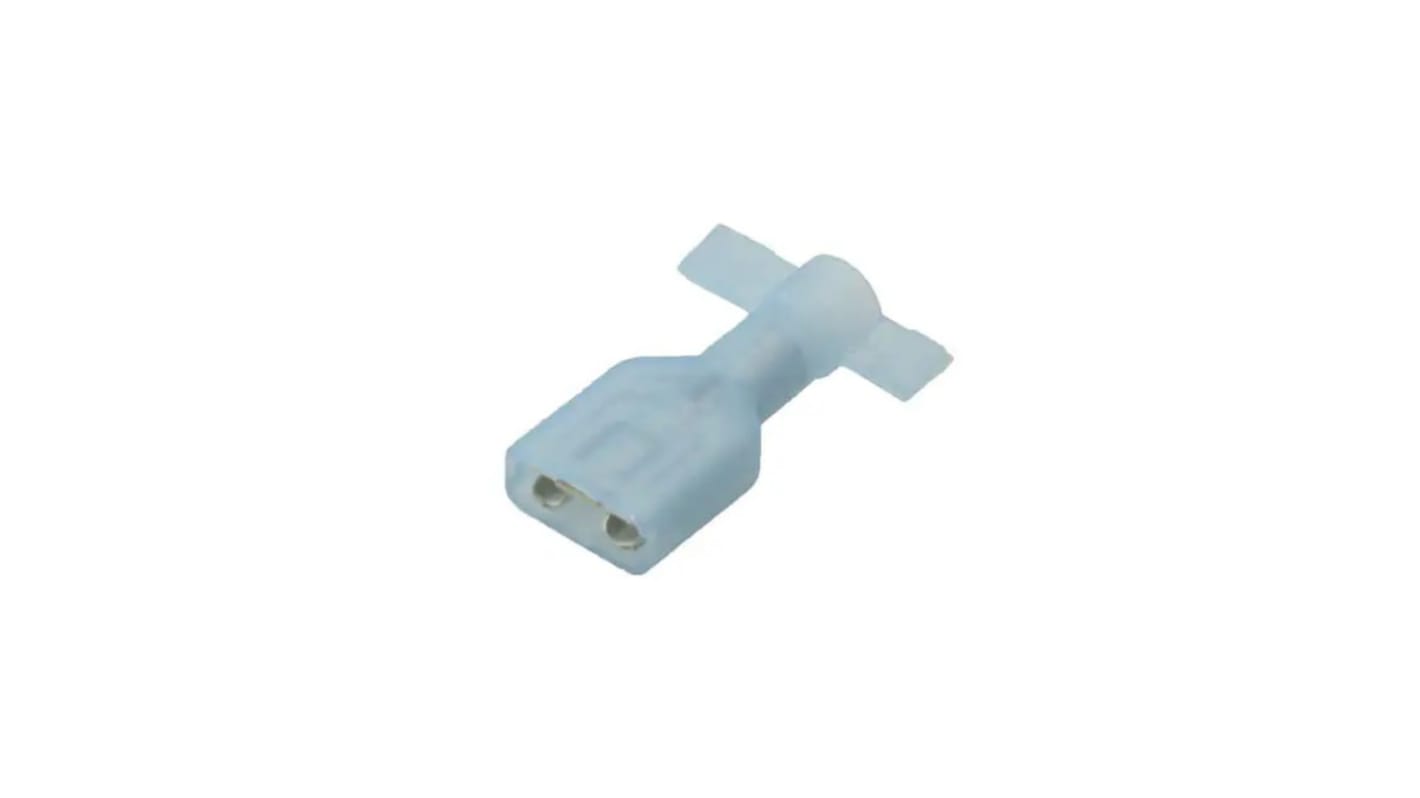

This image is representative of the product range
Bulk discount available
Subtotal (1 tape of 10 units)*
PHP150.52
(exc. VAT)
PHP168.58
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 2,180 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tape* |
|---|---|---|
| 10 - 90 | PHP15.052 | PHP150.52 |
| 100 - 240 | PHP14.60 | PHP146.00 |
| 250 - 490 | PHP14.016 | PHP140.16 |
| 500 - 990 | PHP13.316 | PHP133.16 |
| 1000 + | PHP12.517 | PHP125.17 |
*price indicative
- RS Stock No.:
- 259-2492
- Mfr. Part No.:
- 19276-0004
- Manufacturer:
- Molex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Splice Type | Quick Splice | |
| Product Type | Crimp Quick Disconnect Terminal | |
| Overall Length | 21.8mm | |
| Minimum Wire Size AWG | 16AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Insulation | Insulated | |
| Colour | Blue | |
| Insulation Material | Nylon | |
| Series | 19276 | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Termination Type | Crimp | |
| Thickness | 0.41mm | |
| Standards/Approvals | UL E79133, CSA LR18689 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Splice Type Quick Splice | ||
Product Type Crimp Quick Disconnect Terminal | ||
Overall Length 21.8mm | ||
Minimum Wire Size AWG 16AWG | ||
Maximum Wire Size AWG 14AWG | ||
Insulation Insulated | ||
Colour Blue | ||
Insulation Material Nylon | ||
Series 19276 | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Termination Type Crimp | ||
Thickness 0.41mm | ||
Standards/Approvals UL E79133, CSA LR18689 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
The Molex quixon quick disconnect, insulkrimp style, female, fully insulated blue, 14-16 AWG. it is continuous strip.
Barrel type closed
Color - Resin Blue
Flammability 94V-2
Gender female
Insulation nylon (PA)
Wire insulation diameter 4.06mm
Wire size AWG 14, 16
