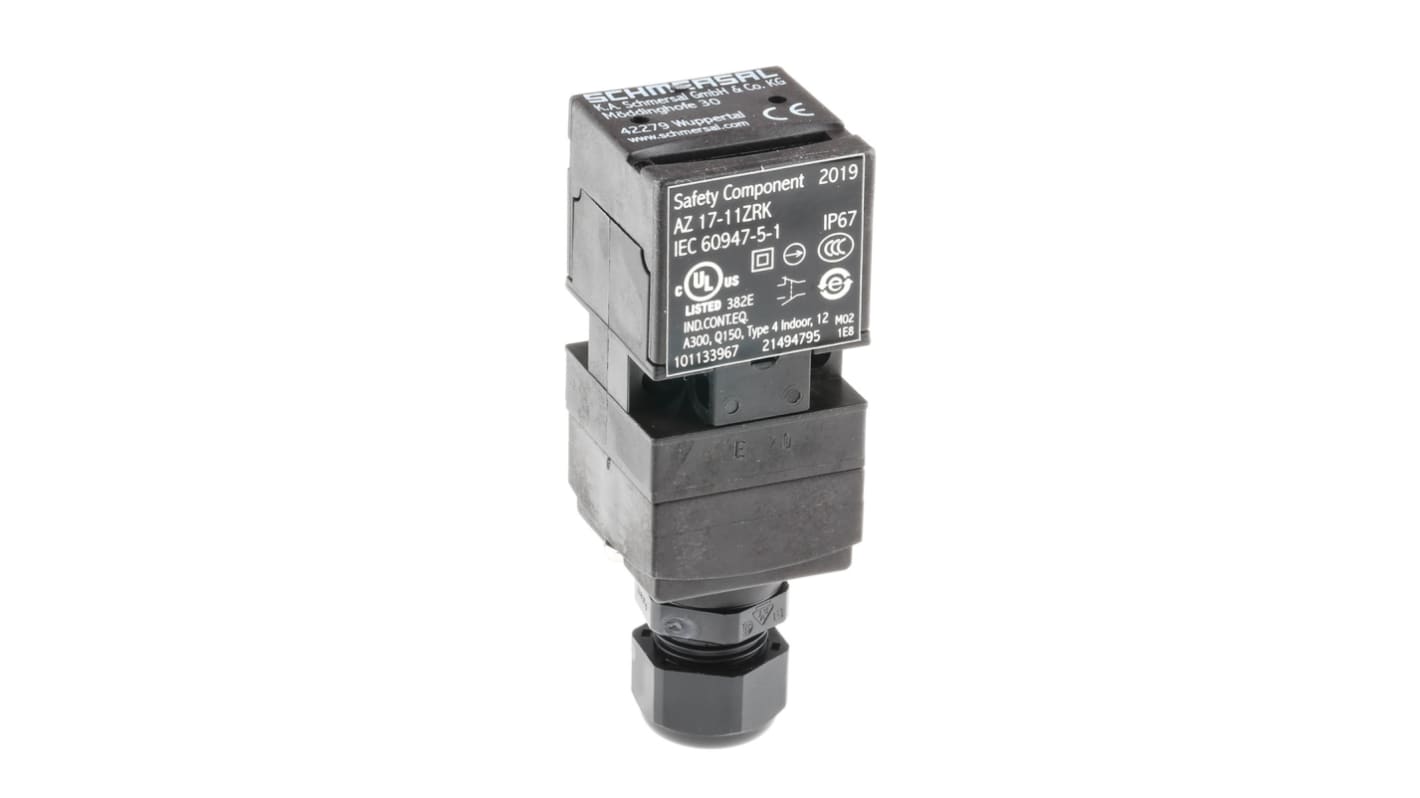

Schmersal AZ17 Safety Interlock Switch, Keyed Actuator Included, Fibreglass Reinforced Thermoplastic, Interlock
- RS Stock No.:
- 623-3082
- Mfr. Part No.:
- AZ 17-11ZRK
- Manufacturer:
- Schmersal
Bulk discount available
Subtotal (1 unit)*
PHP4,705.65
(exc. VAT)
PHP5,270.33
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 52 unit(s) ready to ship from another location
- Plus 12 unit(s) shipping from June 15, 2026
- Plus 12 unit(s) shipping from July 13, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 5 | PHP4,705.65 |
| 6 - 11 | PHP4,588.00 |
| 12 + | PHP4,473.30 |
*price indicative
- RS Stock No.:
- 623-3082
- Mfr. Part No.:
- AZ 17-11ZRK
- Manufacturer:
- Schmersal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schmersal | |
| Lock Style | Keyed | |
| Product Type | Safety Interlock Switch | |
| Lock Type | Interlock | |
| Actuator Included | Yes | |
| Safety Contacts | 1 NO | |
| Housing Material | Fibreglass Reinforced Thermoplastic | |
| Series | AZ17 | |
| Number of Auxiliary Contacts | 1 | |
| IP Rating | IP67 | |
| Switch Contact Current | 4A | |
| Minimum Operating Temperature | -30°C | |
| Contact AC Voltage | 230V ac | |
| Maximum Operating Temperature | 80°C | |
| Hazardous Area Certification | No | |
| Number of Head Directions | 4 | |
| Length | 85mm | |
| Standards/Approvals | CSA, IEC, VDE, UL | |
| Width | 30mm | |
| Depth | 30mm | |
| Select all | ||
|---|---|---|
Brand Schmersal | ||
Lock Style Keyed | ||
Product Type Safety Interlock Switch | ||
Lock Type Interlock | ||
Actuator Included Yes | ||
Safety Contacts 1 NO | ||
Housing Material Fibreglass Reinforced Thermoplastic | ||
Series AZ17 | ||
Number of Auxiliary Contacts 1 | ||
IP Rating IP67 | ||
Switch Contact Current 4A | ||
Minimum Operating Temperature -30°C | ||
Contact AC Voltage 230V ac | ||
Maximum Operating Temperature 80°C | ||
Hazardous Area Certification No | ||
Number of Head Directions 4 | ||
Length 85mm | ||
Standards/Approvals CSA, IEC, VDE, UL | ||
Width 30mm | ||
Depth 30mm | ||
- COO (Country of Origin):
- DE
Schmersal Safety Interlock Switch, NO/NC, M16 - AZ17 Series - AZ 17-11ZRK
This Schmersal safety interlock switch is a safeguarding measure for use with movable guards or gates around dangerous machinery and motors. The switch has one NO (normally open) and one NC (normally closed) contact to effectively regulate the on and off modes of appliances. You can use this item in your industrial working environments to control the functioning of potentially hazardous machinery and protect workers from injuries.
Features & Benefits
• Glass fibre-reinforced thermoplastic construction ensures the switch is robust enough to withstand impact and chemicals
• Compact dimensions of 85 (length) x 30 (width) x 30mm (depth) for installation in tight places
• IP67 (ingress protection) rating for protection against dust and submersion in up to 1m of water for 30 minutes
• Stainless steel actuator key is durable and resistant to corrosion for long-lasting performance
Applications
• Assembly lines
• Automotive industry
• Industrial machinery
Is this switch tamper-proof?
For increased safety, this switch has a tamper-resistant design that prevents bypassing and disconnection with tools or bent wires. The actuator key can also be padlocked during maintenance to prevent tampering or accidental activation.
