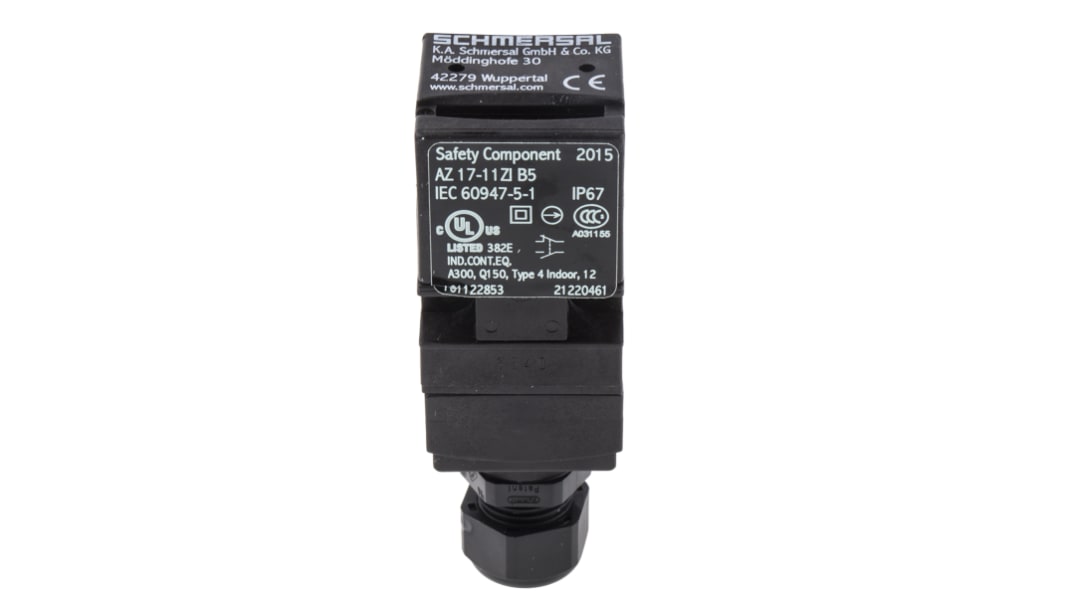

Schmersal AZ17 Safety Interlock Switch, Keyed Actuator Included, Fibreglass Reinforced Thermoplastic, Key
- RS Stock No.:
- 211-1499
- Mfr. Part No.:
- AZ 17-11ZI-B5
- Manufacturer:
- Schmersal
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP7,479.02
(exc. VAT)
PHP8,376.50
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 4 unit(s) shipping from August 17, 2026
- Plus 6 unit(s) shipping from August 24, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 5 | PHP7,479.02 |
| 6 - 11 | PHP7,254.65 |
| 12 + | PHP7,036.99 |
*price indicative
- RS Stock No.:
- 211-1499
- Mfr. Part No.:
- AZ 17-11ZI-B5
- Manufacturer:
- Schmersal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schmersal | |
| Product Type | Safety Interlock Switch | |
| Lock Style | Keyed | |
| Lock Type | Key | |
| Actuator Included | Yes | |
| Safety Contacts | 1 NO | |
| Housing Material | Fibreglass Reinforced Thermoplastic | |
| Series | AZ17 | |
| Contact AC Voltage | 230V ac | |
| Contact DC Voltage | 24V dc | |
| Minimum Operating Temperature | -30°C | |
| IP Rating | IP67 | |
| Number of Auxiliary Contacts | 1 | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | UL Listed | |
| Width | 85mm | |
| Number of Head Directions | 4 | |
| Depth | 85mm | |
| Length | 30mm | |
| Conduit Entry | M20 | |
| Select all | ||
|---|---|---|
Brand Schmersal | ||
Product Type Safety Interlock Switch | ||
Lock Style Keyed | ||
Lock Type Key | ||
Actuator Included Yes | ||
Safety Contacts 1 NO | ||
Housing Material Fibreglass Reinforced Thermoplastic | ||
Series AZ17 | ||
Contact AC Voltage 230V ac | ||
Contact DC Voltage 24V dc | ||
Minimum Operating Temperature -30°C | ||
IP Rating IP67 | ||
Number of Auxiliary Contacts 1 | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals UL Listed | ||
Width 85mm | ||
Number of Head Directions 4 | ||
Depth 85mm | ||
Length 30mm | ||
Conduit Entry M20 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Schmersal Safety Interlock Switch, 30mm Length, 5N Latching Force - AZ17 Series - AZ 17-11ZI-B5
Choose this safety interlock switch from Schmersal to prevent accidents in industrial environments. If it detects a guard door is open, it trips the machine to restrict access to it. For added security, it comes with an individually coded actuator key to prevent tampering. Thanks to its fast actuating speed of 2m per second, it's highly sensitive for a quick reaction time. To ensure workplace safety, the glass fibre-reinforced thermoplastic material is self-extinguishing, so it won't promote the spread of flames in the event of a fire.
Features & Benefits
• IP67 (ingress protection) rating means it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes
• Wide operating temperature range of -30°C to +80°C for use in demanding environments
• Compact dimensions of 30 (length) x 30 (width) x 85mm (height) for installation in areas where space is limited
Applications
• Elevators
• Chemical plants
• Automated security systems
How long does this switch last?
It has a minimum mechanical lifespan of 1,000,000 cycles, which means you can use this switch for a long time without replacing it.
