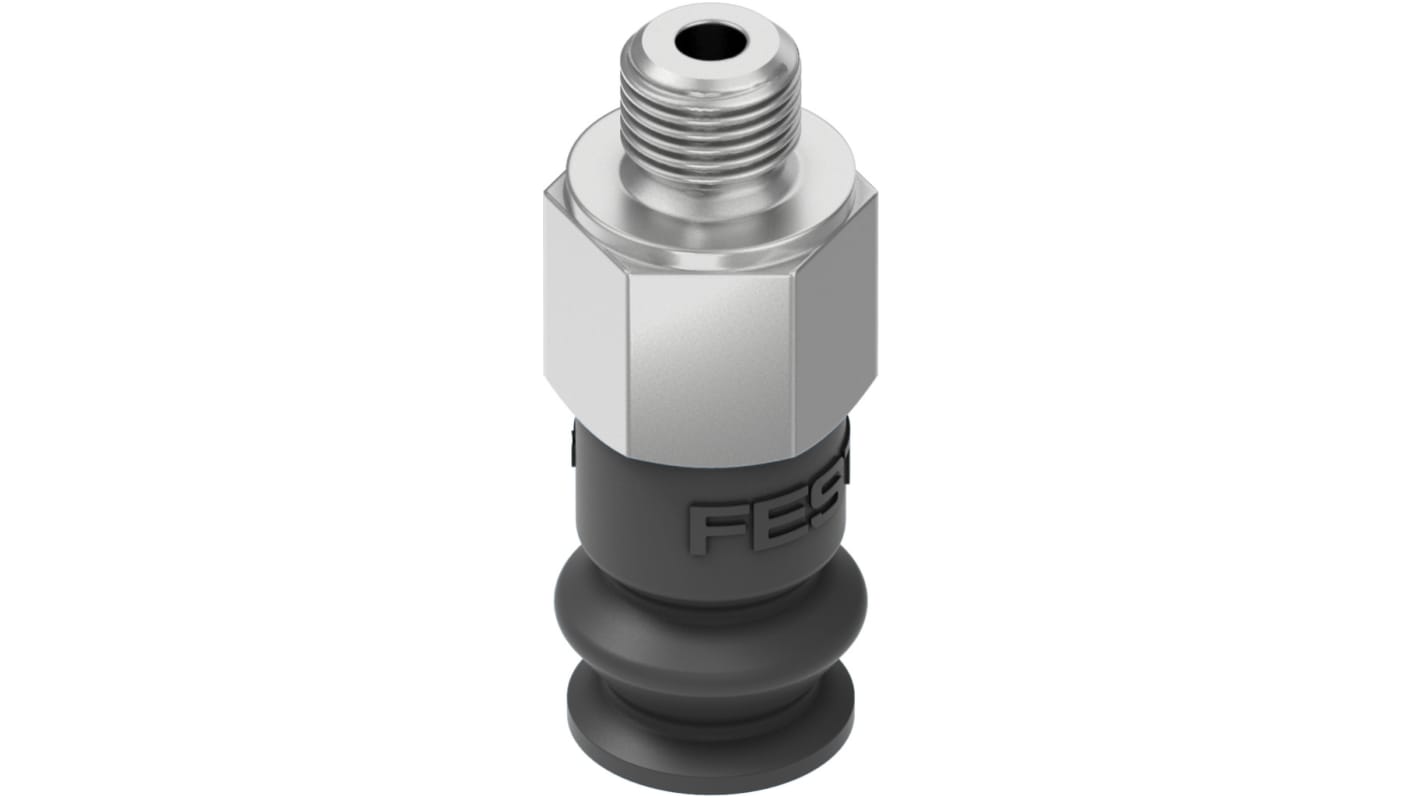

Festo 8 mm Cup Nitrile Rubber (NBR) Suction Cup VASB-8-M5-NBR 5.5 mm
- RS Stock No.:
- 202-2895
- Mfr. Part No.:
- VASB-8-M5-NBR
- Manufacturer:
- Festo
Subtotal (1 unit)*
PHP919.92
(exc. VAT)
PHP1,030.31
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | PHP919.92 |
*price indicative
- RS Stock No.:
- 202-2895
- Mfr. Part No.:
- VASB-8-M5-NBR
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Connection Size | 5.5 mm | |
| Pad Diameter | 8mm | |
| Product Type | Suction Cup | |
| Pad Type | Cup | |
| Pad Material | Nitrile Rubber (NBR) | |
| Connection Type | Threaded | |
| Series | VASB | |
| Holding Force | 1.6N | |
| Vacuum Entry Direction | On Top | |
| Tube Outside Diameter | 5.5mm | |
| Standards/Approvals | ISO8573-1:2010 (7:-:-) | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Connection Size 5.5 mm | ||
Pad Diameter 8mm | ||
Product Type Suction Cup | ||
Pad Type Cup | ||
Pad Material Nitrile Rubber (NBR) | ||
Connection Type Threaded | ||
Series VASB | ||
Holding Force 1.6N | ||
Vacuum Entry Direction On Top | ||
Tube Outside Diameter 5.5mm | ||
Standards/Approvals ISO8573-1:2010 (7:-:-) | ||
Festo Suction Cup, -20 to 80 °C Ambient Temperature, 2mm Nominal size - VASB-8-M5-NBR, Numeric Part Number: 35410
This suction cup from the VASB series features an 8 mm diameter for effective gripping, with a suction diameter of 5.5 mm. It operates efficiently across a pressure range from -0.095 MPa to 0 MPa and is crafted from durable materials. Capable of functioning within an ambient temperature range of -20°C to 80°C, this suction cup is designed for reliable performance in various applications.
Features & Benefits
• Holds up to 1.6N at nominal operating pressure
• Made from robust NBR material for enhanced durability
• M5 connection ensures versatile mounting options
• Conforms to RoHS regulations for environmental safety
• Operates efficiently with atmospheric air as the medium
• 1.5 convolutions provide effective suction capabilities
Applications
• Holds up to 1.6N at nominal operating pressure
• Made from robust NBR material for enhanced durability
• M5 connection ensures versatile mounting options
• Conforms to RoHS regulations for environmental safety
• Operates efficiently with atmospheric air as the medium
• 1.5 convolutions provide effective suction capabilities
What materials are used in the construction of the suction cup?
It features a NBR suction cup and a brass connected plug.
What is the nominal size of this suction cup?
The nominal size is 8 mm.
Can it sustain a holding force at varying pressures?
Yes, it maintains a holding force of 1.6N consistently across its operating pressure range.
