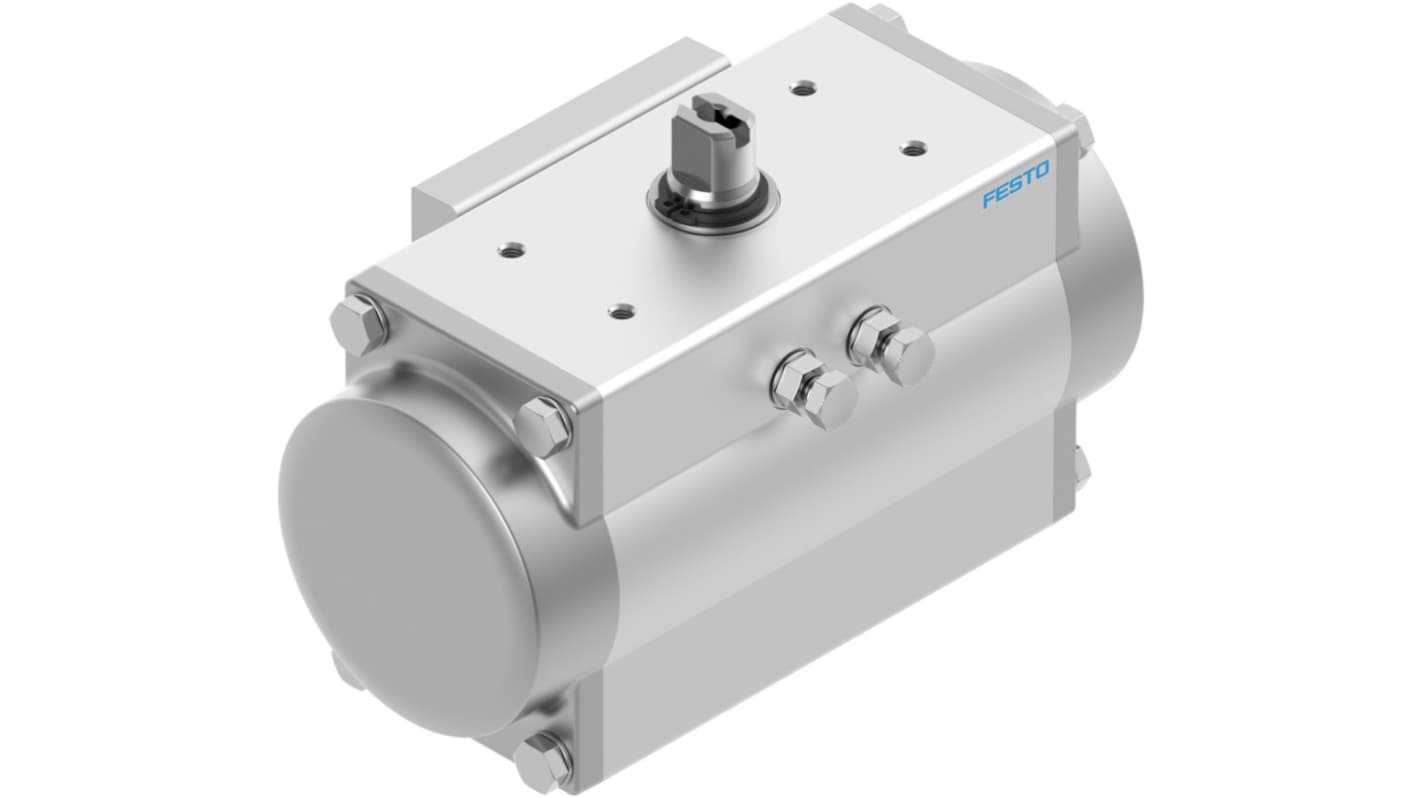

Festo DFPD Series 8 bar Single Acting Action Pneumatic Rotary Actuator, 40mm Bore, 90 °
- RS Stock No.:
- 280-8207
- Mfr. Part No.:
- DFPD-40-RP-90-RS60-F04-R3-EP
- Manufacturer:
- Festo
Subtotal (1 unit)*
PHP18,717.83
(exc. VAT)
PHP20,963.97
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Stocked by manufacturer
- Ready to ship from December 09, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP18,717.83 |
*price indicative
- RS Stock No.:
- 280-8207
- Mfr. Part No.:
- DFPD-40-RP-90-RS60-F04-R3-EP
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Rotary Actuator | |
| Action Type | Single Acting | |
| Bore Diameter | 40mm | |
| Connection Thread Standard | ISO 5211 | |
| Series | DFPD | |
| Maximum Operating Pressure | 8 bar | |
| Angle of Rotation | 90° | |
| Maximum Torque Rating | 28Nm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Weight | 2.2kg | |
| Model Number | 8047643 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Rotary Actuator | ||
Action Type Single Acting | ||
Bore Diameter 40mm | ||
Connection Thread Standard ISO 5211 | ||
Series DFPD | ||
Maximum Operating Pressure 8 bar | ||
Angle of Rotation 90° | ||
Maximum Torque Rating 28Nm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Weight 2.2kg | ||
Model Number 8047643 | ||
- COO (Country of Origin):
- IT
Festo DFPD Series Pneumatic Rotary Actuator, 90 Rotary Angle, 40mm Bore - DFPD-40-RP-90-RS60-F04-R3-EP, Numeric Part Number: 8047643
This pneumatic rotary actuator is designed for precise control in various industrial applications. With a robust 40mm bore and a 90-degree swivel angle, this single-acting actuator fits seamlessly into automation systems, particularly where reliable motion actuation is required. Weighing 2180g, it features a G 1/8 port connection, providing compatibility with standard fittings for enhanced flexibility and functionality.
Features & Benefits
• Designed for single-acting operation to simplify integration
• Compact size ensures versatility across various usage
• 90-degree rotation enhances operational efficiency
• Adjustable end-position range allows for fine-tuning
• Cushioned design promotes smoother motion and reduces wear
• High-pressure capability supports demanding environments
Applications
• Used for automation tasks in manufacturing processes
• Suitable for valve control in hazardous environments
• Ideal for assembly line requiring precision
• Used in robotics for effective movement control
• Utilised in pneumatic systems for reliable actuation
What is the maximum operating pressure for this actuator?
The actuator operates at a maximum pressure of 8 bar, ensuring robust performance under higher demands while maintaining efficiency in various applications.
How does the actuator handle safety during operation?
It features a safety function that automatically switches to a defined position when compressed air is turned off, utilising the spring force for reliable operation in critical situations.
What materials are used in the construction of the actuator?
The actuator is made from anodised wrought aluminium alloy, die-cast aluminium, high-alloy stainless steel, and NBR seals, ensuring durability and resistance to corrosion.
Can this actuator be lubricated during operation?
Yes, lubricated operation is possible and always necessary to enhance performance and extend the actuator's lifespan in demanding applications.
What is the torque output at nominal operating pressure?
At a nominal pressure of 6 bar, the actuator achieves a torque of 28 Nm at a 0-degree swivel angle, providing sufficient force for various applications.
