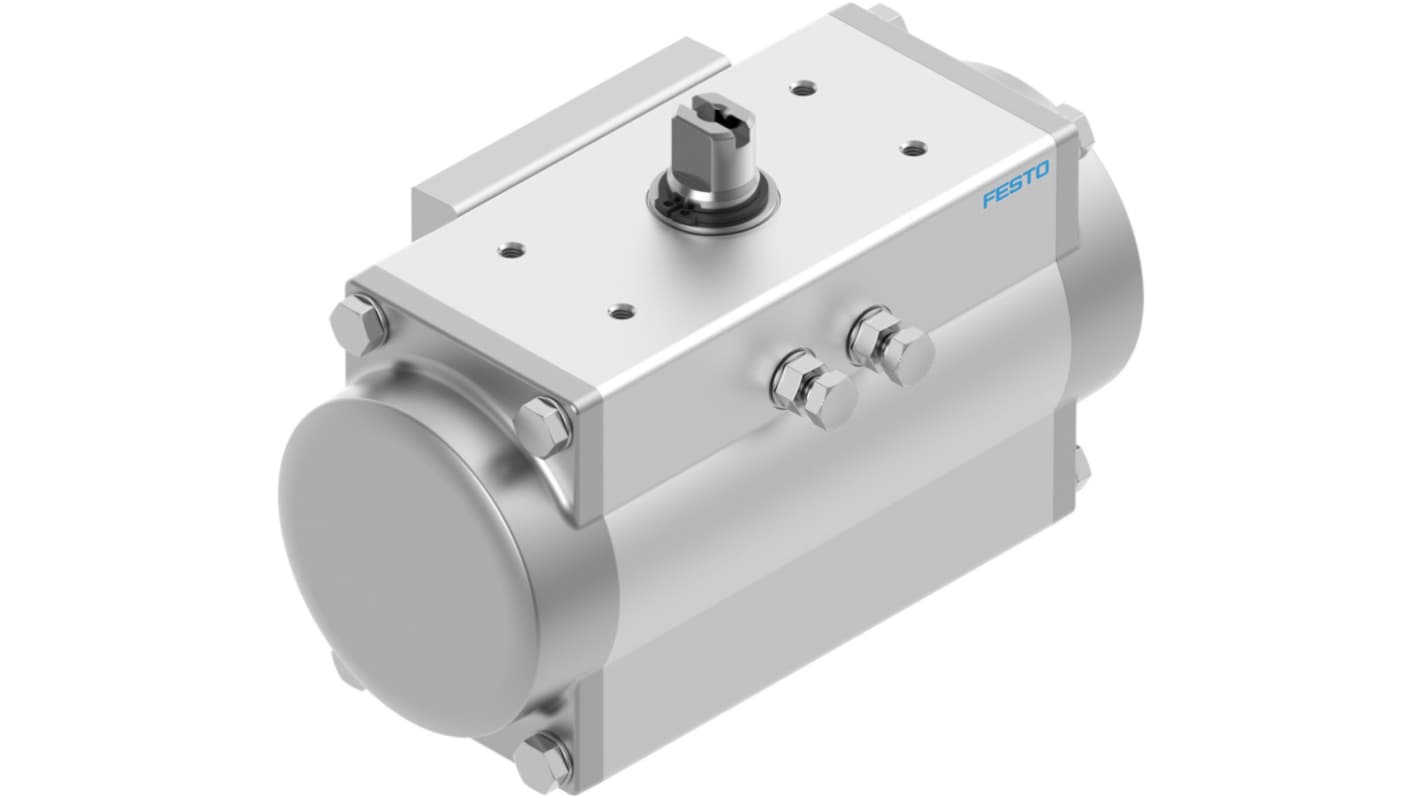

Festo DFPD Series 8 bar Single Acting with Return Spring Action Rotary Actuator, 90 Rotary Angle, 40mm Bore

RS Stock No.:: 280-8206
Mfr. Part No.:: DFPD-40-RP-90-RS60-F04
Manufacturer:: Festo

Festo DFPD Series 8 bar Single Acting with Return Spring Action Rotary Actuator, 90 Rotary Angle, 40mm Bore

Subtotal (1 unit)**

PHP13,579.90

(exc. VAT)

PHP15,209.49

(inc. VAT)

Temporarily out of stock - back order for despatch 23/08/2025, delivery within 10 working days from desptach date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for over PHP3,000.00 (ex VAT)

Units	Per Unit
1 +	PHP13,579.90

**price indicative

RS Stock No.:: 280-8206
Mfr. Part No.:: DFPD-40-RP-90-RS60-F04
Manufacturer:: Festo

Festo DFPD Series Rotary Actuator, 90 Rotary Angle, 40mm Bore - DFPD-40-RP-90-RS60-F04, Numeric Part Number: 8047636

This rotary actuator is a semi-rotary drive designed for precise positioning in automation applications. Featuring a 90-degree swivel angle and a 40mm bore, known for its reliability and performance. Constructed from durable materials, the actuator operates efficiently under various pressure conditions, enhancing its suitability for industrial needs.

Features & Benefits

• Single-acting design ensures reliable operation
• Adjustable end positions enhance flexibility
• High torque output maximises performance in demanding tasks
• Pneumatic connection adheres to standard ISO 5211
• Robust construction guarantees durability and long service life

Applications

• Designed for valve automation in process control
• Ideal for requiring space-efficient rotary motion
• Suitable for use in environments with explosion hazards
• Effective in sectors such as chemicals, oil and gas

What operational pressures does this actuator support?

The actuator supports operational pressures ranging from 0.2 MPa to 0.8 MPa, equivalent to 2 bar to 8 bar, ensuring compatibility with various pneumatic systems.

How is the actuator's safety function implemented?

Its safety function is designed to switch to a defined safe position when the air supply is cut off and the spring chamber is exhausted, achieving safety compliance with recognised standards.

Can it operate in hostile environments?

Yes, it is certified for use in explosive zones and can operate between -20°C and +80°C, making it suitable for diverse industrial environments.

What is the expected service life of this actuator?

With a mean time to dangerous failure (MTTFd) of 1126 years, it is engineered for long-lasting performance, minimising maintenance needs.

What materials are used in its construction?

It features components made from anodised aluminium, high-alloy stainless steel, and NBR seals, ensuring durability and resistance to corrosion.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Rotary Angle	90
	Action	Single Acting with Return Spring
	Bore	40mm
	Manufacturer Series	DFPD
	Maximum Operating Pressure	8 bar
	Absolute Maximum Pressure	24bar
	Cushioning Type	Not Cushioned
	Port Connection	G 1/8
	Weight	2.2kg
	Size Type	Standard
	Model Number	8047636
	Series	DFPD

	Select all
	Brand Festo
	Rotary Angle 90
	Action Single Acting with Return Spring
	Bore 40mm
	Manufacturer Series DFPD
	Maximum Operating Pressure 8 bar
	Absolute Maximum Pressure 24bar
	Cushioning Type Not Cushioned
	Port Connection G 1/8
	Weight 2.2kg
	Size Type Standard
	Model Number 8047636
	Series DFPD
