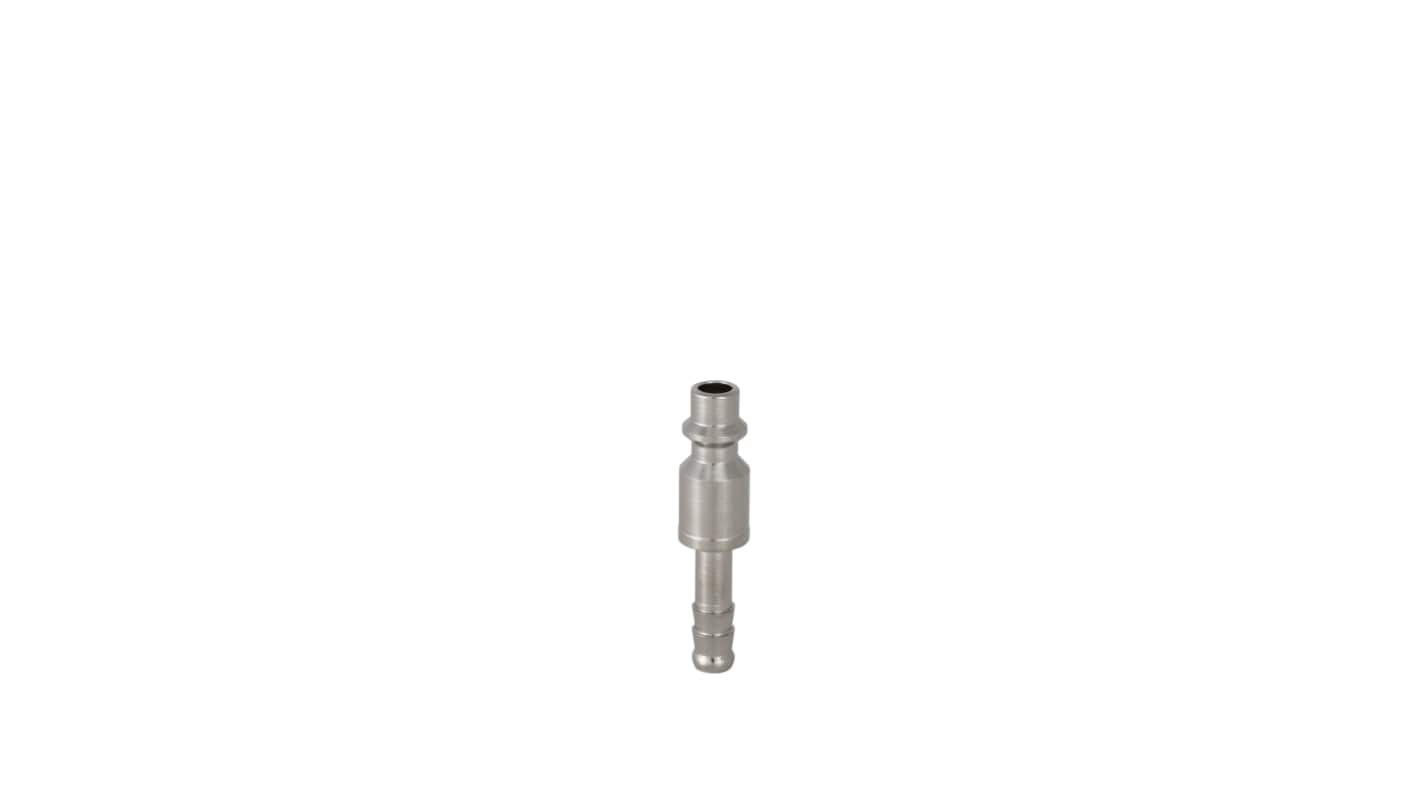

RS PRO Steel Pneumatic Quick Connect Coupling Female, Male 10mm
- RS Stock No.:
- 667-1888
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 pack of 5 units)*
PHP1,248.73
(exc. VAT)
PHP1,398.58
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 145 unit(s) ready to ship from another location
- Plus 400 unit(s) shipping from June 10, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 25 | PHP249.746 | PHP1,248.73 |
| 30 - 120 | PHP242.256 | PHP1,211.28 |
| 125 + | PHP199.378 | PHP996.89 |
*price indicative
- RS Stock No.:
- 667-1888
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Pneumatic Quick Connect Coupling | |
| Thread Size | Hose Barb | |
| Series | RECTUS 23 | |
| Hose Barb Connection | 10mm | |
| Material | Steel | |
| Thread Gender | Female, Male | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Pressure | 35 bar | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | CEJN 310, Forster, Hansen 3000, ISO 6150 B, Parker Legris 1/4, Rectus 23, TST 024 Atlas Copco QIC 08, US MIL 4109 1/4 | |
| Finish | Nickel | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Pneumatic Quick Connect Coupling | ||
Thread Size Hose Barb | ||
Series RECTUS 23 | ||
Hose Barb Connection 10mm | ||
Material Steel | ||
Thread Gender Female, Male | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Pressure 35 bar | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals CEJN 310, Forster, Hansen 3000, ISO 6150 B, Parker Legris 1/4, Rectus 23, TST 024 Atlas Copco QIC 08, US MIL 4109 1/4 | ||
Finish Nickel | ||
- COO (Country of Origin):
- TR
Series 23 Connectors, Single Shut Off Standard Types (C9000 ISO P6 Series)
Series 23 Connectors, Single Shut Off Standard Types (C9000 ISO P6 Series)
Ideally suited to applications which require high flow performance and reduced pressure loss. Compact body diameter. Standard Connectors and Self Venting Bodies both use Standard Series 23 Plugs. Maximum operating pressure 35 bar, temperature range -20°C to +100°C. Simple one hand disconnection. All are interchangeable with CEJN 310, Rectus 23 & 24 Series, Dynaquip DC3, US-Mil-Norm C4109 1/4in.
