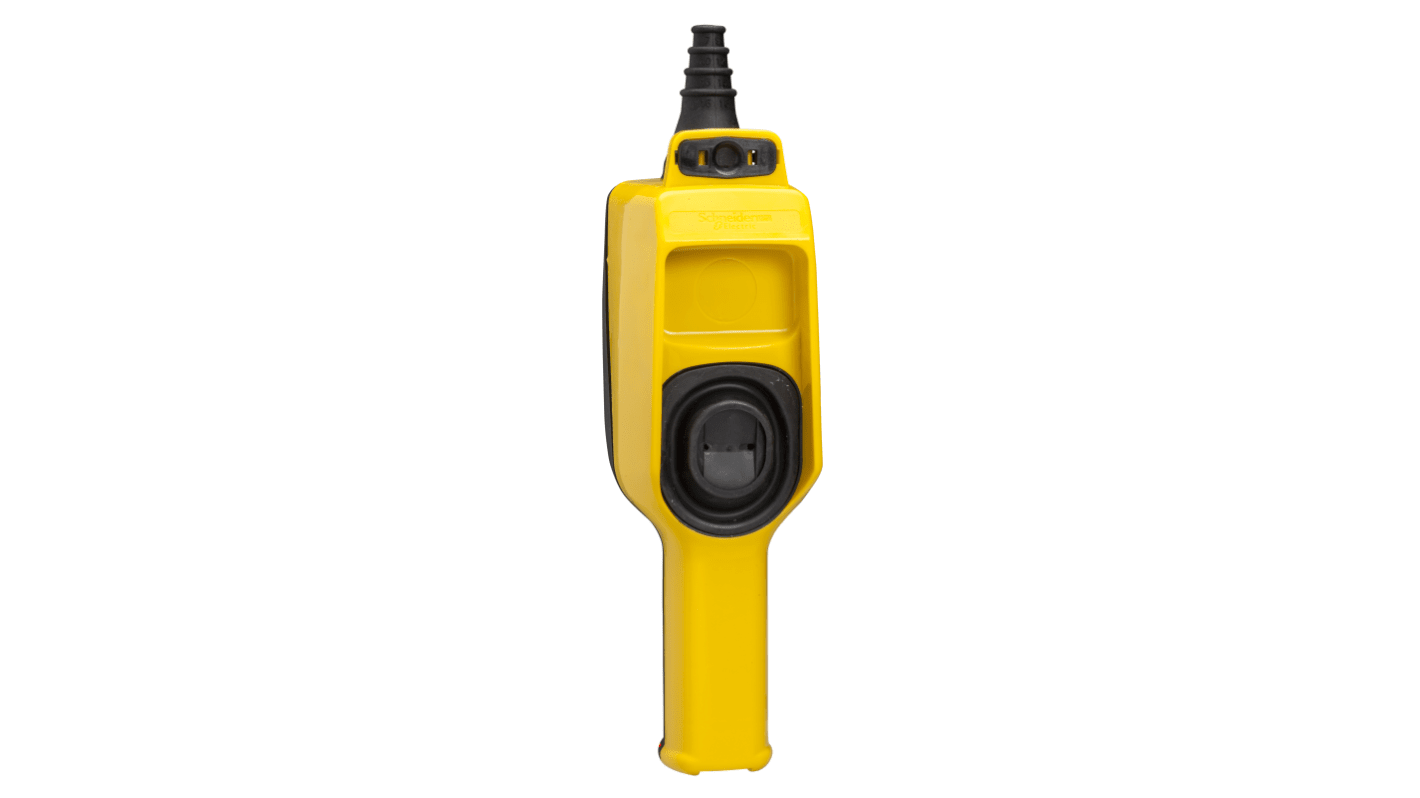

Schneider Electric Push Button Pendant Station Yellow Polypropylene
- RS Stock No.:
- 130-882
- Mfr. Part No.:
- XACD21P3111
- Manufacturer:
- Schneider Electric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 130-882
- Mfr. Part No.:
- XACD21P3111
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Push Button Pendant Station | |
| Cutout Diameter | 22mm | |
| IP Rating | IP65 | |
| Terminal Type | Screw Clamp | |
| Enclosure Material | Polypropylene | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Enclosure Colour | Yellow | |
| Number of Push Buttons | 1 | |
| Series | XACD21 | |
| Standards/Approvals | IEC 60204-32, IEC 60947-5-1, CSA C22.2 No 14, UL 508 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Push Button Pendant Station | ||
Cutout Diameter 22mm | ||
IP Rating IP65 | ||
Terminal Type Screw Clamp | ||
Enclosure Material Polypropylene | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Enclosure Colour Yellow | ||
Number of Push Buttons 1 | ||
Series XACD21 | ||
Standards/Approvals IEC 60204-32, IEC 60947-5-1, CSA C22.2 No 14, UL 508 | ||
- COO (Country of Origin):
- FR
The Schneider Electric pendant control station is designed to control single-speed hoist motors with ease and precision. With intuitive control type and double insulated enclosure material, it ensures safe and efficient operation in various industrial settings. The device is complete and ready for use, offering a reliable solution for motor control applications.
Double insulated for added safety
Intuitive for easy operation
Complete and ready for use
