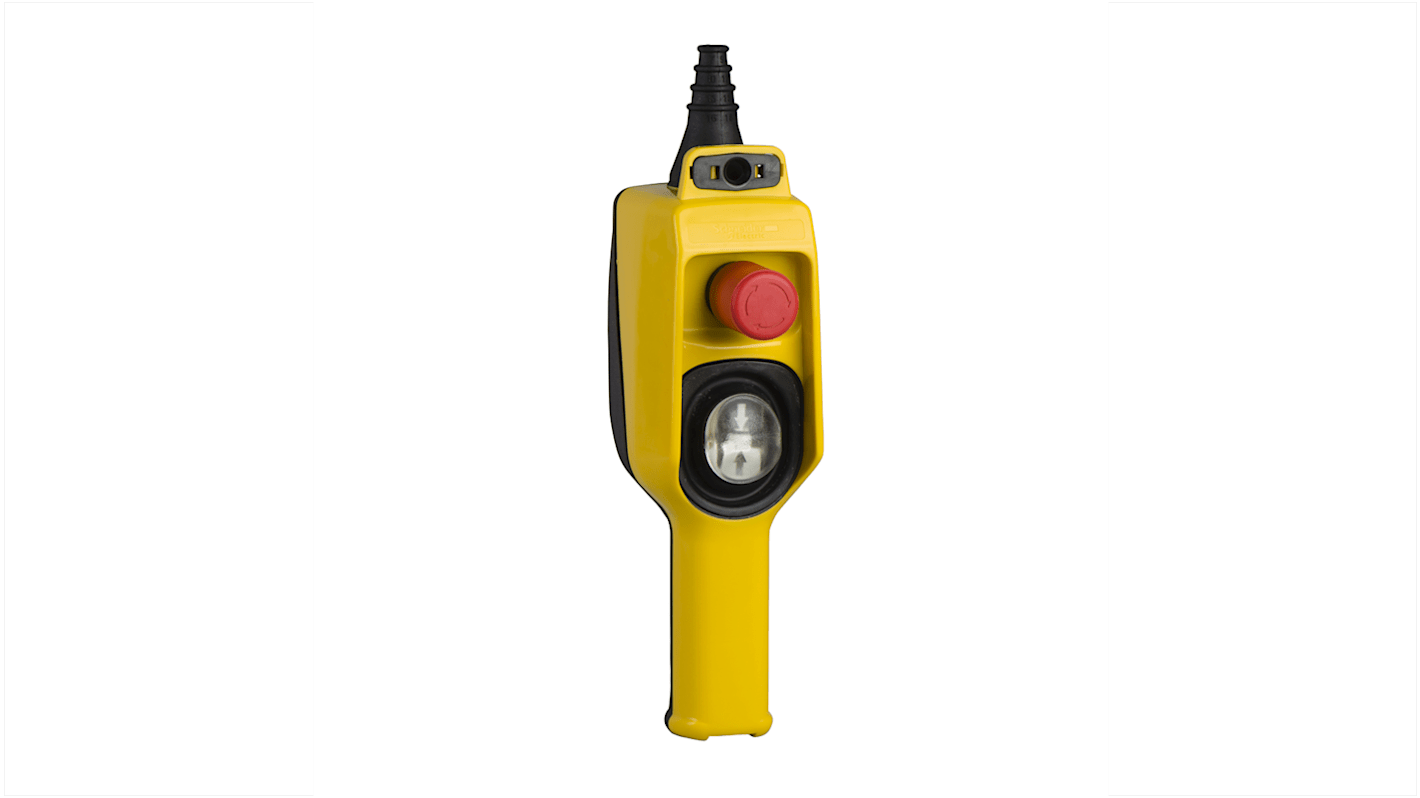

Schneider Electric 1 NC Push Button Pendant Station Yellow Polypropylene
- RS Stock No.:
- 130-391
- Mfr. Part No.:
- XACD22A0101
- Manufacturer:
- Schneider Electric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 130-391
- Mfr. Part No.:
- XACD22A0101
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Push Button Pendant Station | |
| Contact Configuration | 1 NC | |
| Cutout Diameter | 22mm | |
| IP Rating | IP65 | |
| Enclosure Material | Polypropylene | |
| Terminal Type | Screw Clamp | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Enclosure Colour | Yellow | |
| Number of Push Buttons | 1 | |
| Standards/Approvals | EN/IEC 60204-32, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1 | |
| Series | XACD22 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Push Button Pendant Station | ||
Contact Configuration 1 NC | ||
Cutout Diameter 22mm | ||
IP Rating IP65 | ||
Enclosure Material Polypropylene | ||
Terminal Type Screw Clamp | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Enclosure Colour Yellow | ||
Number of Push Buttons 1 | ||
Standards/Approvals EN/IEC 60204-32, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1 | ||
Series XACD22 | ||
- COO (Country of Origin):
- FR
The Schneider Electric pendant control station, is designed for intuitive control of single-speed hoist motors. With a durable polypropylene enclosure and mechanical interlocking feature, this control station is suitable for various industrial applications.
Double insulated control station with intuitive control type for easy operation
Complete ready-for-use enclosure with screw clamp terminals for easy installation
