Infineon HEXFET Type N-Channel MOSFET, 94 A, 200 V Enhancement, 3-Pin TO-247
- RS Stock No.:
- 913-3907
- Mfr. Part No.:
- IRFP90N20DPBF
- Manufacturer:
- Infineon

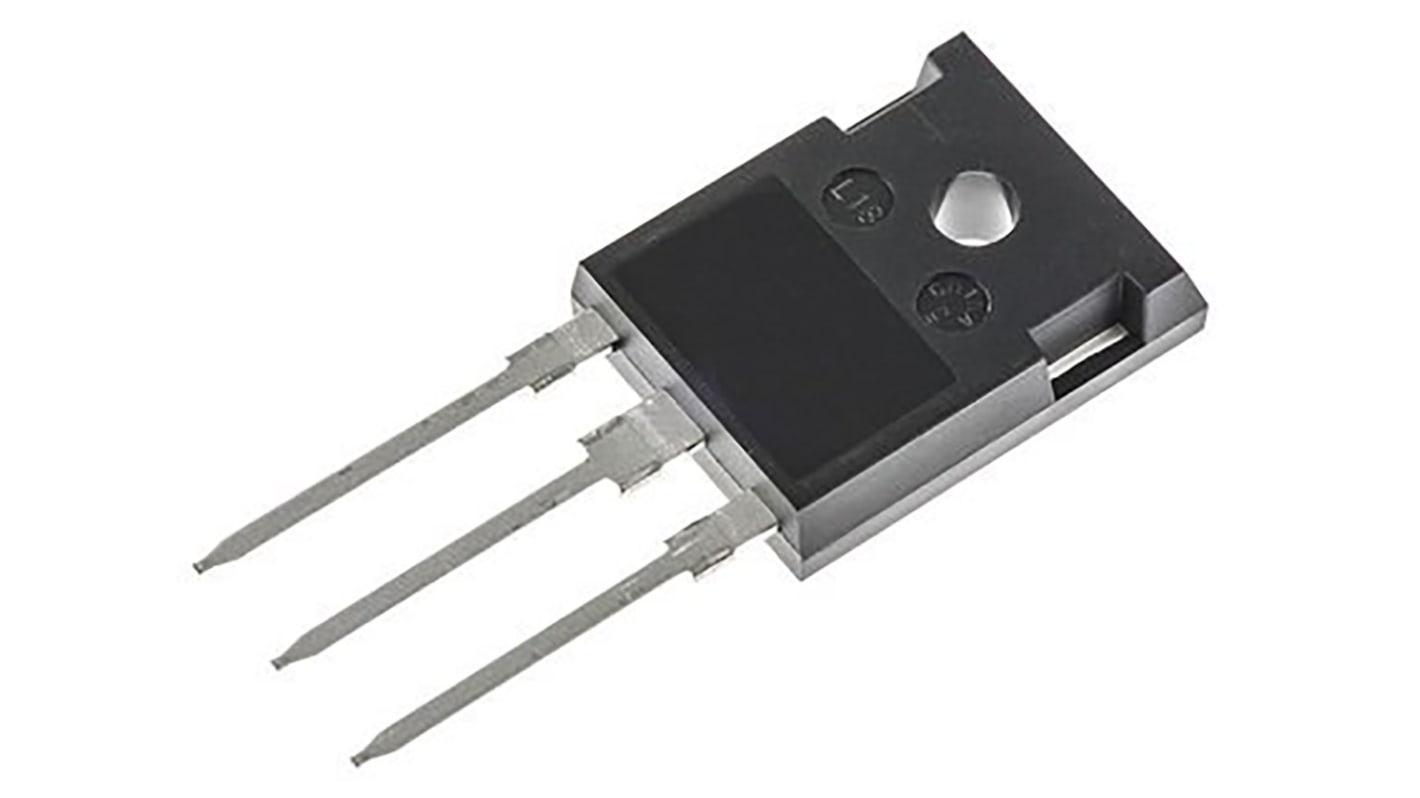

This image is representative of the product range
Subtotal (1 tube of 25 units)*
PHP5,850.60
(exc. VAT)
PHP6,552.675
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 50 unit(s) ready to ship from another location
- Plus 300 unit(s) shipping from January 01, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tube* |
|---|---|---|
| 25 + | PHP234.024 | PHP5,850.60 |
*price indicative
- RS Stock No.:
- 913-3907
- Mfr. Part No.:
- IRFP90N20DPBF
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 94A | |
| Maximum Drain Source Voltage Vds | 200V | |
| Series | HEXFET | |
| Package Type | TO-247 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 23mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 1.5V | |
| Maximum Power Dissipation Pd | 580W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 30 V | |
| Typical Gate Charge Qg @ Vgs | 180nC | |
| Maximum Operating Temperature | 175°C | |
| Height | 20.3mm | |
| Width | 5.3 mm | |
| Standards/Approvals | No | |
| Length | 15.9mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 94A | ||
Maximum Drain Source Voltage Vds 200V | ||
Series HEXFET | ||
Package Type TO-247 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 23mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 1.5V | ||
Maximum Power Dissipation Pd 580W | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 30 V | ||
Typical Gate Charge Qg @ Vgs 180nC | ||
Maximum Operating Temperature 175°C | ||
Height 20.3mm | ||
Width 5.3 mm | ||
Standards/Approvals No | ||
Length 15.9mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MX
N-Channel Power MOSFET 150V to 600V, Infineon
Infineon's range of discrete HEXFET® power MOSFETs includes N-channel devices in surface mount and leaded packages and form factors that can address almost any board layout and thermal design challenge. Across the range benchmark on resistance drives down conduction losses, allowing designers to deliver optimum system efficiency.
MOSFET Transistors, Infineon
Infineon offers a large and comprehensive portfolio of MOSFET devices which includes the CoolMOS, OptiMOS and StrongIRFET families. They deliver best-in-class performance to bring more efficiency, power density and cost effectiveness. Designs requiring high quality and enhanced protection features benefit from AEC-Q101 industry standards Automotive qualified MOSFETs.
