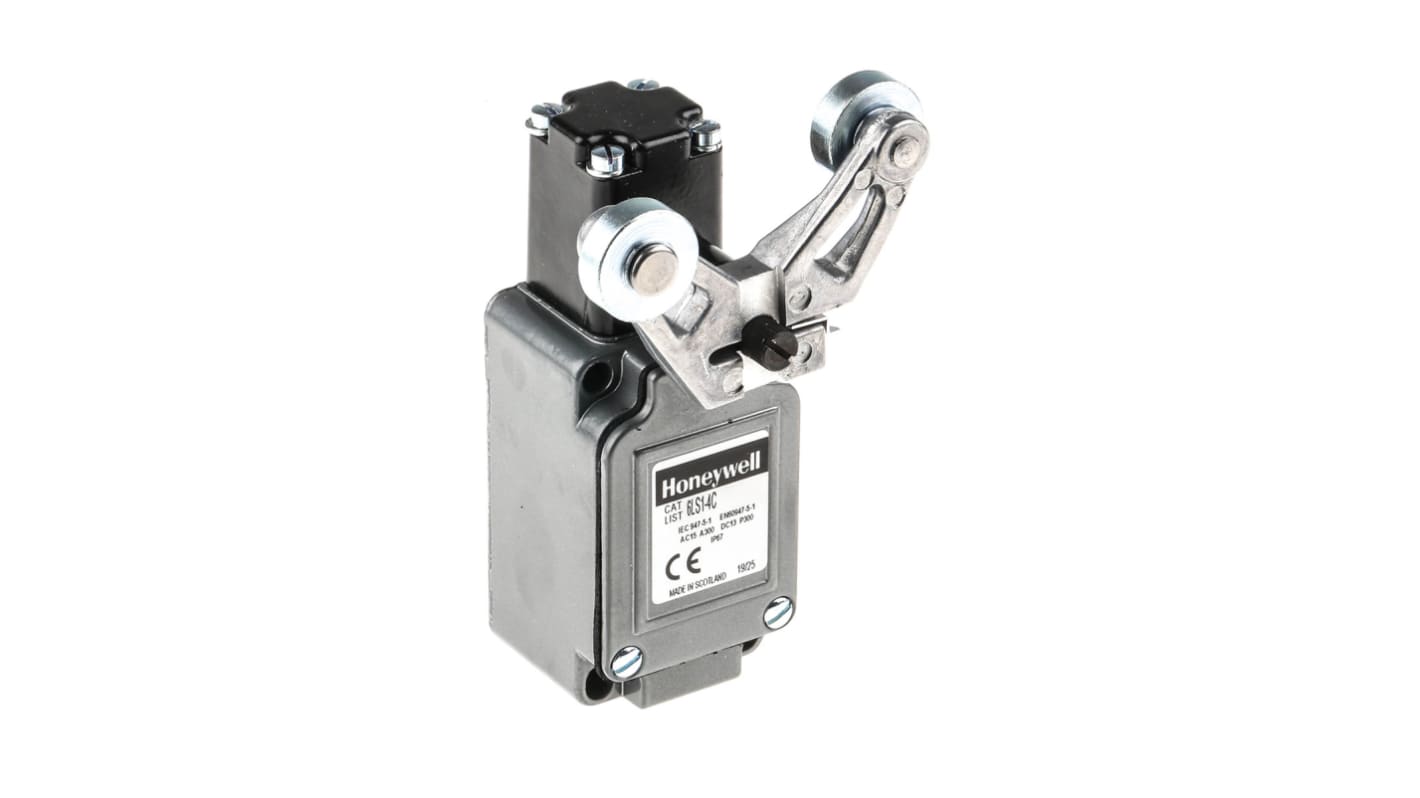

Honeywell Technologies LS Series Fork Roller Lever Limit Switch, SPDT, IP67, Die Cast Zinc Housing, 240V ac, 6A

RS Stock No.:: 246-3122
Distrelec Article No.:: 301-38-626
Mfr. Part No.:: 6LS1-4C
Manufacturer:: Honeywell Technologies

Honeywell Technologies LS Series Fork Roller Lever Limit Switch, SPDT, IP67, Die Cast Zinc Housing, 240V ac, 6A

Subtotal (1 unit)*

PHP61,402.69

(exc. VAT)

PHP68,771.01

(inc. VAT)

FREE delivery for orders over ₱5,000.00

In Stock

Plus 8 unit(s) shipping from November 02, 2026
Plus 25 unit(s) shipping from December 07, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP61,402.69

*price indicative

RS Stock No.:: 246-3122
Distrelec Article No.:: 301-38-626
Mfr. Part No.:: 6LS1-4C
Manufacturer:: Honeywell Technologies

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell Technologies
	Actuator Type	Fork Roller Lever
	Product Type	Limit Switch
	IP Rating	IP67
	Contact Configuration	SPDT
	Housing Material	Die Cast Zinc
	Contact Type	Double Break
	Terminal Type	Screw
	Switching Current	6A
	Series	LS
	Minimum Operating Temperature	-29°C
	Switching AC Voltage	240V ac
	Switching DC Voltage	250V dc
	Maximum Operating Temperature	71°C
	Depth	91.4mm
	Width	48.8mm
	Length	116.6mm
	Standards/Approvals	EN 60947-5-1, CE Certified, IEC 60947-5-1
	Hazardous Area Certification	No
	Mounting Orientation	Panel
	Conduit Entry	20 mm
	Operating Force	0.33Nm

	Select all
	Brand Honeywell Technologies
	Actuator Type Fork Roller Lever
	Product Type Limit Switch
	IP Rating IP67
	Contact Configuration SPDT
	Housing Material Die Cast Zinc
	Contact Type Double Break
	Terminal Type Screw
	Switching Current 6A
	Series LS
	Minimum Operating Temperature -29°C
	Switching AC Voltage 240V ac
	Switching DC Voltage 250V dc
	Maximum Operating Temperature 71°C
	Depth 91.4mm
	Width 48.8mm
	Length 116.6mm
	Standards/Approvals EN 60947-5-1, CE Certified, IEC 60947-5-1
	Hazardous Area Certification No
	Mounting Orientation Panel
	Conduit Entry 20 mm
	Operating Force 0.33Nm

COO (Country of Origin):: GB

Honeywell Series LS Limit Switch, 20mm Conduit Entry, SPDT Contact Configuration - 6LS1-4C

This limit switch is a rugged mechanical position sensor designed for industrial control and automation tasks, delivering reliable open/closed signalling when actuated by moving parts. It is configured with a fork roller lever actuator and intended for panel mounting with a conduit entry for secure wiring.

Features and Benefits:

• SPDT double-break contacts provide clear single-pole switching capability
• Rated switching current of 6A supports moderate load circuits
• Accepts up to 250V DC switching for DC control applications
• IP67 enclosure prevents ingress in wet or dusty environments
• Die-cast zinc housing offers sturdy mechanical protection
• Operating temperature range from -29 to 71°C enables harsh environment use

Applications

• Suitable for conveyor end-of-travel detection in manufacturing lines
• Ideal for machine guard position sensing in assembly plants
• Used for automated valve position feedback in process systems
• Can be used for safety interlock detection on access panels
• Used with motor starters for limit-based motor shutdown

What wiring method does it use for connections?

Connections are MADE via screw terminals designed for secure conductor clamping and straightforward field termination.

How is the unit mounted in control panels?

The device is designed for panel mounting and includes a 20mm conduit entry to route cables into the enclosure.

What mechanical force is required to operate the actuator?

The actuator requires an operating torque of 0.33 Nm to trigger the switching mechanism.

Which standards apply to its electrical performance?

Its construction and switching behaviour are aligned with relevant IEC/EN switching standards for industrial control devices.

Note

See ’Key characteristics’ table for details of contact rating

Approvals

UL; CSA

Standards

EN60947-5-1, IEC947-5-1, AC15, A300 or A600 , DC13, Q300
