Honeywell LS Series Fixed Lever Limit Switch, SPDT, IP67, Die Cast Zinc Housing, 480 V ac, 10 A

RS Stock No.:: 217-7108
Distrelec Article No.:: 301-38-488
Mfr. Part No.:: 1LS1-4PG
Manufacturer:: Honeywell

Honeywell LS Series Fixed Lever Limit Switch, SPDT, IP67, Die Cast Zinc Housing, 480 V ac, 10 A

Subtotal (1 unit)*

PHP15,291.52

(exc. VAT)

PHP17,126.50

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

8 unit(s) ready to ship from another location
Plus 25 unit(s) shipping from April 03, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP15,291.52

*price indicative

RS Stock No.:: 217-7108
Distrelec Article No.:: 301-38-488
Mfr. Part No.:: 1LS1-4PG
Manufacturer:: Honeywell

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Actuator Type	Fixed Lever
	Product Type	Limit Switch
	Contact Configuration	SPDT
	IP Rating	IP67
	Housing Material	Die Cast Zinc
	Contact Type	Snap Action
	Switching Current	10 A
	Terminal Type	Terminal Block
	Series	LS
	Switching DC Voltage	550 V dc
	Switching AC Voltage	480 V ac
	Minimum Operating Temperature	30°C
	Maximum Operating Temperature	120°C
	Width	3.45 in
	Standards/Approvals	EN60947-5-41, IEC60947-5-4, CE, UL file 12252, CSA file 57325
	Length	38.1mm
	Depth	4.59in
	Hazardous Area Certification	No
	Conduit Entry	0.5 to 14 NPT
	Mounting Orientation	Side
	Operating Force	0.51N

	Select all
	Brand Honeywell
	Actuator Type Fixed Lever
	Product Type Limit Switch
	Contact Configuration SPDT
	IP Rating IP67
	Housing Material Die Cast Zinc
	Contact Type Snap Action
	Switching Current 10 A
	Terminal Type Terminal Block
	Series LS
	Switching DC Voltage 550 V dc
	Switching AC Voltage 480 V ac
	Minimum Operating Temperature 30°C
	Maximum Operating Temperature 120°C
	Width 3.45 in
	Standards/Approvals EN60947-5-41, IEC60947-5-4, CE, UL file 12252, CSA file 57325
	Length 38.1mm
	Depth 4.59in
	Hazardous Area Certification No
	Conduit Entry 0.5 to 14 NPT
	Mounting Orientation Side
	Operating Force 0.51N

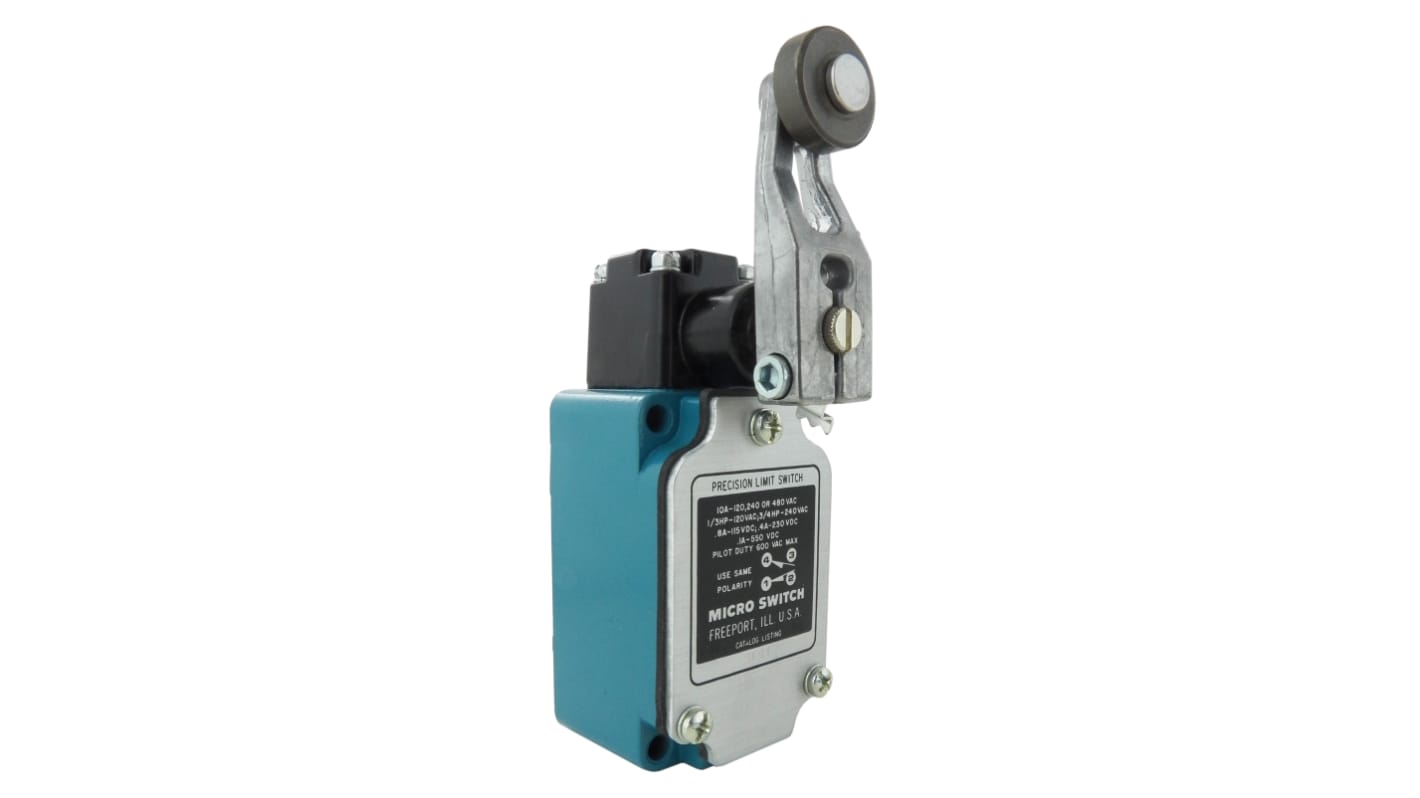

Honeywell Snap-Action Roller Lever Limit Switch, NC/NO, 480V AC - LS Series - 1LS1-4PG

This limit switch from Honeywell is a hardwearing option for use in harsh environments. Thanks to its epoxy-coated, die-cast zinc housing, this sensory device offers reliable impact and corrosion resistance, so it can stand up to harsh environmental conditions. It's also effectively sealed and has an IP67 (ingress protection) rating, so it's resistant to dust and temporary submersion in water for use in damp or dusty environments.

This general-purpose limit switch has a compact design that makes it suitable for use in confined spaces. It's commonly found in production lines and factories.

Features & Benefits

• Double break contacts give you control of two circuits with one switch for added versatility

• Wide operating temperature range of -29°C to +120°C for use in harsh environments

• Maximum current consumption of 10A for optimal energy efficiency

• Snap-action mechanism for fast response times

Applications

• Valve actuation

• Food and beverage production facilities

• Machine tooling equipment

How does an actuator work?

An actuator is a device that's designed to convert an electrical signal into mechanical motion. It's an integral part of a limit switch like this one.
