Schurter IEC Straight Panel Mount IEC Connector, 294V Female, 8.8A
- RS Stock No.:
- 189-4739
- Mfr. Part No.:
- 3-101-785
- Manufacturer:
- Schurter

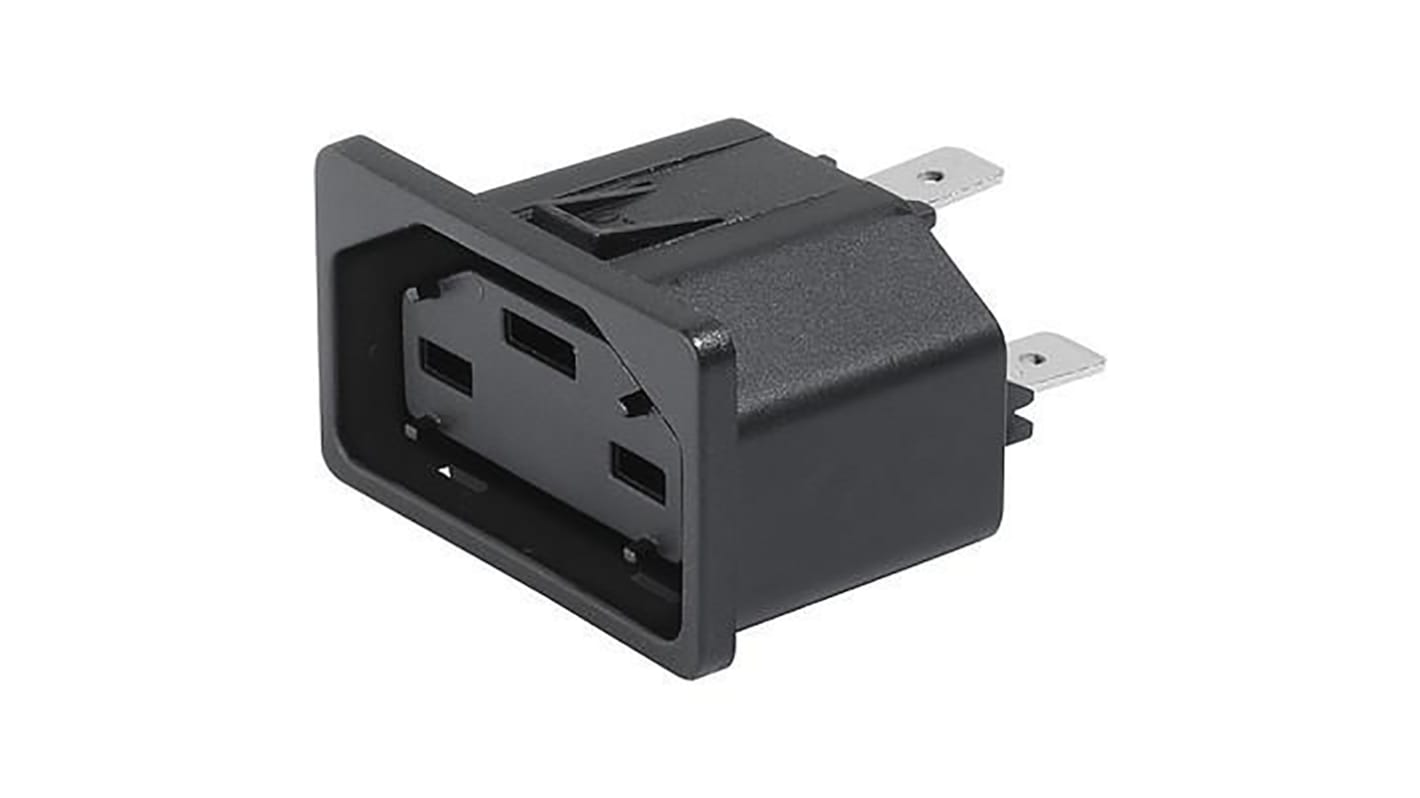

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (50 units, in boxes of 50)*
PHP11,380.45
(exc. VAT)
PHP12,746.10
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Temporarily out of stock
- Shipping from December 28, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 50 - 200 | PHP227.609 | PHP11,380.45 |
| 250 + | PHP204.849 | PHP10,242.45 |
*price indicative
- RS Stock No.:
- 189-4739
- Mfr. Part No.:
- 3-101-785
- Manufacturer:
- Schurter
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| IEC Connector Type | IEC | |
| Product Type | IEC Connector | |
| Mount Type | Panel Mount | |
| Current | 8.8A | |
| Orientation | Straight | |
| Connector Gender | Female | |
| Voltage | 294V | |
| Termination Type | Solder | |
| Rewireable | Yes | |
| Contact Gender | Female | |
| Maximum Cable Diameter | 9.2mm | |
| Standards/Approvals | VDE, UL Subject 2695, IEC TS 62735-1, UL, IEC/UL 60950 | |
| Shuttered | No | |
| Series | GS21 | |
| Select all | ||
|---|---|---|
Brand Schurter | ||
IEC Connector Type IEC | ||
Product Type IEC Connector | ||
Mount Type Panel Mount | ||
Current 8.8A | ||
Orientation Straight | ||
Connector Gender Female | ||
Voltage 294V | ||
Termination Type Solder | ||
Rewireable Yes | ||
Contact Gender Female | ||
Maximum Cable Diameter 9.2mm | ||
Standards/Approvals VDE, UL Subject 2695, IEC TS 62735-1, UL, IEC/UL 60950 | ||
Shuttered No | ||
Series GS21 | ||
- COO (Country of Origin):
- CN
IEC Socket-Outlet 400 VDC, Snap-in Mounting, Front Side, Quick-connect or PCB Terminals.
Panel mount: Snap-in version from front side
Socket-Outlet,, Protection class I
Quick Connect or PCB Terminals
Hot plug rated for disconnecting under load up to 2.6 kW
Ideal for compact PDU applications with an operating temperature up to 105 °C
Compatible with cord retention system
