Bulgin, 6000, LC Multimode Duplex Fibre Optic Connector, OM1, 0.2dB Insertion Loss
- RS Stock No.:
- 191-7989
- Mfr. Part No.:
- PXF6052B
- Manufacturer:
- Bulgin

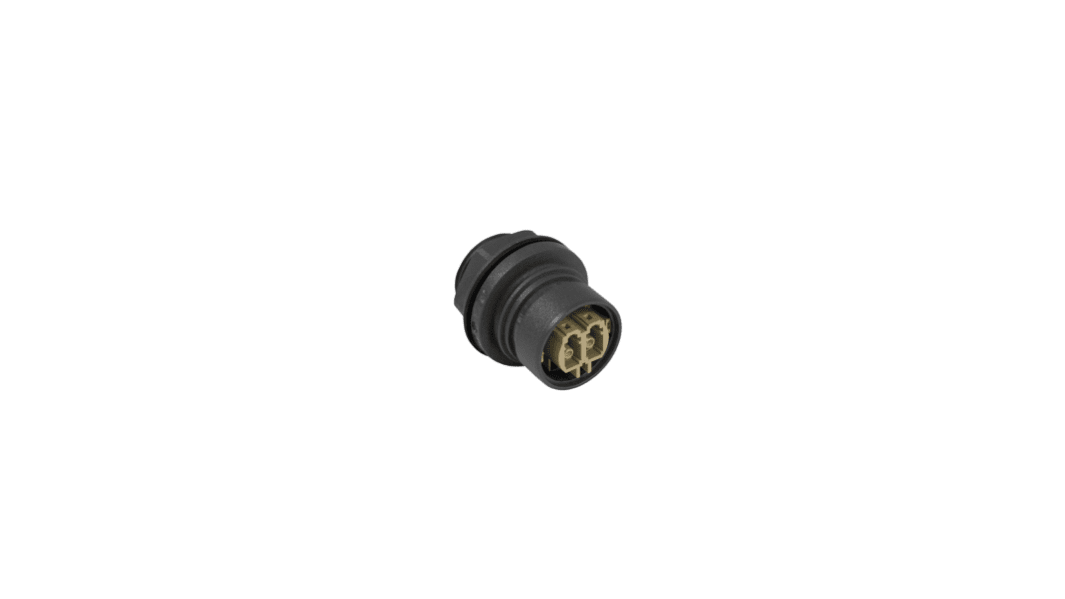

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (5 units, in bags of 5)*
PHP7,935.60
(exc. VAT)
PHP8,887.85
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Temporarily out of stock
- Shipping from December 29, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* |
|---|---|---|
| 5 - 20 | PHP1,587.12 | PHP7,935.60 |
| 25 + | PHP1,428.404 | PHP7,142.02 |
*price indicative
- RS Stock No.:
- 191-7989
- Mfr. Part No.:
- PXF6052B
- Manufacturer:
- Bulgin
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Product Type | Fibre Optic Connector | |
| Series | 6000 | |
| Connector Type | LC | |
| Single/Multimode | Multimode | |
| Simplex/Duplex | Duplex | |
| Insertion Loss | 0.2dB | |
| Buffer Diameter | 0.85mm | |
| Jacket Diameter | 2mm | |
| Optical Fibre Type | OM1 | |
| Colour | Aqua, Yellow, Orange | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC60794-2-50, IEC 61753-1, RoHS, IP66, IEC 60793-2-10, YD/T1258.2, EN60068-2-52 Test Kb Salt Mist, ITU-T G.657, EN60529:1992+A2:2013, IP69K, DIN40050-9, IP68 | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Product Type Fibre Optic Connector | ||
Series 6000 | ||
Connector Type LC | ||
Single/Multimode Multimode | ||
Simplex/Duplex Duplex | ||
Insertion Loss 0.2dB | ||
Buffer Diameter 0.85mm | ||
Jacket Diameter 2mm | ||
Optical Fibre Type OM1 | ||
Colour Aqua, Yellow, Orange | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC60794-2-50, IEC 61753-1, RoHS, IP66, IEC 60793-2-10, YD/T1258.2, EN60068-2-52 Test Kb Salt Mist, ITU-T G.657, EN60529:1992+A2:2013, IP69K, DIN40050-9, IP68 | ||
- COO (Country of Origin):
- CN
Cabled Versions: 0S1, 0M1, 0M3
Cable range from 5 to 450M
Diameter over coupling ring 32.0mm
Flex, Flex In-Line and Rear Panel
Secure, proven locking system
30o twist locking. Tamperproof lock prevents accidental un-mating
All plastic body version: UV stable, halogen free Light-weight, self-extinguishing material suitable for long-term outdoor use.
Sealing caps available
Rear Panel Mount Fiber Connector
no cable options, or pre-terminated 1M available
Duplex LC type fiber connector
Choices of OS1, OM1 and OM3 cables for single or multimode
PXP6081 Sealing Cap available separately
Mate with flex fiber connector PXF6051
