Vent-Axia TX9WW T Series Square Window Extractor Fan, 795 m³/h, 43 dBA, Duct Size 225 mm
- RS Stock No.:
- 272-154
- Mfr. Part No.:
- TX9WW
- Manufacturer:
- Vent-Axia
This image is representative of the product range
Subtotal (1 unit)*
PHP70,915.27
(exc. VAT)
PHP79,425.10
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP70,915.27 |
*price indicative
- RS Stock No.:
- 272-154
- Mfr. Part No.:
- TX9WW
- Manufacturer:
- Vent-Axia
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vent-Axia | |
| Fan Type | Extractor | |
| Product Type | Extractor Fan | |
| Air Flow | 795m³/h | |
| Noise Level | 43dBA | |
| Mount Type | Window | |
| Power Consumption | 85W | |
| Installation Depth | 150mm | |
| Face Height | 302mm | |
| Face Width | 304mm | |
| Standards/Approvals | No | |
| Supply Voltage | 230V ac | |
| Duct Size | 225 mm | |
| Series | T Series | |
| Configuration | Square | |
| Select all | ||
|---|---|---|
Brand Vent-Axia | ||
Fan Type Extractor | ||
Product Type Extractor Fan | ||
Air Flow 795m³/h | ||
Noise Level 43dBA | ||
Mount Type Window | ||
Power Consumption 85W | ||
Installation Depth 150mm | ||
Face Height 302mm | ||
Face Width 304mm | ||
Standards/Approvals No | ||
Supply Voltage 230V ac | ||
Duct Size 225 mm | ||
Series T Series | ||
Configuration Square | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB

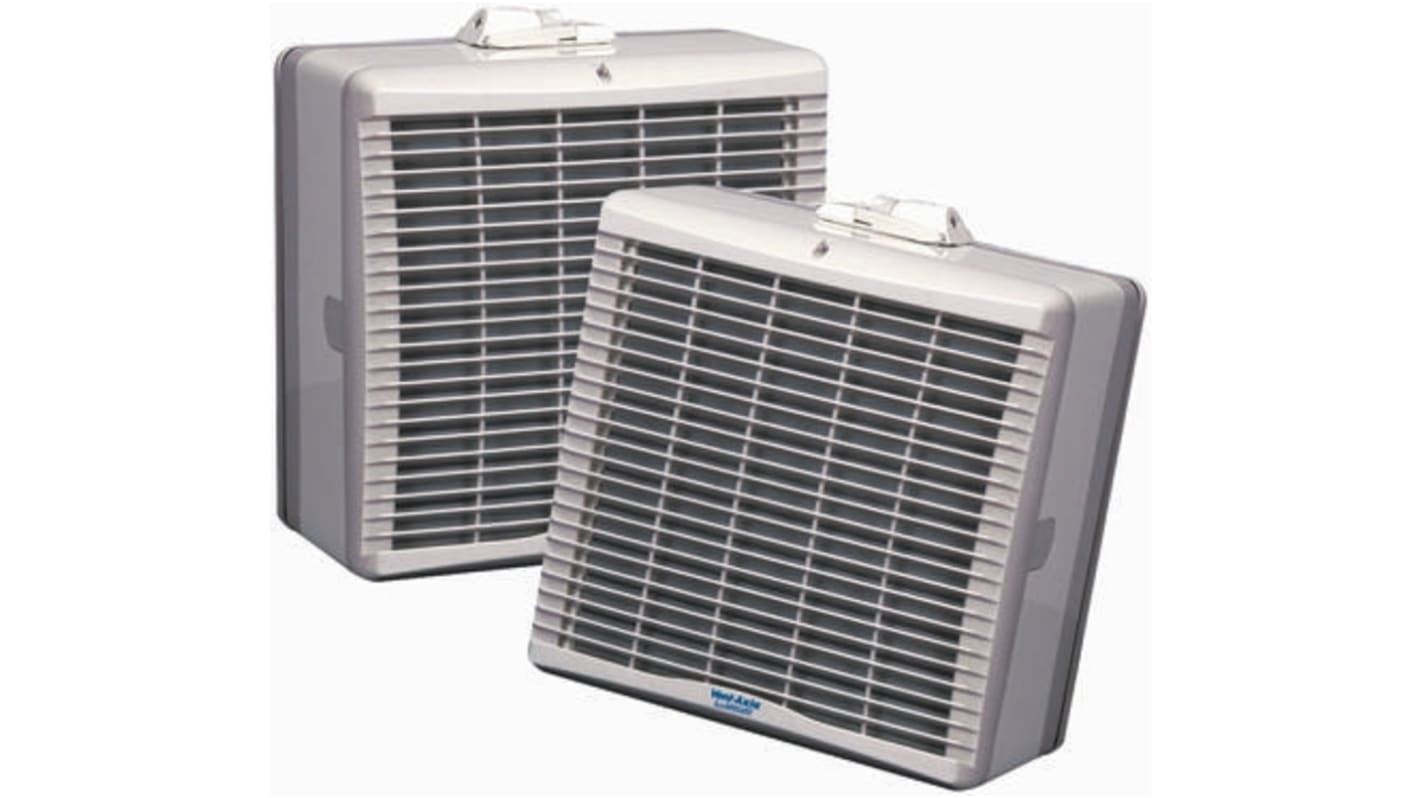

Square Design Window Fans
High performance extract/intake fans for use in single and double glazing, and most types of materials up to 32mm thick. A unique speed control pack enables high, medium or low speeds to be preset to suit room size or specific requirements.
Can be mounted at any angle
Low density 5 blade impeller
Operating temperature range -40 to +50°C
Quiet running motor with overload protection
No special tools required to dismantle
Made in weather resistant polymeric materials
6in. fan BEAB approved for residential use
230 Vac mains powered.
