Vent-Axia Lo-Carbon Svara Svara Round Wall Mounted, Window Mounted Extractor Fan, 17 → 20dB(A), 3 Speed,
- RS Stock No.:
- 921-1672
- Mfr. Part No.:
- Lo-Carbon Svara
- Manufacturer:
- Vent-Axia
Subtotal (1 unit)*
PHP17,108.83
(exc. VAT)
PHP19,161.89
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP17,108.83 |
*price indicative
- RS Stock No.:
- 921-1672
- Mfr. Part No.:
- Lo-Carbon Svara
- Manufacturer:
- Vent-Axia
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vent-Axia | |
| Fan Type | Extractor | |
| Function | Extraction | |
| Noise Level | 17 → 20dB(A) | |
| Mounting | Wall Mounted, Window Mounted | |
| Face Diameter | 177mm | |
| Depth | 81mm | |
| Supply Voltage | 230 V ac | |
| Duct Size | 150mm | |
| Series | Svara | |
| Configuration | Round | |
| Special Features | 3 Speed, Bluetooth Control, Continuous or Intermittent, Humidistat and Timer, IP44 | |
| Select all | ||
|---|---|---|
Brand Vent-Axia | ||
Fan Type Extractor | ||
Function Extraction | ||
Noise Level 17 → 20dB(A) | ||
Mounting Wall Mounted, Window Mounted | ||
Face Diameter 177mm | ||
Depth 81mm | ||
Supply Voltage 230 V ac | ||
Duct Size 150mm | ||
Series Svara | ||
Configuration Round | ||
Special Features 3 Speed, Bluetooth Control, Continuous or Intermittent, Humidistat and Timer, IP44 | ||
- COO (Country of Origin):
- SE

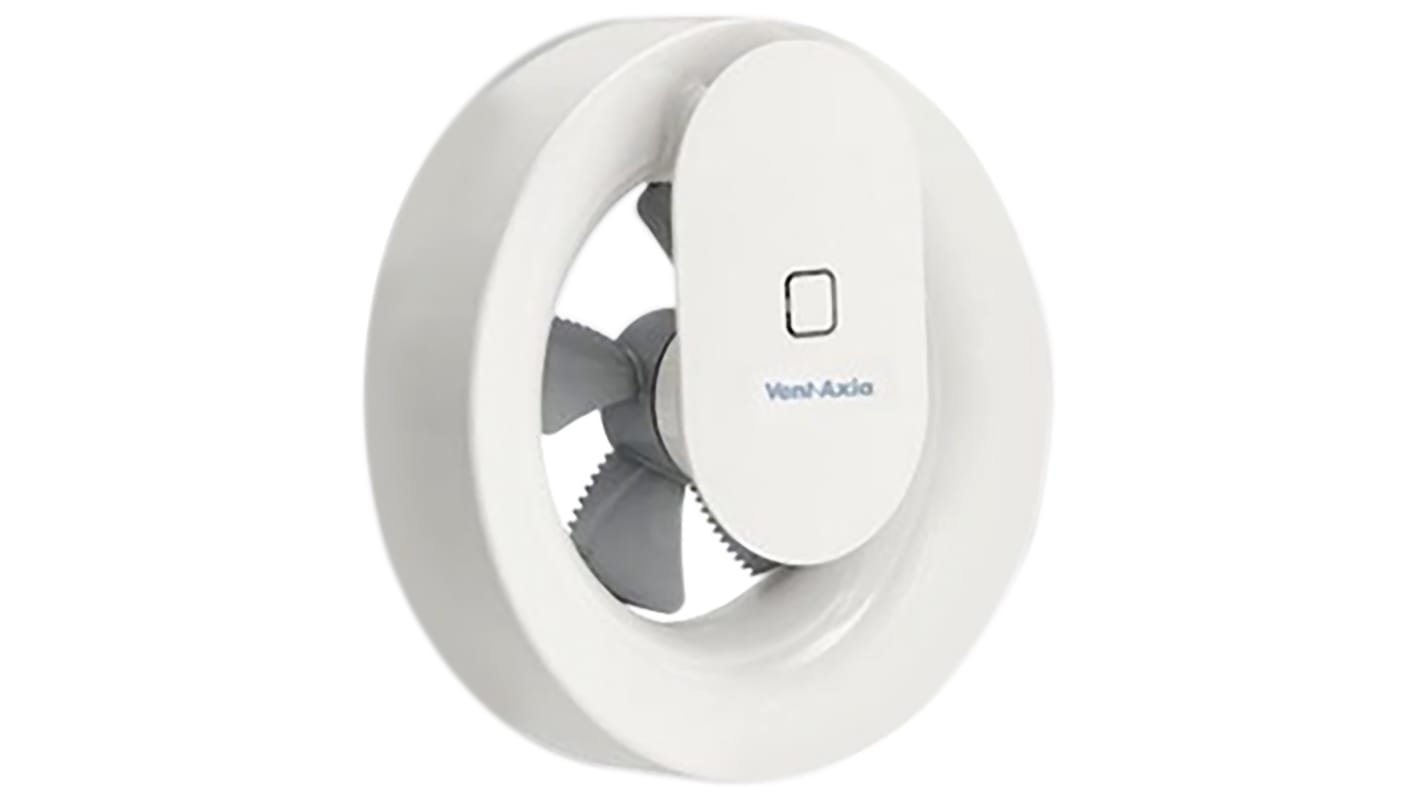

Vent-Axia Lo-Carbon Svara Extractor Fan
The Vent-Axia Svara is a quiet running kitchen and bathroom extractor fan with Bluetooth, presence detection and a humidistat.
For electricians, installation is made simple by the use of Svara Bluetooth application for remote configuration and operation. The following settings can be remotely configured: Intermittent or continuous ventilation, humidity triggering or whether the overrun timer is required.
Remote configuring via Bluetooth and a dedicated app eliminates the need to adjust switches and jumpers inside each fan.
The Vent-Axia Svara is programmed to operate in most installations. It is set by default to operate continuously at trickle flow of 10l/s.
The Svara is quiet running, at just 17 dBA on low trickle and at only 4 W, is very energy efficient. It is also easy to clean as the central module disconnects the motor from the rest of the fan and wiped with a soft cloth.
For electricians, installation is made simple by the use of Svara Bluetooth application for remote configuration and operation. The following settings can be remotely configured: Intermittent or continuous ventilation, humidity triggering or whether the overrun timer is required.
Remote configuring via Bluetooth and a dedicated app eliminates the need to adjust switches and jumpers inside each fan.
The Vent-Axia Svara is programmed to operate in most installations. It is set by default to operate continuously at trickle flow of 10l/s.
The Svara is quiet running, at just 17 dBA on low trickle and at only 4 W, is very energy efficient. It is also easy to clean as the central module disconnects the motor from the rest of the fan and wiped with a soft cloth.
Features and Benefits
Bluetooth remote configuration and control via the app
Quiet operation
Continuous or intermittent operation
Intelligent light sensor for presence detection with overrun timer - allows replacement of a basic model fan
3 Speed
Overrun timer
Humidistat
Silent scheduling and automatic cycles
One model for all applications
Silent and purge modes available
Silent hours scheduling function
Diameter: 177 mm
Low trickle: 10 l/s
High trickle 19 l/s
Boost: 30 l/s
Max. Wattage: 4W
Sound @3m: 17 - 20 dB(A)
SFP: (W/l/s): 0.13
IP44 Rated motor with 5 year guarantee
Minimum system requirements: Apple devices running iOS 7 or higher or Android OS 4.3 with support for Bluetooth 4
Quiet operation
Continuous or intermittent operation
Intelligent light sensor for presence detection with overrun timer - allows replacement of a basic model fan
3 Speed
Overrun timer
Humidistat
Silent scheduling and automatic cycles
One model for all applications
Silent and purge modes available
Silent hours scheduling function
Diameter: 177 mm
Low trickle: 10 l/s
High trickle 19 l/s
Boost: 30 l/s
Max. Wattage: 4W
Sound @3m: 17 - 20 dB(A)
SFP: (W/l/s): 0.13
IP44 Rated motor with 5 year guarantee
Minimum system requirements: Apple devices running iOS 7 or higher or Android OS 4.3 with support for Bluetooth 4
