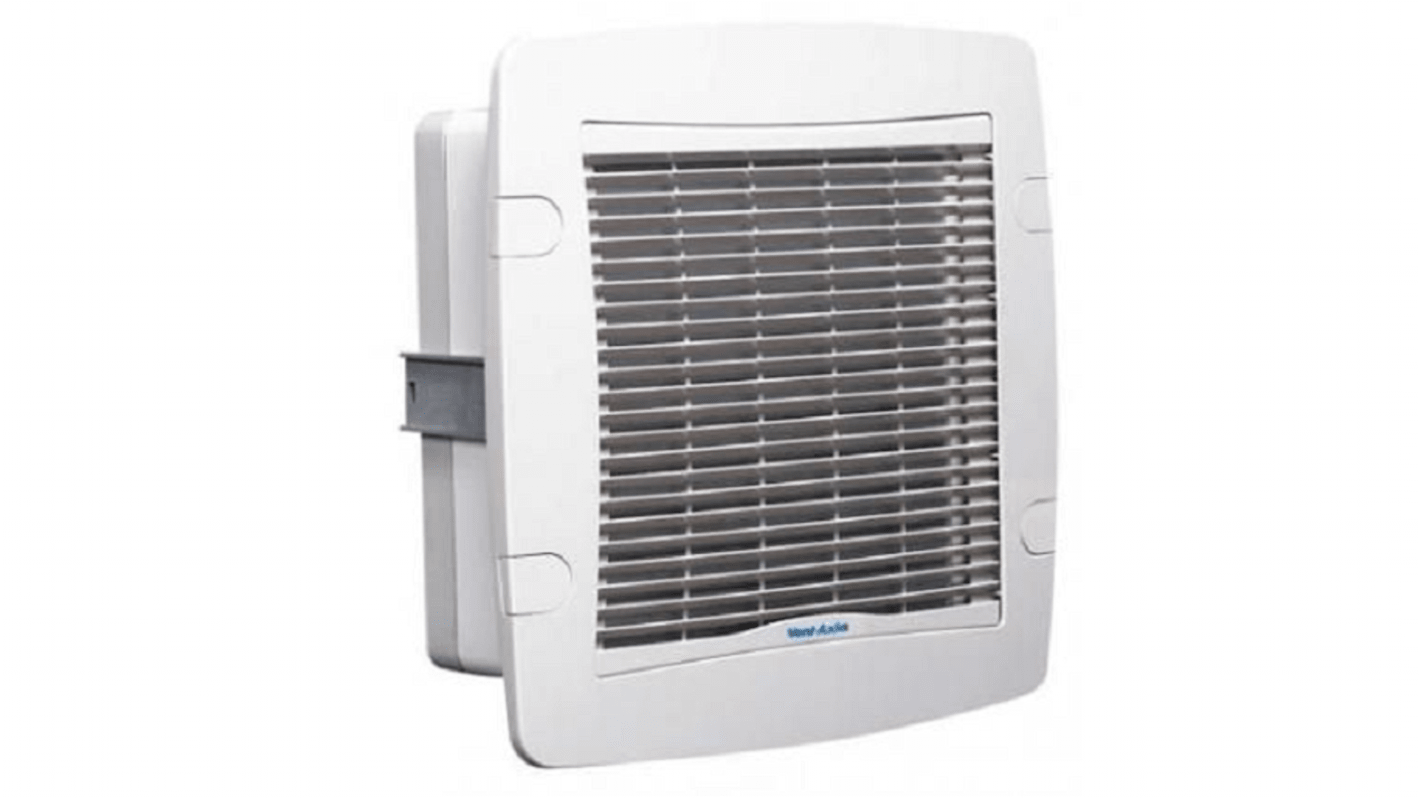

Vent-Axia TX9PL T Series Rectangular Ceiling, Panel Extractor Fan, 43 dBA, Duct Size 225 mm
- RS Stock No.:
- 241-4978
- Mfr. Part No.:
- TX9PL
- Manufacturer:
- Vent-Axia
Subtotal (1 unit)*
PHP74,386.71
(exc. VAT)
PHP83,313.12
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP74,386.71 |
*price indicative
- RS Stock No.:
- 241-4978
- Mfr. Part No.:
- TX9PL
- Manufacturer:
- Vent-Axia
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vent-Axia | |
| Fan Type | Panel | |
| Product Type | Extractor Fan | |
| Noise Level | 43dBA | |
| Mount Type | Ceiling, Panel | |
| Colour | Grey | |
| Power Consumption | 85W | |
| Installation Depth | 129mm | |
| Face Height | 388mm | |
| Face Width | 391mm | |
| Standards/Approvals | RoHS | |
| Supply Voltage | 240V | |
| Duct Size | 225 mm | |
| Series | T Series | |
| Configuration | Rectangular | |
| Select all | ||
|---|---|---|
Brand Vent-Axia | ||
Fan Type Panel | ||
Product Type Extractor Fan | ||
Noise Level 43dBA | ||
Mount Type Ceiling, Panel | ||
Colour Grey | ||
Power Consumption 85W | ||
Installation Depth 129mm | ||
Face Height 388mm | ||
Face Width 391mm | ||
Standards/Approvals RoHS | ||
Supply Voltage 240V | ||
Duct Size 225 mm | ||
Series T Series | ||
Configuration Rectangular | ||
The Vent-Axia T-Series panel/ceiling model extractor fan is suitable for mounting at any angle in internal partitions, ceilings, ducts and, with louvre grilles, through external walls. When installed only the louvre grille is visible. The range features a unique speed control pack which enables high, medium or low speed to be pre-set to suit a specific room size or required duty. The Ecotronic controller gives even greater running economy with its minimum speed setting on ’E’ mode and infinitely variable speed control
Patented electronic shutter system ensures quiet, trouble-free operation
Easy fit connector top socket, standard on all model
Supplied with an automatic louvre shutter which operates on both intake and extract and at any angle of mounting
Suitable for operation in ambient temperatures from -40 °C to +50 °C
Fitted with standard thermal overload protection
Supply voltage 220-240V/1/50Hz
Colour soft tone grey
