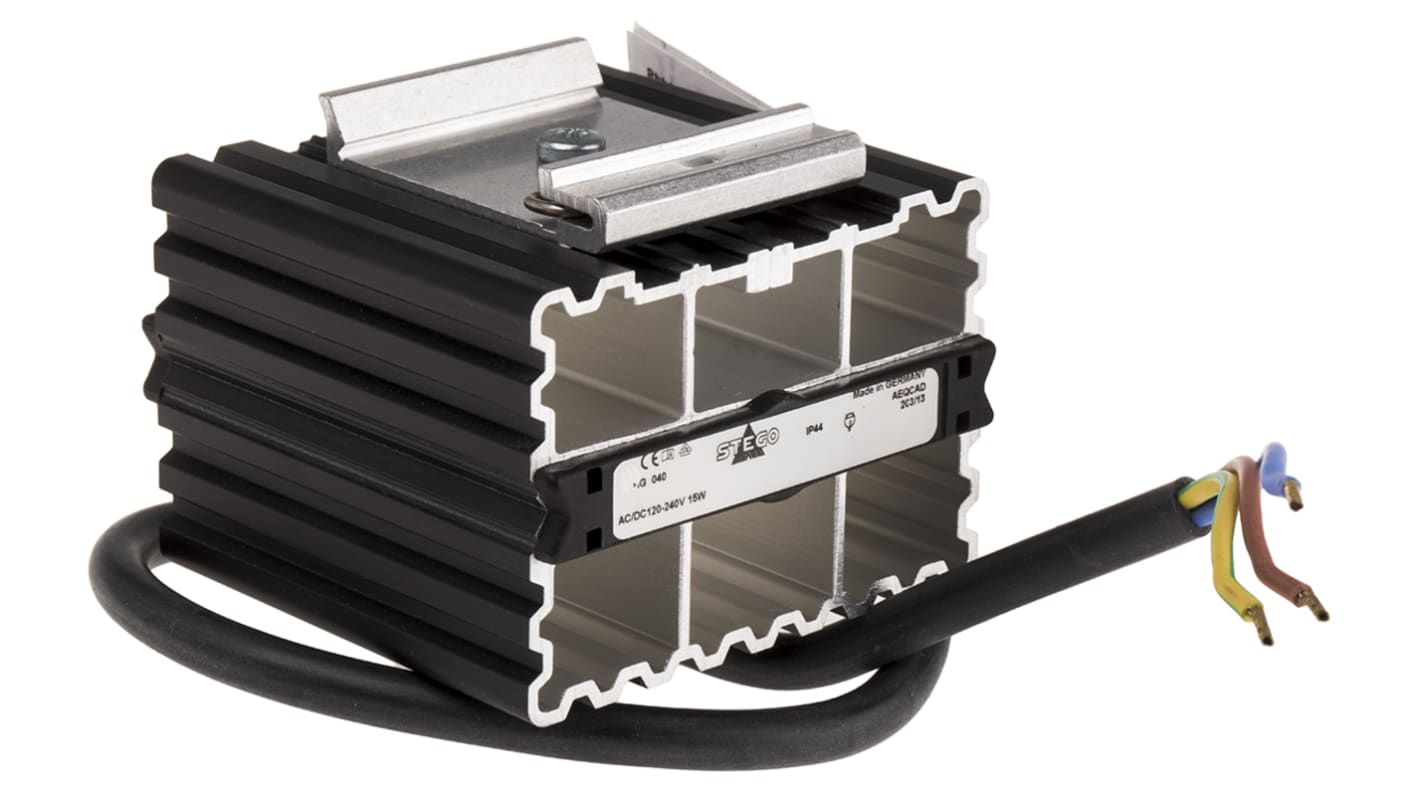

STEGO Enclosure Heater, 140V ac, 250 V ac, 15W Output, 60 °C 70mm x 50 mm
- RS Stock No.:
- 159-2049
- Mfr. Part No.:
- 04000.0-00
- Manufacturer:
- STEGO
Bulk discount available
View bulk pricing optionSubtotal (1 unit)*
PHP3,549.96
(exc. VAT)
PHP3,975.96
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 28 unit(s) shipping from June 03, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | PHP3,549.96 |
| 25 - 49 | PHP3,475.41 |
| 50 - 99 | PHP3,371.12 |
| 100 + | PHP3,269.99 |
*price indicative
- RS Stock No.:
- 159-2049
- Mfr. Part No.:
- 04000.0-00
- Manufacturer:
- STEGO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STEGO | |
| Product Type | Enclosure Heater | |
| Output Power | 15W | |
| Supply Voltage | 140, 250V ac | |
| Surface Temperature | 60°C | |
| Connection Type | Cage Clamp | |
| Depth | 50mm | |
| Width | 70mm | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -49°C | |
| Mounting Position | Vertical | |
| Maximum Operating Temperature | 158°C | |
| Standards/Approvals | GOST-R, UL, VDE | |
| Select all | ||
|---|---|---|
Brand STEGO | ||
Product Type Enclosure Heater | ||
Output Power 15W | ||
Supply Voltage 140, 250V ac | ||
Surface Temperature 60°C | ||
Connection Type Cage Clamp | ||
Depth 50mm | ||
Width 70mm | ||
IP Rating IP20 | ||
Minimum Operating Temperature -49°C | ||
Mounting Position Vertical | ||
Maximum Operating Temperature 158°C | ||
Standards/Approvals GOST-R, UL, VDE | ||
- COO (Country of Origin):
- DE
Convection
Large surface area, anodised aluminium heaters with long service life and no mechanical parts. They have class I insulation. Surface mounting clips are available separately. Protected to IP54
Comply with DIN VDE 0700 Part 1 and EN60335/1
Tropicalised
Self regulating PCT heating elements
500mm long silicone covered supply leads.
DIN Rail Mount Enclosure Heaters
Heaters specifically intended for anti-condensation and frost protection in control and equipment cabinets. All types are supplied with DIN rail mounting hardware.
Note
Below 140Vac/dc heating performance is reduced by approx 10%
Mount as shown in photograph
Mount as shown in photograph
