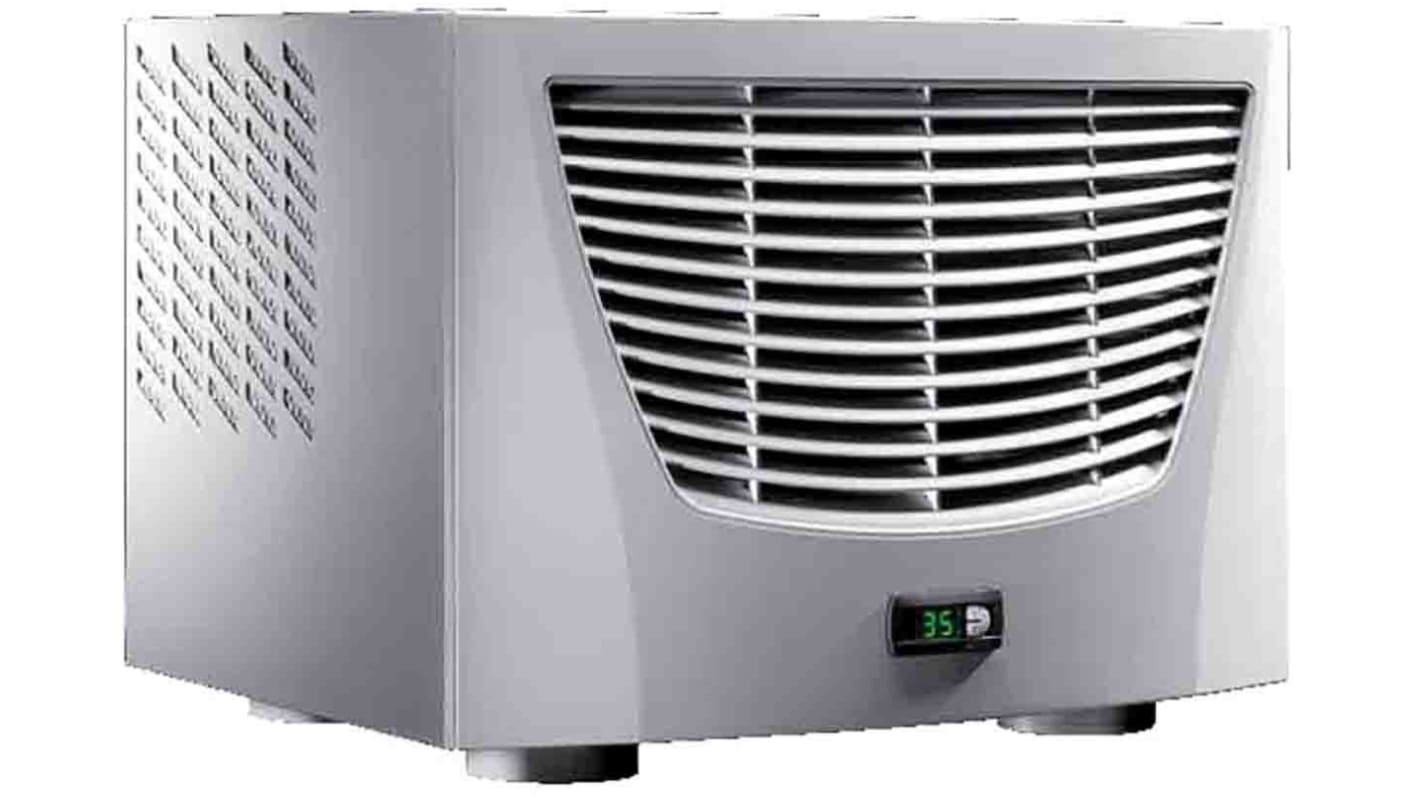

Rittal TopTherm Series Enclosure Cooling Unit, 1500W, 1600 m³/h 115 V ac 417 mm 597 mm 475 mm
- RS Stock No.:
- 224-0079
- Mfr. Part No.:
- 3384510
- Manufacturer:
- Rittal
Bulk discount available
Subtotal (1 unit)*
PHP266,920.39
(exc. VAT)
PHP298,950.84
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from May 04, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP266,920.39 |
| 5 - 9 | PHP261,581.97 |
| 10 + | PHP256,350.33 |
*price indicative
- RS Stock No.:
- 224-0079
- Mfr. Part No.:
- 3384510
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 1500W | |
| Air Flow | 1600m³/h | |
| Input Power | 670W | |
| Mount Type | Roof | |
| Connection Type | Plug-In Terminal Strip | |
| Power Consumption | 1240W | |
| Maximum Supply Voltage | 115V ac | |
| IP Rating | IP34, IP54 | |
| Material | Sheet Steel | |
| Min Temperature Setting | 20°C | |
| Certification | FTTA uR, CSA, UL, cUr, cUL | |
| Type of installation | Roof Mount | |
| Maximum Temperature Setting | 55°C | |
| Width | 597 mm | |
| Height | 417mm | |
| Depth | 475mm | |
| Weight | 47kg | |
| Standards/Approvals | CSA UL+C-UL-FTTA UR+C-UR | |
| Series | TopTherm | |
| Cooler Type | Roof Connected | |
| Cooling Capacity | 4kW | |
| Refrigerant Type | R134A | |
| Nominal Current | 10.1A | |
| Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 1500W | ||
Air Flow 1600m³/h | ||
Input Power 670W | ||
Mount Type Roof | ||
Connection Type Plug-In Terminal Strip | ||
Power Consumption 1240W | ||
Maximum Supply Voltage 115V ac | ||
IP Rating IP34, IP54 | ||
Material Sheet Steel | ||
Min Temperature Setting 20°C | ||
Certification FTTA uR, CSA, UL, cUr, cUL | ||
Type of installation Roof Mount | ||
Maximum Temperature Setting 55°C | ||
Width 597 mm | ||
Height 417mm | ||
Depth 475mm | ||
Weight 47kg | ||
Standards/Approvals CSA UL+C-UL-FTTA UR+C-UR | ||
Series TopTherm | ||
Cooler Type Roof Connected | ||
Cooling Capacity 4kW | ||
Refrigerant Type R134A | ||
Nominal Current 10.1A | ||
Frequency 60Hz | ||
- COO (Country of Origin):
- IT
The Rittal SK series is the roof mounted cooling units with integral e-comfort controller with RiNano coating on the condenser and electric condensate evaporation as standard. The total cooling output is 1.5 kW with 8.7 A rated current and the material used is the sheet steel.
Nano coated condenser
Fully wired ready for connection
External circuit IP 34
Internal circuit IP 54
May be linked to the IoT interface via the Blue e IoT adaptor
