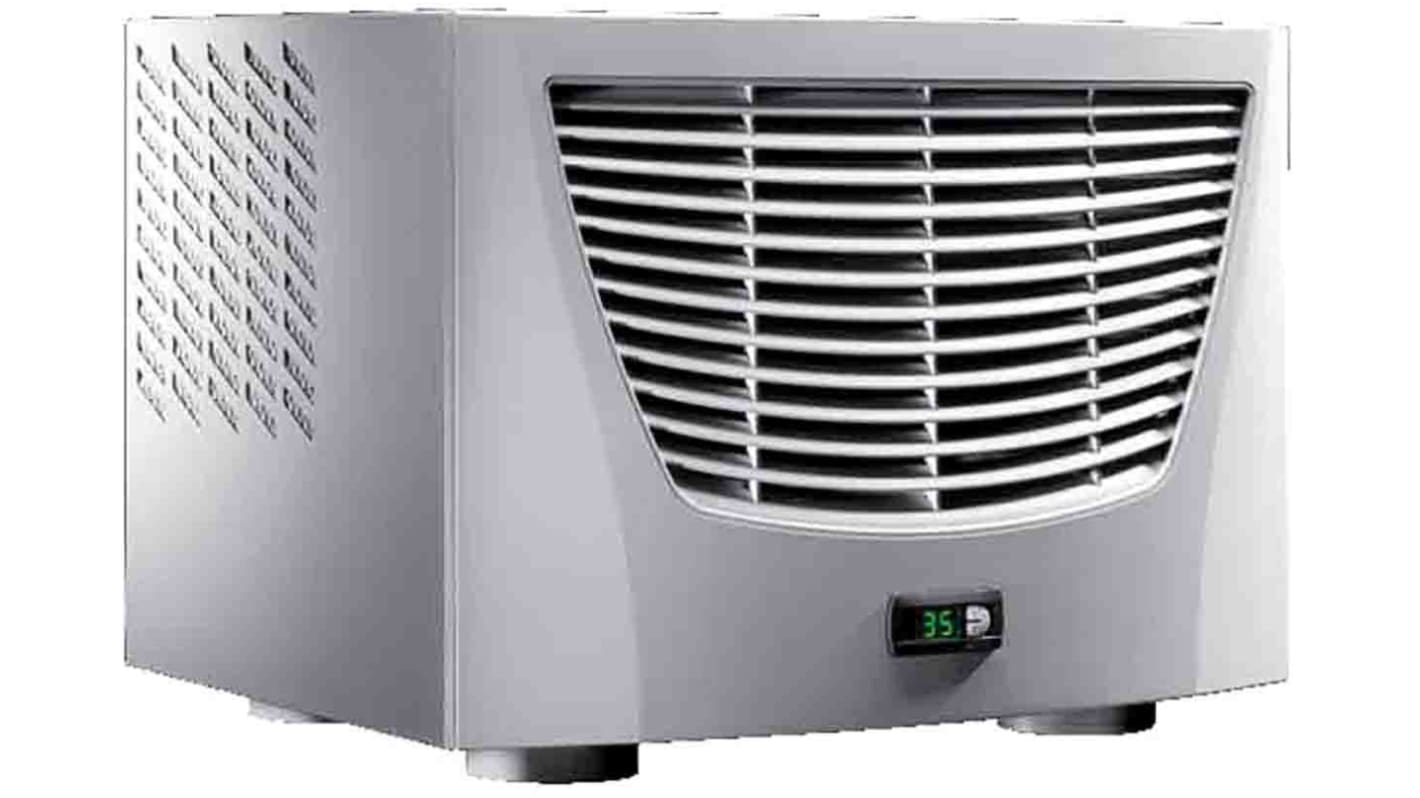

Rittal TopTherm Series Enclosure Cooling Unit, 1000W, 1600 m³/h 115 V ac 417 mm 597 mm 475 mm
- RS Stock No.:
- 224-0075
- Mfr. Part No.:
- 3383510
- Manufacturer:
- Rittal
Bulk discount available
Subtotal (1 unit)*
PHP242,339.87
(exc. VAT)
PHP271,420.65
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from April 07, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP242,339.87 |
| 5 - 9 | PHP237,493.07 |
| 10 + | PHP232,743.21 |
*price indicative
- RS Stock No.:
- 224-0075
- Mfr. Part No.:
- 3383510
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Maximum Cooling Power | 1000W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 1600m³/h | |
| Mount Type | Roof | |
| Input Power | 380W | |
| Connection Type | Plug-In Terminal Strip | |
| Power Consumption | 550W | |
| Maximum Supply Voltage | 115V ac | |
| IP Rating | IP34, IP54 | |
| Certification | UL, cUL, cUr, CSA, EAC, FTTA uR | |
| Material | Sheet Steel | |
| Type of installation | Roof Mount | |
| Maximum Temperature Setting | 55°C | |
| Min Temperature Setting | 20°C | |
| Series | TopTherm | |
| Height | 417mm | |
| Weight | 46kg | |
| Width | 597 mm | |
| Standards/Approvals | EAC, CSA UL+C-UL-FTTA UR+C-UR | |
| Depth | 475mm | |
| Cooler Type | Roof Connected | |
| Cooling Capacity | 4kW | |
| Refrigerant Type | R134A | |
| Frequency | 60Hz | |
| Nominal Current | 8.4A | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Maximum Cooling Power 1000W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 1600m³/h | ||
Mount Type Roof | ||
Input Power 380W | ||
Connection Type Plug-In Terminal Strip | ||
Power Consumption 550W | ||
Maximum Supply Voltage 115V ac | ||
IP Rating IP34, IP54 | ||
Certification UL, cUL, cUr, CSA, EAC, FTTA uR | ||
Material Sheet Steel | ||
Type of installation Roof Mount | ||
Maximum Temperature Setting 55°C | ||
Min Temperature Setting 20°C | ||
Series TopTherm | ||
Height 417mm | ||
Weight 46kg | ||
Width 597 mm | ||
Standards/Approvals EAC, CSA UL+C-UL-FTTA UR+C-UR | ||
Depth 475mm | ||
Cooler Type Roof Connected | ||
Cooling Capacity 4kW | ||
Refrigerant Type R134A | ||
Frequency 60Hz | ||
Nominal Current 8.4A | ||
- COO (Country of Origin):
- IT
The Rittal SK series is the roof mounted cooling units with integral e-comfort controller with RiNano coating on the condenser and electric condensate evaporation as standard. The total cooling output is 1 kW with 6.2 A rated current and the material used is the sheet steel.
Nano coated condenser
Fully wired ready for connection
External circuit IP 34
Internal circuit IP 54
May be linked to the IoT interface via the Blue e IoT adaptor
