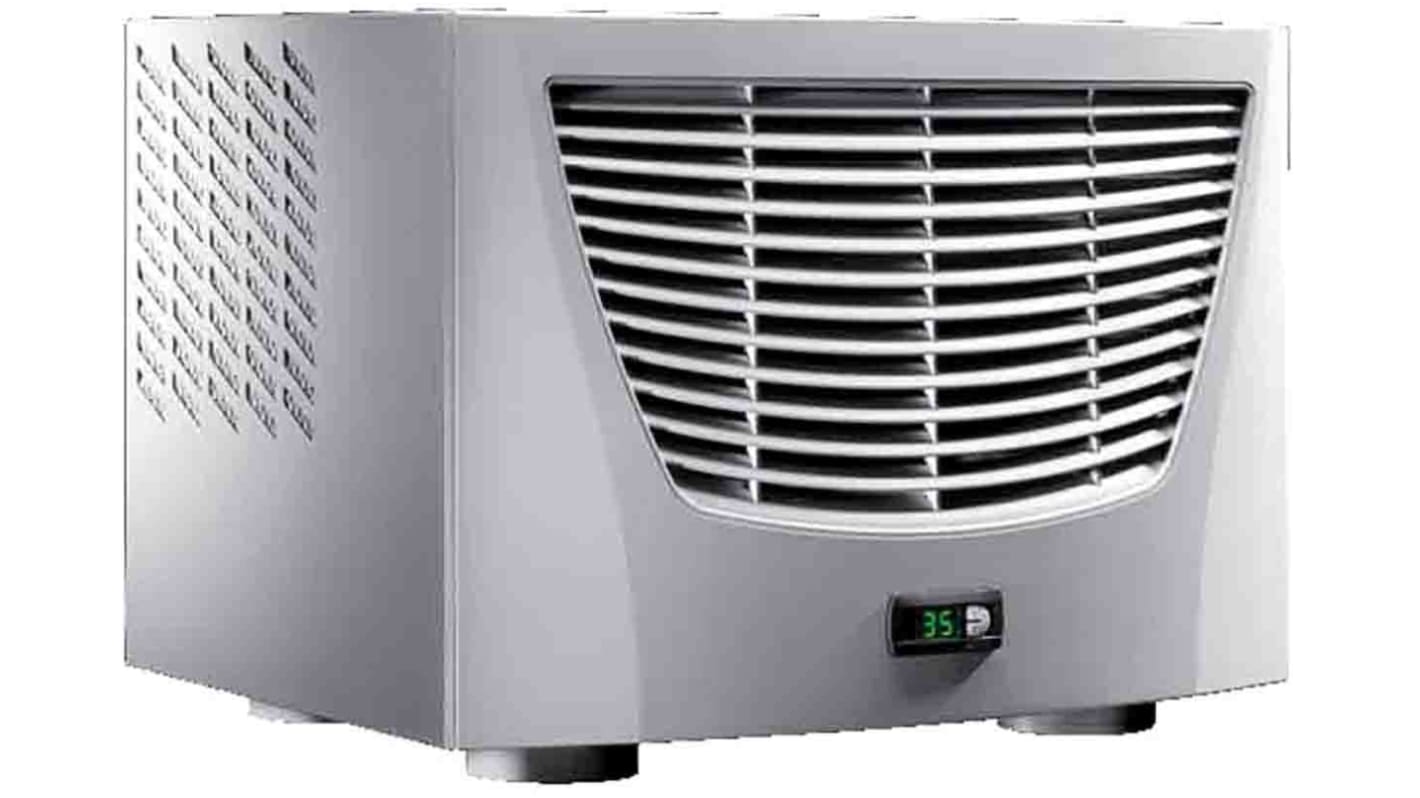

Rittal TopTherm Series Enclosure Cooling Unit, 1500W, 1600 m³/h 400 V ac 417 mm 597 mm 475 mm
- RS Stock No.:
- 224-0080
- Mfr. Part No.:
- 3384540
- Manufacturer:
- Rittal
Bulk discount available
Subtotal (1 unit)*
PHP255,562.65
(exc. VAT)
PHP286,230.17
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from April 06, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP255,562.65 |
| 5 - 9 | PHP250,451.39 |
| 10 + | PHP245,442.36 |
*price indicative
- RS Stock No.:
- 224-0080
- Mfr. Part No.:
- 3384540
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Maximum Cooling Power | 1500W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 1600m³/h | |
| Input Power | 670W | |
| Mount Type | Roof | |
| Connection Type | Plug-In Terminal Strip | |
| Power Consumption | 1240W | |
| IP Rating | IP34, IP54 | |
| Maximum Supply Voltage | 400V ac | |
| Min Temperature Setting | -40°C | |
| Maximum Temperature Setting | 55°C | |
| Type of installation | Roof Mount | |
| Certification | FTTA uR, cUr, cUL, CSA, UL | |
| Material | Sheet Steel | |
| Series | TopTherm | |
| Weight | 47kg | |
| Standards/Approvals | EAC | |
| Depth | 475mm | |
| Height | 417mm | |
| Width | 597 mm | |
| Cooler Type | Roof Connected | |
| Cooling Capacity | 4kW | |
| Nominal Current | 2.9A | |
| Frequency | 60Hz | |
| Refrigerant Type | R134A | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Maximum Cooling Power 1500W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 1600m³/h | ||
Input Power 670W | ||
Mount Type Roof | ||
Connection Type Plug-In Terminal Strip | ||
Power Consumption 1240W | ||
IP Rating IP34, IP54 | ||
Maximum Supply Voltage 400V ac | ||
Min Temperature Setting -40°C | ||
Maximum Temperature Setting 55°C | ||
Type of installation Roof Mount | ||
Certification FTTA uR, cUr, cUL, CSA, UL | ||
Material Sheet Steel | ||
Series TopTherm | ||
Weight 47kg | ||
Standards/Approvals EAC | ||
Depth 475mm | ||
Height 417mm | ||
Width 597 mm | ||
Cooler Type Roof Connected | ||
Cooling Capacity 4kW | ||
Nominal Current 2.9A | ||
Frequency 60Hz | ||
Refrigerant Type R134A | ||
- COO (Country of Origin):
- IT
The Rittal SK series is the roof mounted cooling units with integral e-comfort controller with RiNano coating on the condenser and electric condensate evaporation as standard. The total cooling output is 1.5 kW with 2.5 A rated current and the material used is the sheet steel.
Nano coated condenser
Fully wired ready for connection
External circuit IP 34
Internal circuit IP 54
May be linked to the IoT interface via the Blue e IoT adaptor
