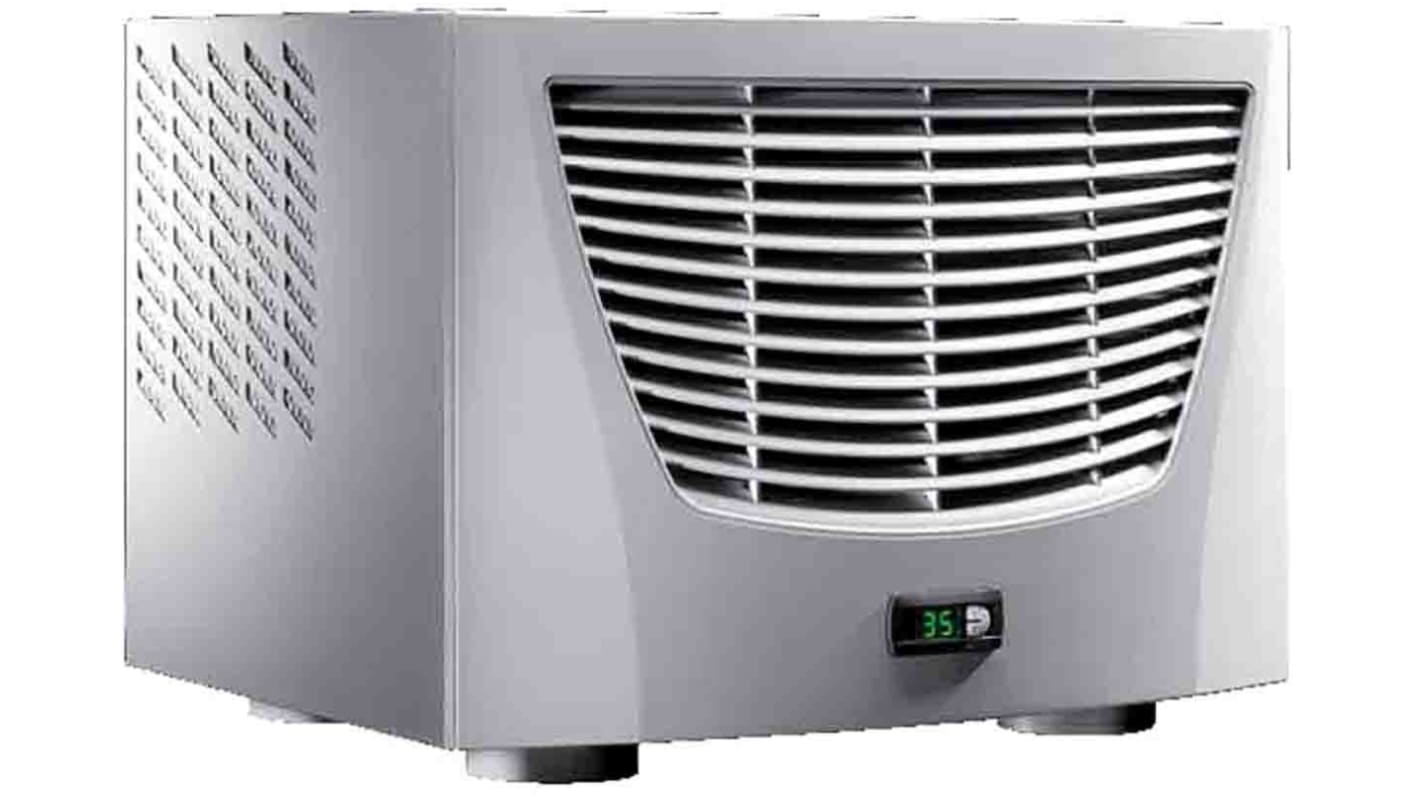

Rittal TopTherm Series Enclosure Cooling Unit, 2000W, 470 m³/h 230 V ac 417 mm 597 mm 475 mm
- RS Stock No.:
- 224-0085
- Mfr. Part No.:
- 3385600
- Manufacturer:
- Rittal
Bulk discount available
Subtotal (1 unit)*
PHP335,296.58
(exc. VAT)
PHP375,532.17
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from April 06, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP335,296.58 |
| 5 - 9 | PHP328,590.64 |
| 10 + | PHP322,018.82 |
*price indicative
- RS Stock No.:
- 224-0085
- Mfr. Part No.:
- 3385600
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 2000W | |
| Air Flow | 470m³/h | |
| Mount Type | Roof | |
| Input Power | 950W | |
| Connection Type | Plug-In Terminal Strip | |
| Power Consumption | 1240W | |
| IP Rating | IP34, IP54 | |
| Maximum Supply Voltage | 230V ac | |
| Maximum Temperature Setting | 55°C | |
| Material | Stainless Steel | |
| Certification | cUr, CSA, FTTA uR, UL, cUL | |
| Type of installation | Roof Mount | |
| Min Temperature Setting | -40°C | |
| Series | TopTherm | |
| Standards/Approvals | CSA UL+C-UL-FTTA UR+C-UR | |
| Weight | 42kg | |
| Width | 597 mm | |
| Depth | 475mm | |
| Height | 417mm | |
| Cooler Type | Roof Connected | |
| Cooling Capacity | 4kW | |
| Nominal Current | 6.3A | |
| Refrigerant Type | R134A | |
| Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 2000W | ||
Air Flow 470m³/h | ||
Mount Type Roof | ||
Input Power 950W | ||
Connection Type Plug-In Terminal Strip | ||
Power Consumption 1240W | ||
IP Rating IP34, IP54 | ||
Maximum Supply Voltage 230V ac | ||
Maximum Temperature Setting 55°C | ||
Material Stainless Steel | ||
Certification cUr, CSA, FTTA uR, UL, cUL | ||
Type of installation Roof Mount | ||
Min Temperature Setting -40°C | ||
Series TopTherm | ||
Standards/Approvals CSA UL+C-UL-FTTA UR+C-UR | ||
Weight 42kg | ||
Width 597 mm | ||
Depth 475mm | ||
Height 417mm | ||
Cooler Type Roof Connected | ||
Cooling Capacity 4kW | ||
Nominal Current 6.3A | ||
Refrigerant Type R134A | ||
Frequency 60Hz | ||
- COO (Country of Origin):
- IT
The Rittal SK series is the roof mounted cooling units with integral e-comfort controller with RiNano coating on the condenser and electric condensate evaporation as standard. The total cooling output is 2 kW with 5.9 A rated current and the material used is the stainless steel.
Nano coated condenser
Fully wired ready for connection
External circuit IP 34
Internal circuit IP 54
May be linked to the IoT interface via the Blue e IoT adaptor
