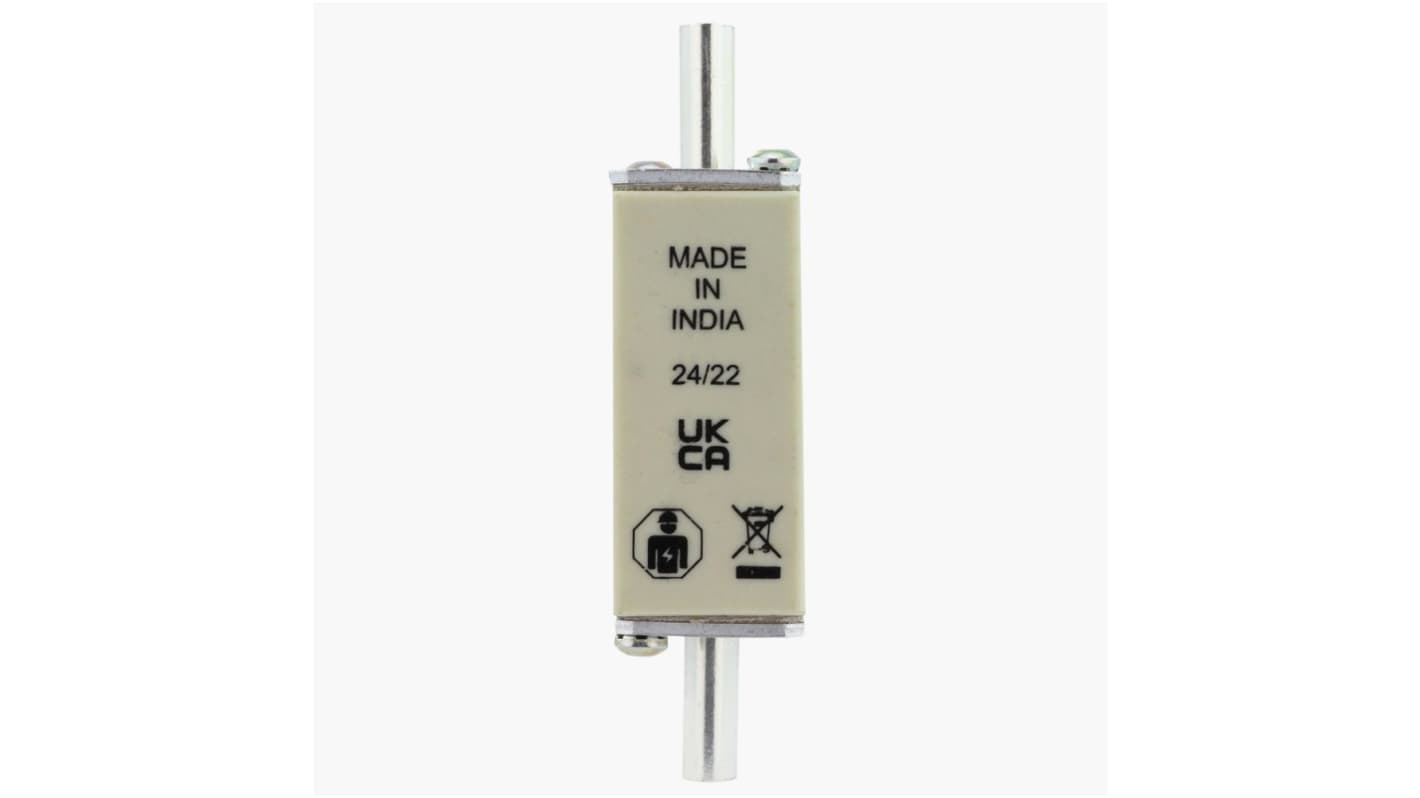

Eaton 20A Tag Fuse 21 x 79 mm 690V

RS Stock No.:: 251-347
Mfr. Part No.:: 20NHG000B-690 NH FUSE 20A 690V SIZE 000 GG MGL
Manufacturer:: Eaton

Subtotal (1 pack of 3 units)*

PHP1,129.57

(exc. VAT)

PHP1,265.12

(inc. VAT)

FREE delivery for orders over ₱5,000.00

Stocked by manufacturer

Ready to ship from February 08, 2027

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Pack(s)	Per Pack	Per Unit*
1 +	PHP1,129.57	PHP376.523

*price indicative

RS Stock No.:: 251-347
Mfr. Part No.:: 20NHG000B-690 NH FUSE 20A 690V SIZE 000 GG MGL
Manufacturer:: Eaton

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Tag Fuse
	Current Rating	20A
	Fuse Size	21 x 79 mm
	Voltage	690V
	Standards/Approvals	CE marked, RoHS Compliant, DIN 43620, IEC 60269-2, IEC 60269-1
	Application Category	Wind, Industrial, Utilities, Solar Applications
	Fuse Speed	GG
	High Rupture Capacity	Yes
	Overall Length	79mm
	Length	79mm
	Width	21mm
	Height	51mm
	Series	Eaton Bussmann

	Select all
	Brand Eaton
	Product Type Tag Fuse
	Current Rating 20A
	Fuse Size 21 x 79 mm
	Voltage 690V
	Standards/Approvals CE marked, RoHS Compliant, DIN 43620, IEC 60269-2, IEC 60269-1
	Application Category Wind, Industrial, Utilities, Solar Applications
	Fuse Speed GG
	High Rupture Capacity Yes
	Overall Length 79mm
	Length 79mm
	Width 21mm
	Height 51mm
	Series Eaton Bussmann

Datasheet - 20NHG000B-690 NH FUSE 20A 690V SIZE 000 GG MGL

COO (Country of Origin):: IN

Eaton Tag Fuse, 20A Current Rating, 690V Voltage - 20NHG000B-690 NH FUSE 20A 690V SIZE 000 GG MGL

This tag fuse is a high-capacity protective device designed for use in industrial and renewable-energy electrical systems. It operates at elevated voltages and provides overcurrent interruption for circuits where slow response and high fault tolerance are required. The device is intended for panel and switchgear mounting in heavy-duty installations.

Features and Benefits:

• 20A rating delivers sustained circuit protection for prolonged loads
• 690V voltage capability permits use on high-voltage distribution networks
• GG slow-blow characteristic handles transient inrush without nuisance operation
• High rupture capacity interrupts severe short-circuits for system safety
• Compliant with recognised DIN and IEC formats ensures interchangeability

Applications

• Suitable for wind turbine electrical protection in nacelle and converter circuits
• Ideal for solar PV 690V DC arrays and string protection
• Used with industrial switchgear in manufacturing plants
• Can be used for utilities distribution feeders and substation protection
• Suitable for heavy-duty machinery requiring slow-blow overcurrent devices

What mounting format does it adopt for integration into switchgear?

It uses the standard NH/size000 tag format compatible with DIN-style fuse holders for inline installation in fuse blocks.

How does the slow-blow behaviour affect motor start-up protection?

The time-delay characteristic tolerates motor inrush currents, reducing unwanted fuse operation during normal starting cycles.

Which standards govern its rated performance and interchangeability?

Performance follows established IEC 60269 series and DIN 43620 dimensional references applicable to industrial fuses.

Is the product suitable for environments requiring restricted hazardous-arc handling?

Its high rupture capability is specified for interrupting high fault currents, mitigating energetic fault effects in heavy-duty systems.
