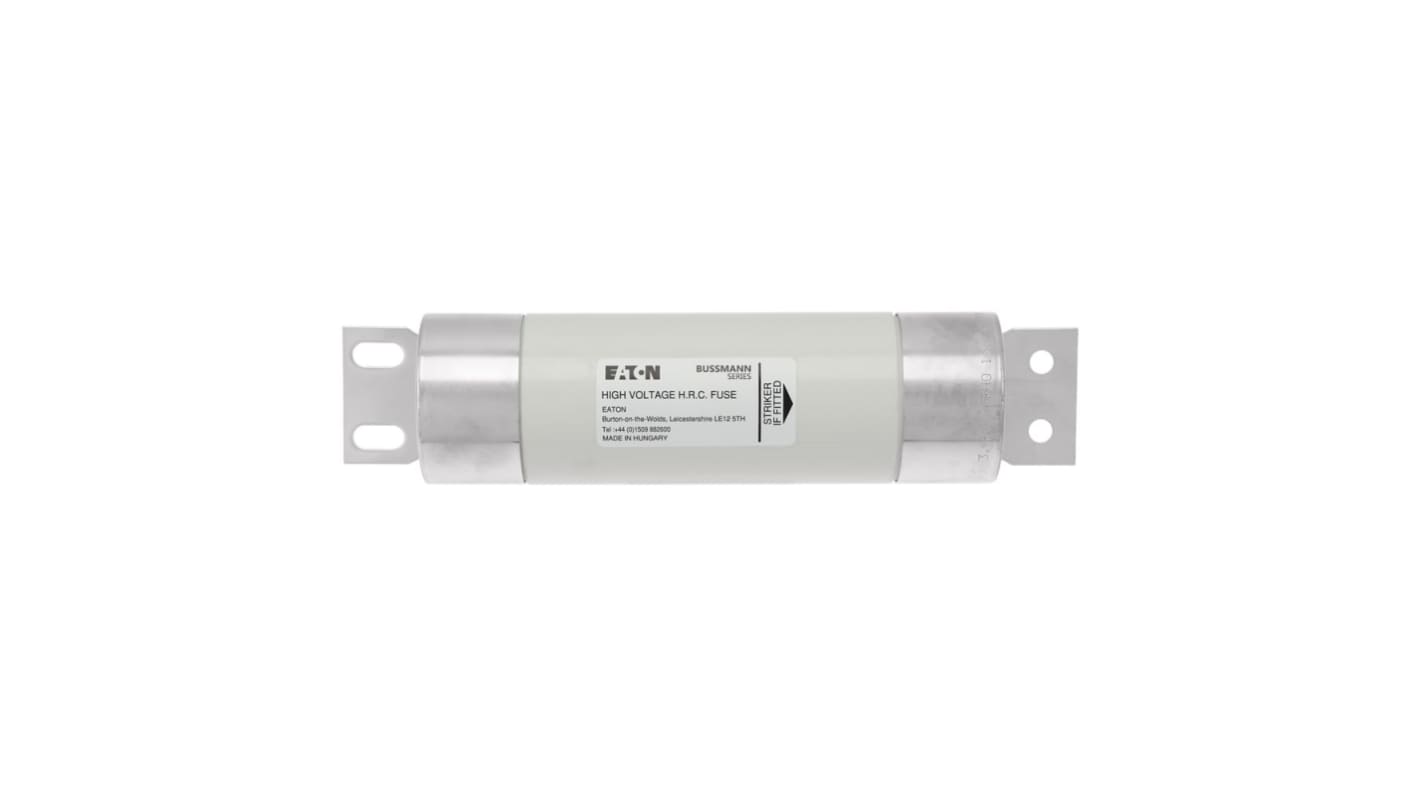

Eaton 160A Tag Fuse 76 mm x 356 mm 3.6kV
- RS Stock No.:
- 228-724
- Mfr. Part No.:
- 3.6WFFHO160
- Manufacturer:
- Eaton
Subtotal (1 pack of 3 units)*
PHP167,786.80
(exc. VAT)
PHP187,921.22
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Stocked by manufacturer
- Ready to ship from January 25, 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per Unit* |
|---|---|---|
| 1 + | PHP167,786.80 | PHP55,928.933 |
*price indicative
- RS Stock No.:
- 228-724
- Mfr. Part No.:
- 3.6WFFHO160
- Manufacturer:
- Eaton
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 160A | |
| Product Type | Tag Fuse | |
| Fuse Size | 76 mm x 356 mm | |
| Voltage | 3.6kV | |
| Standards/Approvals | British Standard | |
| Application Category | Motor Protection | |
| Fuse Speed | Back-up | |
| High Rupture Capacity | 50 kAIC | |
| Length | 254mm | |
| Height | 76mm | |
| Width | 76mm | |
| Diameter | 76mm | |
| Series | Bussmann | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 160A | ||
Product Type Tag Fuse | ||
Fuse Size 76 mm x 356 mm | ||
Voltage 3.6kV | ||
Standards/Approvals British Standard | ||
Application Category Motor Protection | ||
Fuse Speed Back-up | ||
High Rupture Capacity 50 kAIC | ||
Length 254mm | ||
Height 76mm | ||
Width 76mm | ||
Diameter 76mm | ||
Series Bussmann | ||
RoHS Status: Exempt
- COO (Country of Origin):
- HU
Eaton Tag Fuse, 160A Current Rating, 3.6kV Voltage - 3.6WFFHO160
This tag fuse is a high-voltage protective device designed to safeguard motors and associated circuits in industrial electrical systems. It operates as a back-up element in distribution and control installations, interrupting excessive current to protect downstream equipment. The product is intended for environments where a compact, robust fuse is required to handle medium-voltage motor protection duties while conforming to recognised British Standard requirements.
Features & Benefits
• 3.6kV rated voltage provides safe operation at medium-voltage levels
• 160A current rating protects motors against sustained overloads
• Back-up fuse speed offers coordination with fast-acting protective devices
• 50kAIC high rupturing capacity limits fault energy during short circuits
• 76mm diameter allows compatibility with standard tag fuse holders
• 160A current rating protects motors against sustained overloads
• Back-up fuse speed offers coordination with fast-acting protective devices
• 50kAIC high rupturing capacity limits fault energy during short circuits
• 76mm diameter allows compatibility with standard tag fuse holders
**Applications**
• Suitable for motor starter panels requiring medium-voltage protection
• Ideal for switchgear retrofits needing British Standard approved fuses
• Used with distribution boards in industrial automation systems
• Can be used for replacement in high-voltage motor protection circuits
• Ideal for switchgear retrofits needing British Standard approved fuses
• Used with distribution boards in industrial automation systems
• Can be used for replacement in high-voltage motor protection circuits
What physical form factor should I account for when planning installation?
The fuse presents a cylindrical profile with a length of 254mm and a diameter of 76mm, fitting holders built for 76x356mm fuse envelopes.
How does it perform under short-circuit conditions?
It withstands and interrupts faults up to 50kAIC, limiting prospective fault energy on the protected circuit.
Which electrical systems is it compatible with?
It is intended for 3.6kV systems and functions as a back-up element in motor protection schemes rated at 160A.
What distinguishes it as a replacement option for existing equipment?
Its specifications match standard high-voltage tag fuse dimensions and ratings, enabling substitution where a 76x356mm, 160A HRC tag fuse is required.
