Ruland Shaft Collar, Two Piece, Clamp Screw, OD 28 mm OD, W 11 mm, Carbon Steel
- RS Stock No.:
- 174-7137
- Mfr. Part No.:
- OF-MSP-12-F
- Manufacturer:
- Ruland
Bulk discount available
Subtotal (1 unit)*
PHP1,229.86
(exc. VAT)
PHP1,377.44
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from June 15, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP1,229.86 |
| 5 - 9 | PHP1,203.91 |
| 10 + | PHP1,178.65 |
*price indicative
- RS Stock No.:
- 174-7137
- Mfr. Part No.:
- OF-MSP-12-F
- Manufacturer:
- Ruland
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Bore Size | 12 mm | |
| Product Type | Shaft Collar | |
| One/Two Piece | Two Piece | |
| Material | Carbon Steel | |
| Single/Double Wide | Single Wide | |
| Outside Diameter | 28 mm | |
| Fastening | Clamp Screw | |
| Threaded Bore Size | M4 x 12 | |
| Width | 11 mm | |
| Finish | Black Oxide | |
| Standards/Approvals | RoHS3, REACH, DIN 912 12.9 | |
| Series | OF-MSP | |
| Bore Type | Plain | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Bore Size 12 mm | ||
Product Type Shaft Collar | ||
One/Two Piece Two Piece | ||
Material Carbon Steel | ||
Single/Double Wide Single Wide | ||
Outside Diameter 28 mm | ||
Fastening Clamp Screw | ||
Threaded Bore Size M4 x 12 | ||
Width 11 mm | ||
Finish Black Oxide | ||
Standards/Approvals RoHS3, REACH, DIN 912 12.9 | ||
Series OF-MSP | ||
Bore Type Plain | ||
- COO (Country of Origin):
- US

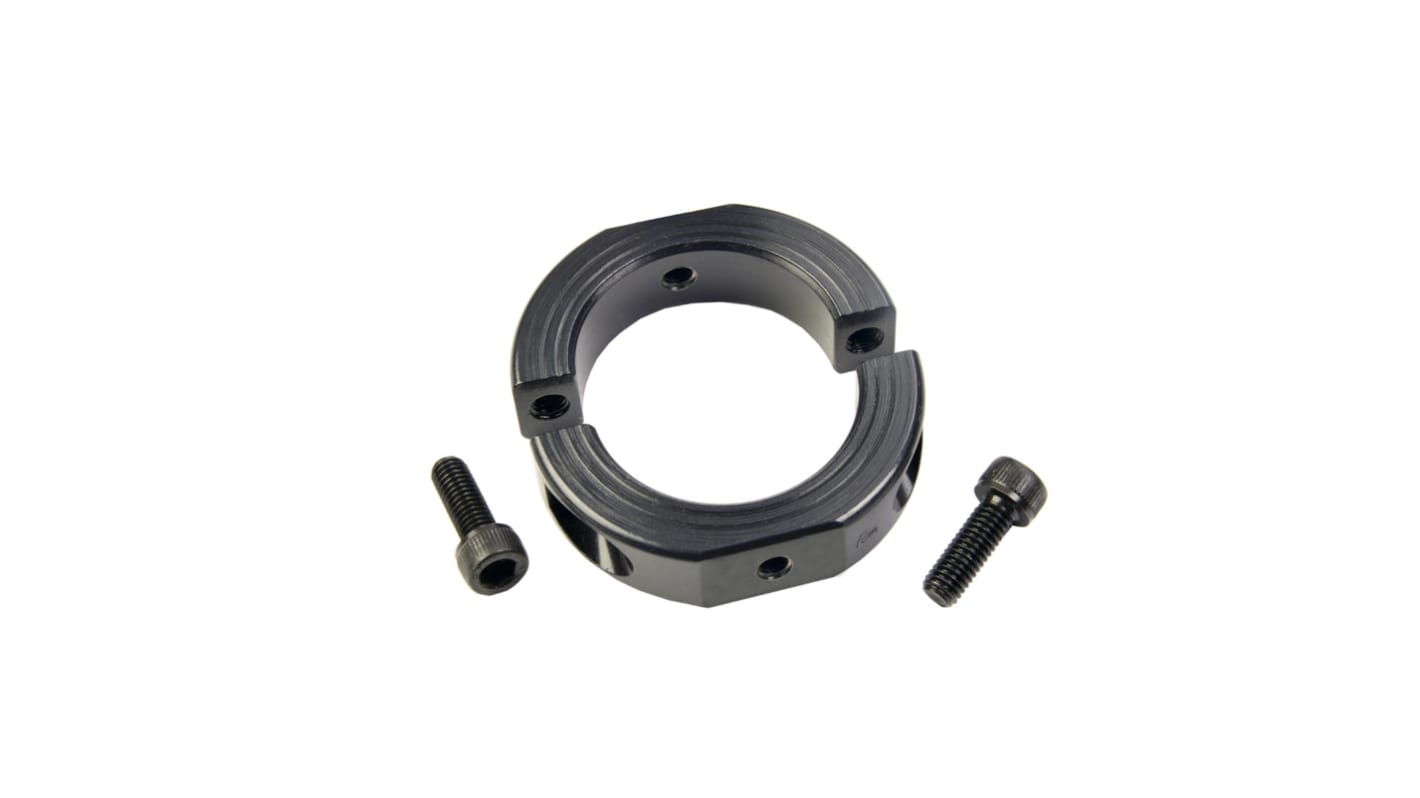

Ruland OF-MSP-12-F is a two-piece shaft collar with 12mm bore, 28mm OD, and 11mm width. OF-MSP-12-F has OD flats and tapped holes for mounting shaft collars to each other or adjacent components. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. OF-MSP-12-F is commonly used for guiding, spacing, stopping, mounting, and component alignment. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .05mm). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power.
