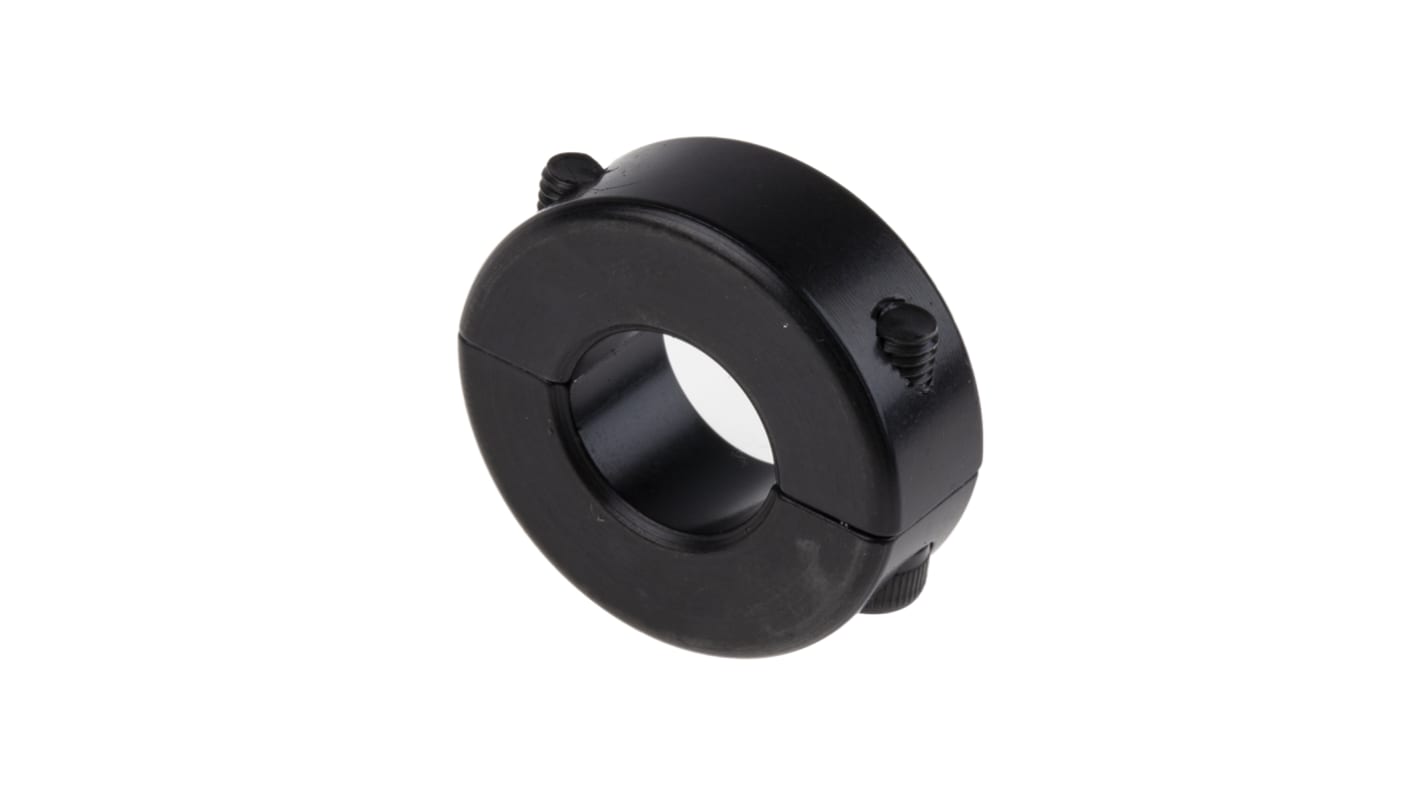

Ruland Shaft Collar, Two Piece, Clamp Screw, OD 30 mm OD, W 11 mm, Carbon Steel

RS Stock No.:: 174-6765
Mfr. Part No.:: MSP-14-F
Manufacturer:: Ruland

Ruland Shaft Collar, Two Piece, Clamp Screw, OD 30 mm OD, W 11 mm, Carbon Steel

Bulk discount available

Subtotal (1 unit)*

PHP724.69

(exc. VAT)

PHP811.65

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 4	PHP724.69
5 - 9	PHP708.87
10 +	PHP693.89

*price indicative

RS Stock No.:: 174-6765
Mfr. Part No.:: MSP-14-F
Manufacturer:: Ruland

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Ruland
	Bore Size	14 mm
	Product Type	Shaft Collar
	One/Two Piece	Two Piece
	Material	Carbon Steel
	Single/Double Wide	Double Wide
	Outside Diameter	30 mm
	Fastening	Clamp Screw
	Threaded Bore Size	M4 x 14
	Width	11 mm
	Finish	Black Oxide
	Standards/Approvals	REACH, DIN 912 12.9, RoHS3
	Series	MSP
	Bore Type	Plain

	Select all
	Brand Ruland
	Bore Size 14 mm
	Product Type Shaft Collar
	One/Two Piece Two Piece
	Material Carbon Steel
	Single/Double Wide Double Wide
	Outside Diameter 30 mm
	Fastening Clamp Screw
	Threaded Bore Size M4 x 14
	Width 11 mm
	Finish Black Oxide
	Standards/Approvals REACH, DIN 912 12.9, RoHS3
	Series MSP
	Bore Type Plain

Datasheet

COO (Country of Origin):: US

Ruland Shaft Collar One-piece Clamp Screw

The Ruland two-piece shaft collar has dimensions of 14mm bore, 30mm OD and 11mm width. It is made from 1215 carbon steel bar with hot process black oxide, impregnated with naphthenic oil and centrifugally dried finish. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ 0.05mm) which is critical for the alignment. It is stamped with the Ruland name and bore size for ease of identification. The collar has a clamp screw of M4x14 dimension.

Features and Benefits

• Lightweight

• Easily adjustable

• Hassel free removability

• Excellent holding power

• Service temperature ranges between -40°C and 176°C

Applications

• Component alignment

• Component mounting

• Loadbearing face

• Mechanical stop

Certifications

• DIN 912 12.9

• REACH certification
