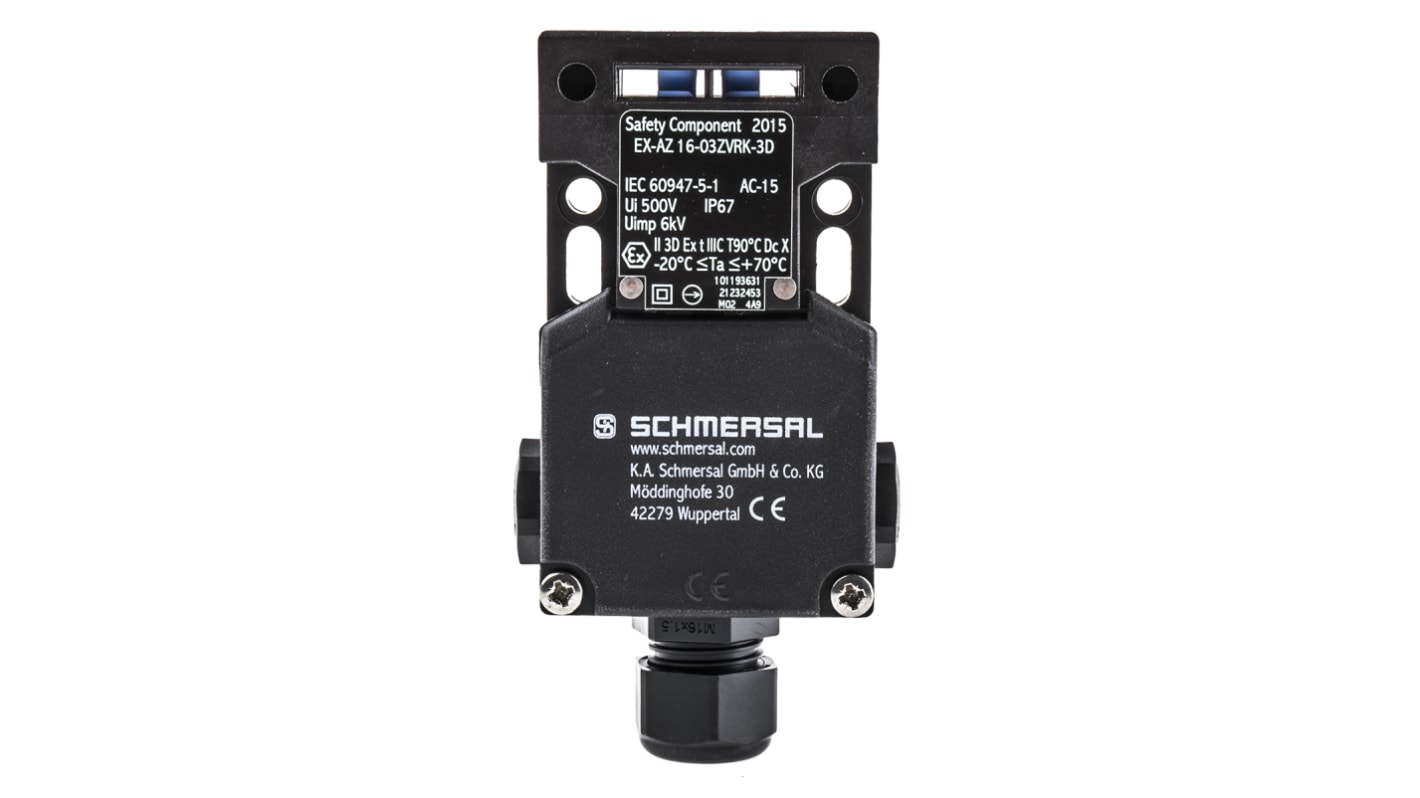

Schmersal ATEX EX-AZ16 Safety Interlock Switch, Keyed, Fibreglass Reinforced Thermoplastic, Interlock

RS Stock No.:: 698-8729
Mfr. Part No.:: EX-AZ 16-03ZVRK-3D
Manufacturer:: Schmersal

Schmersal ATEX EX-AZ16 Safety Interlock Switch, Keyed, Fibreglass Reinforced Thermoplastic, Interlock

Bulk discount available

Subtotal (1 unit)*

PHP7,824.01

(exc. VAT)

PHP8,762.89

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

9 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 5	PHP7,824.01
6 +	PHP7,589.28

*price indicative

RS Stock No.:: 698-8729
Mfr. Part No.:: EX-AZ 16-03ZVRK-3D
Manufacturer:: Schmersal

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schmersal
	Product Type	Safety Interlock Switch
	Lock Style	Keyed
	Lock Type	Interlock
	Actuator Included	No
	Safety Contacts	1 NO
	Housing Material	Fibreglass Reinforced Thermoplastic
	Series	EX-AZ16
	Contact AC Voltage	230V ac
	IP Rating	IP67
	Switch Contact Current	2.5 A
	Number of Auxiliary Contacts	1
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	70°C
	Hazardous Area Certification	ATEX
	Number of Head Directions	3
	Width	30 mm
	Length	90mm
	Standards/Approvals	ISO
	Depth	30mm

	Select all
	Brand Schmersal
	Product Type Safety Interlock Switch
	Lock Style Keyed
	Lock Type Interlock
	Actuator Included No
	Safety Contacts 1 NO
	Housing Material Fibreglass Reinforced Thermoplastic
	Series EX-AZ16
	Contact AC Voltage 230V ac
	IP Rating IP67
	Switch Contact Current 2.5 A
	Number of Auxiliary Contacts 1
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 70°C
	Hazardous Area Certification ATEX
	Number of Head Directions 3
	Width 30 mm
	Length 90mm
	Standards/Approvals ISO
	Depth 30mm

COO (Country of Origin):: DE

Schmersal Interlock Switch, 3NC, Screw Connection - EX-AZ16 Series - EX-AZ 16-03ZVRK-3D

Restrict access to dangerous equipment with this interlock switch from Schmersal. You can use it to cut power to a circuit when a protective gate is open, reducing the risk of injury and other hazards in your work environment. For durability and strength, the switch's housing is made from a glass-fibre-reinforced thermoplastic material that's impact-resistant, giving you a long-lasting product. Screw termination lets you mount the switch quickly and securely without the use of any specialised tools, making installation simple.

Features & Benefits

• Compact dimensions of 90 (length) x 52 (width) x 30mm (depth) for use in areas where space is limited

• Wide operating temperature range of -20°C to +70°C for use in both hot and cold environments

• Silver conducts for high conductivity and corrosion resistance, ensuring a reliable connection even in demanding conditions

Applications

• Metalworking industry

• Construction applications

• Industrial machinery

Is this switch water-resistant?

The switch has an IP67 (ingress protection) rating, which means it can withstand submersion in up to one metre of water for up to 30 minutes. This makes it safe for use in areas where occasional exposure to moisture is likely.

AZ16, ATEX

Long life - up to 1 million mechanical operations

Double insulated

3 cable entries M20 x 1.5

Large wiring compartment

High level of contact reliability with low voltages and currents

Patented roller system - not sensitive to dirty conditions

Slotted holes for adjustment, circular holes for location

Interlock Switch

Note

Actuator not supplied and must be ordered separately

Group and Category

II 3D
Ex tD A22 IP67 T90°C X

Standards

IEC 60947-5-1, IEC 61241-1, BG-GS-ET-15
