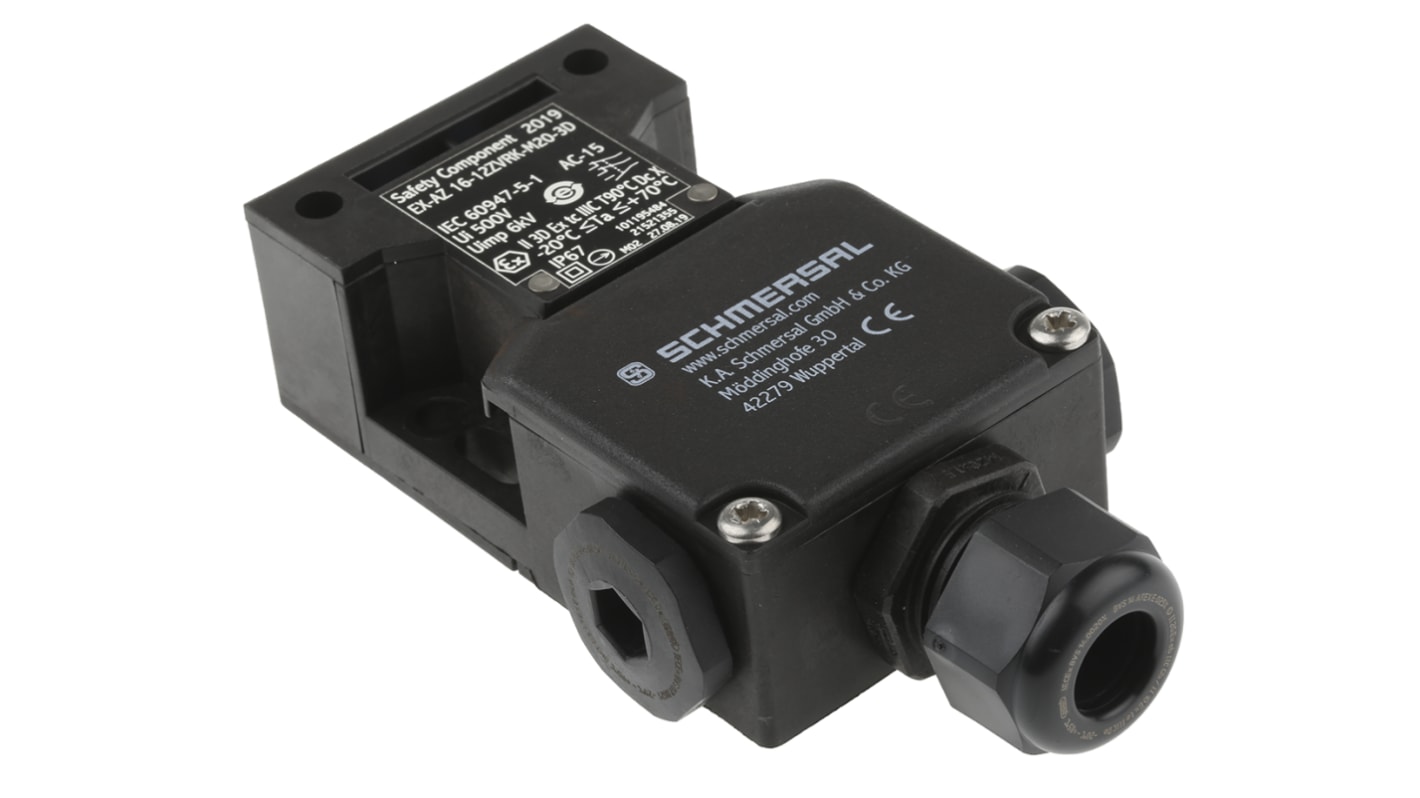

Schmersal ATEX EX-AZ16 Safety Interlock Switch, Keyed, Fibreglass Reinforced Thermoplastic, Interlock

RS Stock No.:: 698-8723
Mfr. Part No.:: EX-AZ16-12ZVRK-M20-3D
Manufacturer:: Schmersal

Schmersal ATEX EX-AZ16 Safety Interlock Switch, Keyed, Fibreglass Reinforced Thermoplastic, Interlock

Subtotal (1 unit)*

PHP4,998.65

(exc. VAT)

PHP5,598.49

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

21 unit(s) ready to ship from another location
Plus 22 unit(s) shipping from April 22, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP4,998.65

*price indicative

RS Stock No.:: 698-8723
Mfr. Part No.:: EX-AZ16-12ZVRK-M20-3D
Manufacturer:: Schmersal

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schmersal
	Product Type	Safety Interlock Switch
	Lock Style	Keyed
	Lock Type	Interlock
	Actuator Included	No
	Safety Contacts	1 NO
	Housing Material	Fibreglass Reinforced Thermoplastic
	Series	EX-AZ16
	Switch Contact Current	2.5A
	IP Rating	IP67
	Contact AC Voltage	230V ac
	Minimum Operating Temperature	-20°C
	Hazardous Area Certification	ATEX
	Maximum Operating Temperature	70°C
	Width	52mm
	Standards/Approvals	ISO
	Length	90mm
	Number of Head Directions	3
	Depth	30mm
	Conduit Entry	M20

	Select all
	Brand Schmersal
	Product Type Safety Interlock Switch
	Lock Style Keyed
	Lock Type Interlock
	Actuator Included No
	Safety Contacts 1 NO
	Housing Material Fibreglass Reinforced Thermoplastic
	Series EX-AZ16
	Switch Contact Current 2.5A
	IP Rating IP67
	Contact AC Voltage 230V ac
	Minimum Operating Temperature -20°C
	Hazardous Area Certification ATEX
	Maximum Operating Temperature 70°C
	Width 52mm
	Standards/Approvals ISO
	Length 90mm
	Number of Head Directions 3
	Depth 30mm
	Conduit Entry M20

COO (Country of Origin):: DE

Schmersal Safety Interlock Switch, Key Lock, 1NO/2NC - EX-AZ16 Series - EX-AZ16-12ZVRK-M20-3D

Use this interlock switch from Schmersal to control the function of a machine safety guard. It offers a first line of defence against injuries caused by machine operation and is especially well-suited to sliding, hinged and removable safety guards. The robust switch is insensitive to dirty conditions and features a tough, fibreglass-reinforced thermoplastic housing that's corrosion-resistant and requires little maintenance. For versatility, this device can also be fitted on profile sections and retrofitted to existing equipment.

Features and Benefits

• Enclosure has an IP67 (ingress protection) rating, meaning it's dust-tight and waterproof

• Large wiring compartment for ease of installation

• Approved to use in safety-related applications and in areas with potentially explosive atmospheres

• Multiple coding levels to prevent tampering or manipulation of the switch for an enhanced degree of safety

Application Information

• Automation

• Process and packaging industries

• Medical and pharmaceutical industries

• Robotics

How does this safety switch's actuator work?

This class-2 safety switch has a switching element that's not physically connected to the actuator but is functionally brought together or separated when switching. When the safety device is opened, the actuator is separated from the base device. During this process, the NC (normally closed) contacts in the safety switch are positively opened and the NO (normally open) contacts are closed.
