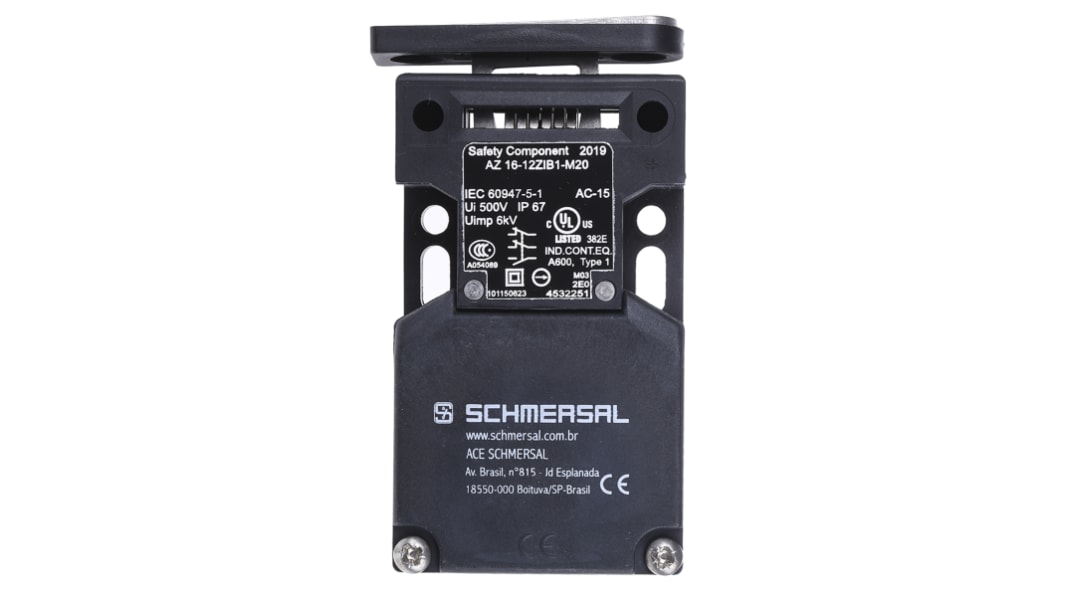

Schmersal AZ16 Safety Interlock Switch, Keyed Actuator Included, Fibreglass Reinforced Thermoplastic, Keyed
- RS Stock No.:
- 362-2782
- Mfr. Part No.:
- AZ16-12ZI-B1-M20
- Manufacturer:
- Schmersal
Bulk discount available
Subtotal (1 unit)*
PHP7,637.25
(exc. VAT)
PHP8,553.72
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 69 unit(s) shipping from May 04, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP7,637.25 |
| 5 + | PHP7,408.13 |
*price indicative
- RS Stock No.:
- 362-2782
- Mfr. Part No.:
- AZ16-12ZI-B1-M20
- Manufacturer:
- Schmersal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schmersal | |
| Lock Style | Keyed | |
| Product Type | Safety Interlock Switch | |
| Lock Type | Keyed | |
| Actuator Included | Yes | |
| Safety Contacts | 1 NO | |
| Housing Material | Fibreglass Reinforced Thermoplastic | |
| Series | AZ16 | |
| Minimum Operating Temperature | -30°C | |
| IP Rating | IP67 | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 80°C | |
| Length | 90mm | |
| Number of Head Directions | 3 | |
| Depth | 30mm | |
| Standards/Approvals | EAC, RoHS, TUV | |
| Width | 52mm | |
| Conduit Entry | M20 | |
| Select all | ||
|---|---|---|
Brand Schmersal | ||
Lock Style Keyed | ||
Product Type Safety Interlock Switch | ||
Lock Type Keyed | ||
Actuator Included Yes | ||
Safety Contacts 1 NO | ||
Housing Material Fibreglass Reinforced Thermoplastic | ||
Series AZ16 | ||
Minimum Operating Temperature -30°C | ||
IP Rating IP67 | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 80°C | ||
Length 90mm | ||
Number of Head Directions 3 | ||
Depth 30mm | ||
Standards/Approvals EAC, RoHS, TUV | ||
Width 52mm | ||
Conduit Entry M20 | ||
RoHS Status: Exempt
Schmersal Safety Interlock Switch, Key Lock, Actuator Included - AZ16 Series - AZ16-12ZI-B1-M20
Use this Schmersal interlock switch to improve safety in dangerous work areas. Its automated function efficiently controls the opening and closing of machine guards to protect operators from injury. It has a tough and durable thermoplastic housing for excellent resistance to corrosion and wear. This also makes it low maintenance and highly reliable as it's not sensitive to dirty working conditions. The switch is supplied with a stainless-steel actuator and can be retrofitted to existing equipment. Its maximum voltage rating is 230V AC and 24V DC.
Features and Benefits
• Wide operating temperature range of -30°C to +80°C makes it suitable for a broad range of heavy-duty applications
• Housing has an IP67 (ingress protection) rating, so it's dust-tight and water-resistant
• Individual coding available on request for enhanced safety levels
Application Information
• Paper and pulp mills
• Medical and pharmaceutical industry
• Power generation
How do you install this switch?
This safety switch can be mounted in any position and is supplied with tamper-proof mounting screws. It has easy-to-use screw-in terminal connectors that ensure durable wiring without the application of heat. Its terminals accept cables with a diameter range of 0.75 to 2.5mm².
