TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, M8 Stud Size 8 AWG 8 AWG Wire Size, Red
- RS Stock No.:
- 669-1992
- Mfr. Part No.:
- 52291
- Manufacturer:
- TE Connectivity

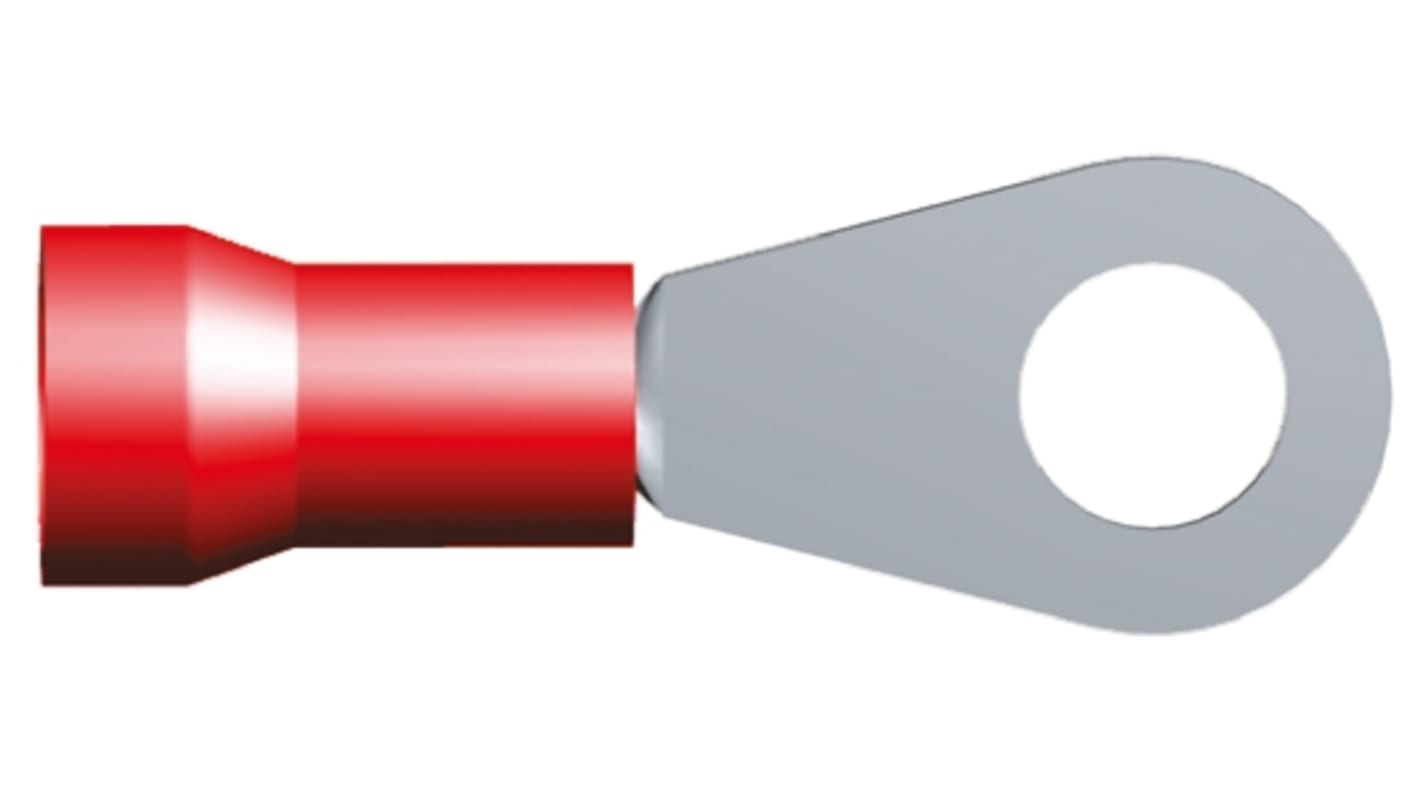

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 25 units)*
PHP1,637.10
(exc. VAT)
PHP1,833.55
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 550 unit(s) ready to ship from another location
- Plus 2,475 unit(s) shipping from February 24, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 25 - 100 | PHP65.484 | PHP1,637.10 |
| 125 - 600 | PHP63.518 | PHP1,587.95 |
| 625 - 1225 | PHP61.613 | PHP1,540.33 |
| 1250 - 2475 | PHP59.764 | PHP1,494.10 |
| 2500 + | PHP57.97 | PHP1,449.25 |
*price indicative
- RS Stock No.:
- 669-1992
- Mfr. Part No.:
- 52291
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Ring Terminal | |
| Series | PLASTI-GRIP | |
| Insulation | Insulated | |
| Insulation Material | Polyvinyl Chloride | |
| Inner Ring Diameter | 8.33mm | |
| Outer Ring Diameter | 14.91mm | |
| Maximum Wire Size AWG | 8 AWG | |
| Minimum Wire Size AWG | 8 AWG | |
| Overall Length | 43.08mm | |
| Stud Size | M8 | |
| Colour | Red | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Thickness | 1.02mm | |
| Standards/Approvals | RoHS, UL, CSA | |
| Maximum Operating Temperature | 105°C | |
| Maximum Wire Size mm² | 10.5mm² | |
| Minimum Wire Size mm² | 6.6mm² | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Ring Terminal | ||
Series PLASTI-GRIP | ||
Insulation Insulated | ||
Insulation Material Polyvinyl Chloride | ||
Inner Ring Diameter 8.33mm | ||
Outer Ring Diameter 14.91mm | ||
Maximum Wire Size AWG 8 AWG | ||
Minimum Wire Size AWG 8 AWG | ||
Overall Length 43.08mm | ||
Stud Size M8 | ||
Colour Red | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 1.02mm | ||
Standards/Approvals RoHS, UL, CSA | ||
Maximum Operating Temperature 105°C | ||
Maximum Wire Size mm² 10.5mm² | ||
Minimum Wire Size mm² 6.6mm² | ||
TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals
PLASTI-GRIP closed barrel ring tongue wire crimp terminals MADE of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily.
Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²
TE Connectivity Plasti-Grip Terminals
