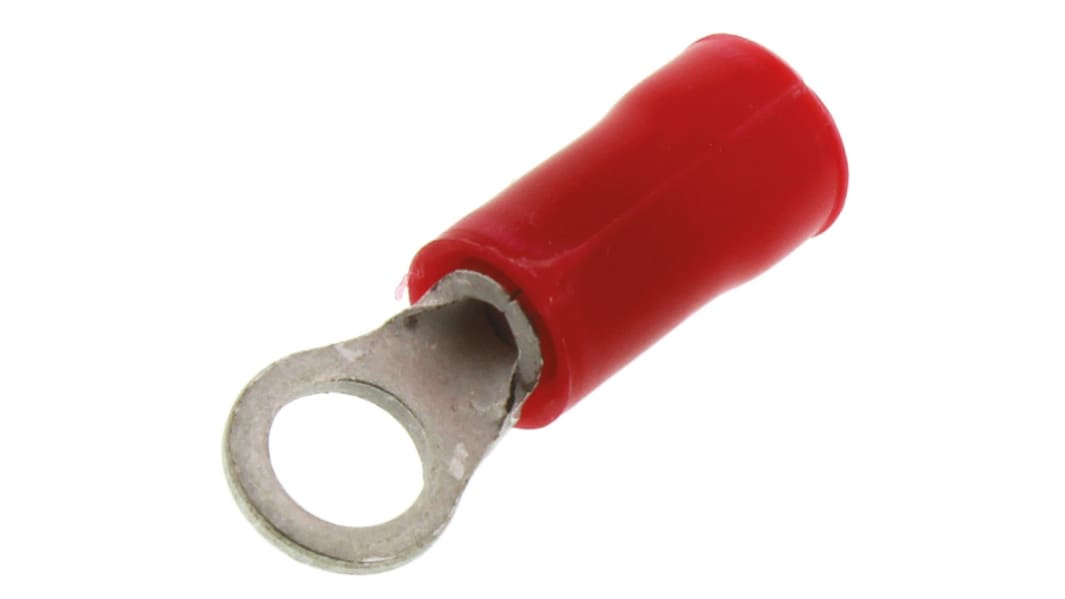

TE Connectivity, PLASTI-GRIP Insulated Crimp Ring Terminal, M3.5 Stud Size 22 AWG 16 AWG Wire Size, Red
- RS Stock No.:
- 161-3929
- Distrelec Article No.:
- 304-29-384
- Mfr. Part No.:
- 34142
- Manufacturer:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 1000 units)*
PHP10,692.00
(exc. VAT)
PHP11,975.04
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 19 left, ready to ship from another location
- Plus 20 unit(s) shipping from October 29, 2026
- Plus 10 unit(s) shipping from November 05, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per Unit* |
|---|---|---|
| 1 - 4 | PHP10,692.00 | PHP10.692 |
| 5 + | PHP9,622.80 | PHP9.623 |
*price indicative
- RS Stock No.:
- 161-3929
- Distrelec Article No.:
- 304-29-384
- Mfr. Part No.:
- 34142
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | PLASTI-GRIP | |
| Product Type | Crimp Ring Terminal | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Outer Ring Diameter | 5.54mm | |
| Inner Ring Diameter | 3.68mm | |
| Minimum Wire Size AWG | 22 AWG | |
| Maximum Wire Size AWG | 16 AWG | |
| Overall Length | 17.37mm | |
| Stud Size | M3.5 | |
| Colour | Red | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series PLASTI-GRIP | ||
Product Type Crimp Ring Terminal | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Outer Ring Diameter 5.54mm | ||
Inner Ring Diameter 3.68mm | ||
Minimum Wire Size AWG 22 AWG | ||
Maximum Wire Size AWG 16 AWG | ||
Overall Length 17.37mm | ||
Stud Size M3.5 | ||
Colour Red | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Standards/Approvals No | ||
Maximum Operating Temperature 105°C | ||
TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals
PLASTI-GRIP closed barrel ring tongue wire crimp terminals MADE of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily.
Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²
