Eaton 1.9 A Resettable Fuse, 6 V
- RS Stock No.:
- 225-8285
- Mfr. Part No.:
- PTSLR18126V190
- Manufacturer:
- Eaton

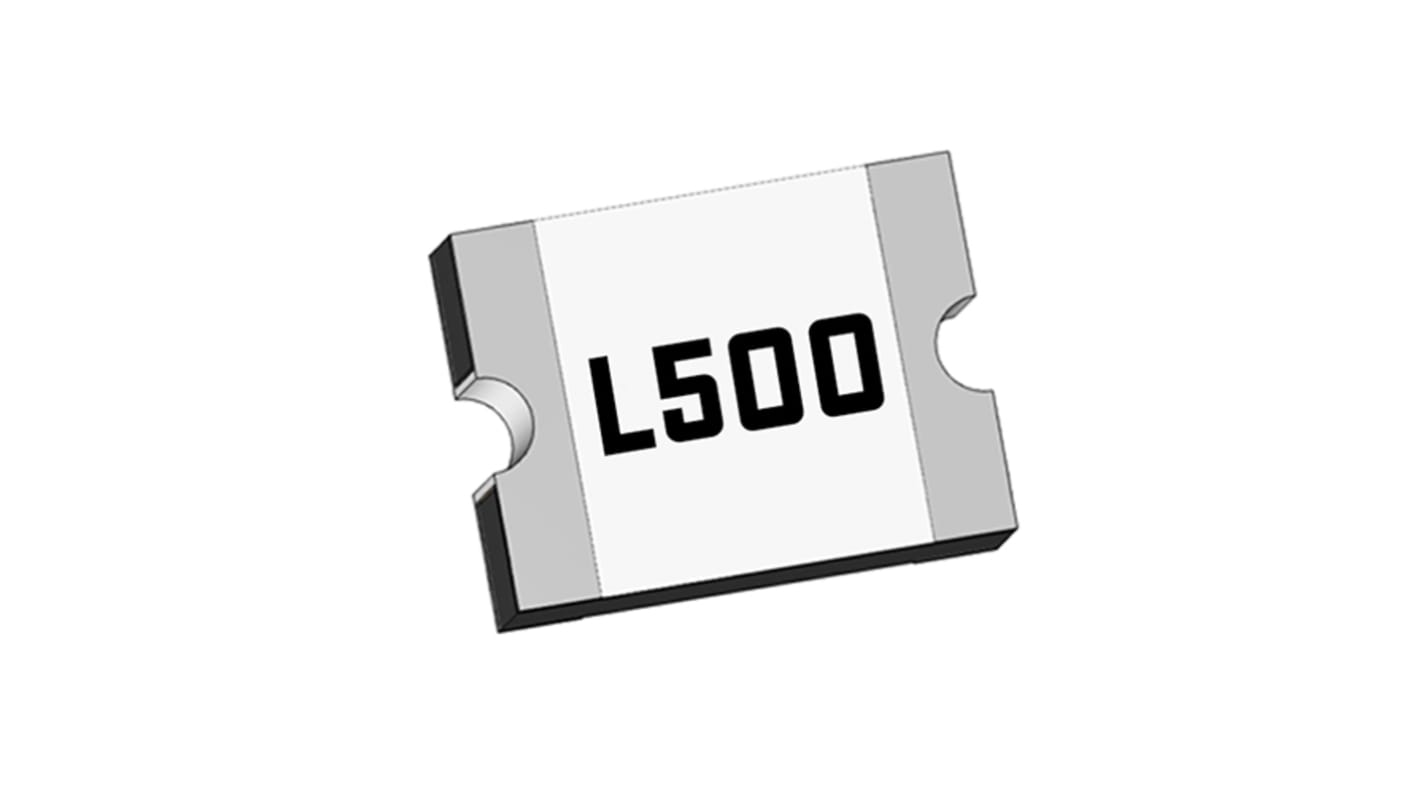

This image is representative of the product range
Subtotal (1 pack of 10 units)*
PHP654.64
(exc. VAT)
PHP733.20
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from November 11, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 + | PHP65.464 | PHP654.64 |
*price indicative
- RS Stock No.:
- 225-8285
- Mfr. Part No.:
- PTSLR18126V190
- Manufacturer:
- Eaton
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Resettable Fuse | |
| Trip Current | 4.9A | |
| Voltage | 6 V | |
| Current Rating | 50 A | |
| Time to Trip | 4.5s | |
| Hold Current | 1.9A | |
| Length | 4.73mm | |
| Height | 0.7mm | |
| Width | 3.41 mm | |
| Minimum Resistance | 3mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Resistance | 0.03Ω | |
| Power Dissipation | 1W | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS, cURus, UL | |
| Series | Bussmann | |
| Package Type | Reel | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Resettable Fuse | ||
Trip Current 4.9A | ||
Voltage 6 V | ||
Current Rating 50 A | ||
Time to Trip 4.5s | ||
Hold Current 1.9A | ||
Length 4.73mm | ||
Height 0.7mm | ||
Width 3.41 mm | ||
Minimum Resistance 3mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Resistance 0.03Ω | ||
Power Dissipation 1W | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS, cURus, UL | ||
Series Bussmann | ||
Package Type Reel | ||
- COO (Country of Origin):
- CN
The Eaton PTSLR1812 series low resistance SMD PTC fuse has hold current of 1.9 A. It is used in data ports, micromotors and fans, USB protection and battery charging & charging connections.
Compact 1812 footprint
Fast time-to-trip
Low voltage hand held equipment
PC-based medical equipment
Note
Eaton formerly known as Bussmann
