TE Connectivity PCB Reed Relay, 6V dc Coil, DPST, 100V dc Max, 200 Ω
- RS Stock No.:
- 276-3869
- Mfr. Part No.:
- JWD-171-25 1-1393771-7
- Manufacturer:
- TE Connectivity

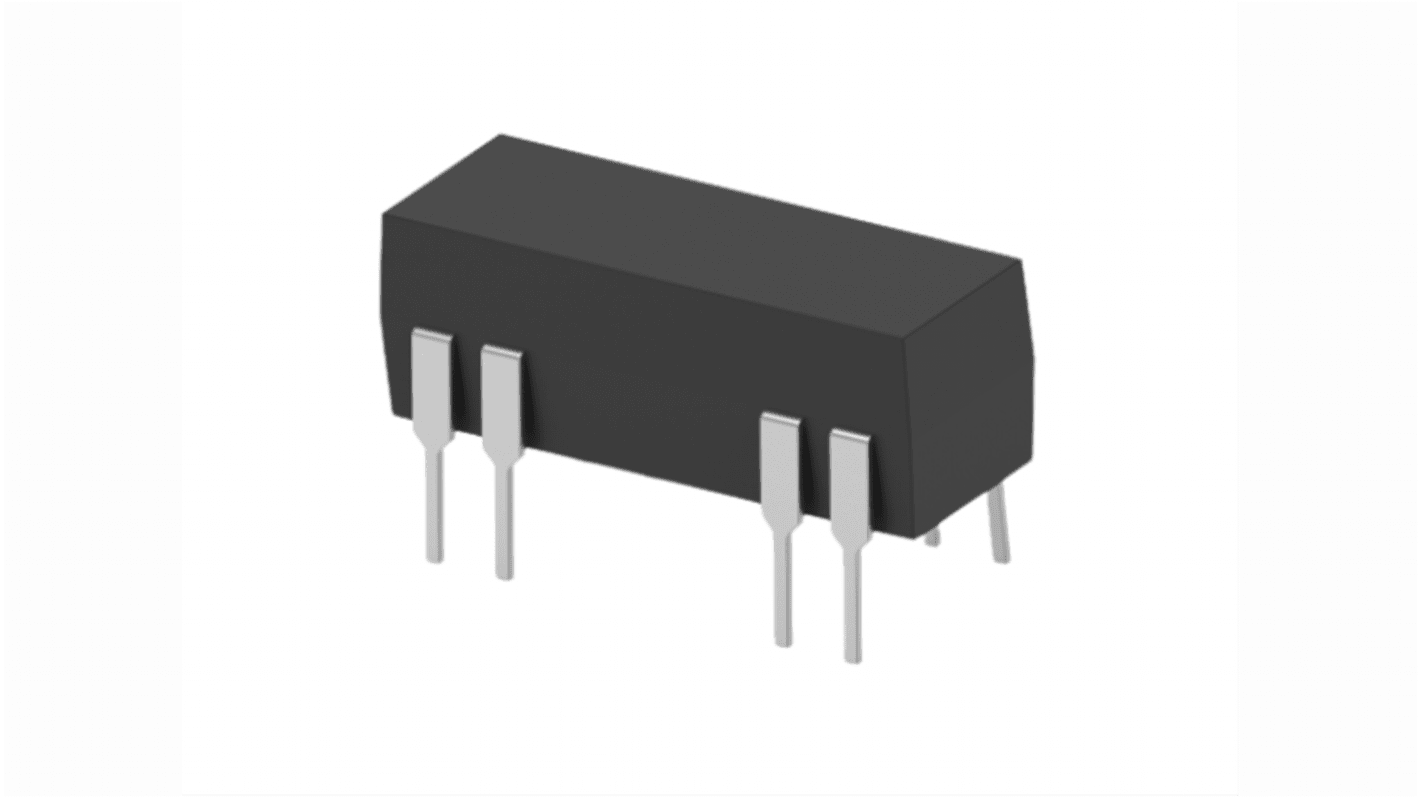

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 25 units)*
PHP28,040.80
(exc. VAT)
PHP31,405.70
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Last RS stock
- Final 1,475 unit(s), ready to ship from another location
Units | Per Unit | Per Tube* |
|---|---|---|
| 25 - 25 | PHP1,121.632 | PHP28,040.80 |
| 50 - 75 | PHP1,083.334 | PHP27,083.35 |
| 100 - 175 | PHP1,028.617 | PHP25,715.43 |
| 200 + | PHP984.866 | PHP24,621.65 |
*price indicative
- RS Stock No.:
- 276-3869
- Mfr. Part No.:
- JWD-171-25 1-1393771-7
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Contact Configuration | DPST | |
| Product Type | Reed Relay | |
| Mount Type | PCB | |
| Coil Power | 150mW | |
| Terminal Type | Through Hole | |
| Coil Resistance | 200Ω | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 19.56mm | |
| Standards/Approvals | No | |
| Height | 8mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Contact Configuration DPST | ||
Product Type Reed Relay | ||
Mount Type PCB | ||
Coil Power 150mW | ||
Terminal Type Through Hole | ||
Coil Resistance 200Ω | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature 85°C | ||
Length 19.56mm | ||
Standards/Approvals No | ||
Height 8mm | ||
The TE Connectivity Potter and Brumfield Standard Power Relay of JWD series open or close a circuit by using an electromagnetic coil for seamless power flow.
Monostable coil
Reed Contacts
