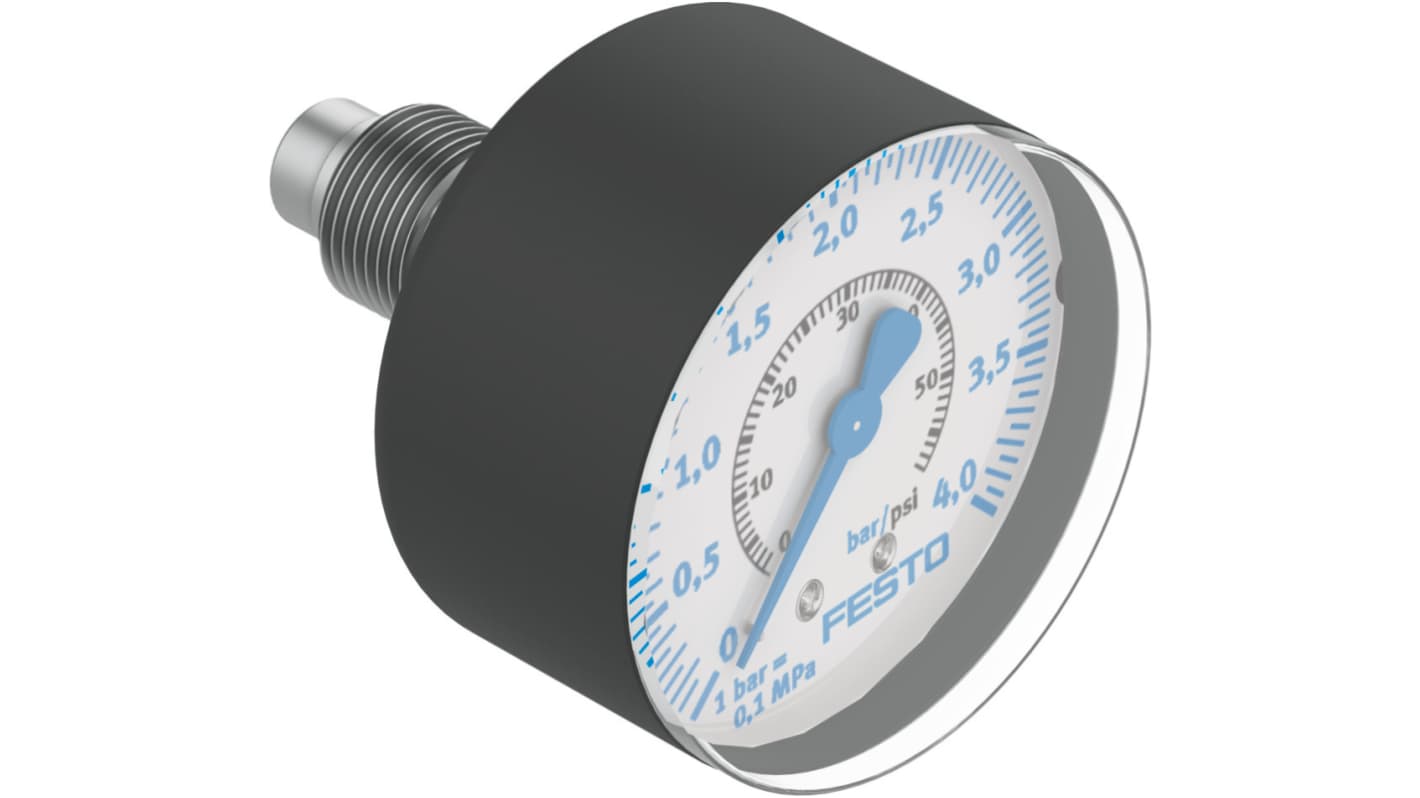

Festo R 1/8 Threaded Pressure Gauge, 40 mm, 4 bar

RS Stock No.:: 175-4566
Distrelec Article No.:: 301-68-940
Mfr. Part No.:: MAP-40-4-1/8-EN
Manufacturer:: Festo

Festo R 1/8 Threaded Pressure Gauge, 40 mm, 4 bar

Subtotal (1 unit)*

PHP1,752.89

(exc. VAT)

PHP1,963.24

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

Plus 52 unit(s) shipping from March 23, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP1,752.89

*price indicative

RS Stock No.:: 175-4566
Distrelec Article No.:: 301-68-940
Mfr. Part No.:: MAP-40-4-1/8-EN
Manufacturer:: Festo

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Pressure Gauge
	Maximum Pressure Measurement	4bar
	Minimum Pressure Measurement	0bar
	Pressure Connection	Brass
	Connection Size	R 1/8
	Connection Type	Threaded
	Series	MAP
	Case Material	Polybutylene Terephthalate
	Connection Location	Rear Side Centred
	Dial Colour	Black
	Dial Size	40mm
	Maximum Operating Temperature	60°C
	Standards/Approvals	RoHS

	Select all
	Brand Festo
	Product Type Pressure Gauge
	Maximum Pressure Measurement 4bar
	Minimum Pressure Measurement 0bar
	Pressure Connection Brass
	Connection Size R 1/8
	Connection Type Threaded
	Series MAP
	Case Material Polybutylene Terephthalate
	Connection Location Rear Side Centred
	Dial Colour Black
	Dial Size 40mm
	Maximum Operating Temperature 60°C
	Standards/Approvals RoHS

RoHS Status: Exempt

COO (Country of Origin):: DE

Festo MAP Series Pressure Gauge, 0 to 4 Bar Pressure Range, R 1/8 Connection size - MAP-40-4-1/8-EN, Numeric Part Number: 162842

This pressure gauge is an analogue instrument designed for accurate industrial pressure measurement. With a nominal size of 40mm, it measures pressures from 0 to 4 Bar, operating effectively within a temperature range of -20 to +60°C. The back entry design facilitates easy installation across various applications, making it suitable for diverse environments.

Features & Benefits

• Analogue display provides clear pressure readings for quick reference

• Bourdon-tube design enhances durability and measurement accuracy

• Conforms to standard EN 837-1 ensuring reliability and compliance

• RoHS compliant materials ensure environmental safety

Applications

• Used in pneumatic systems for monitoring air pressure

• Suitable for industrial automation processes

• Compatible with inert gases and neutral fluids

• Ideal for machinery requiring pressure regulation

• Commonly employed in electronic and mechanical

Is the gauge suitable for use with oxygen?

No, it should not be used with oxygen or acetylene.

Can it be mounted in confined spaces?

Yes, its back entry design allows for compact installations.
