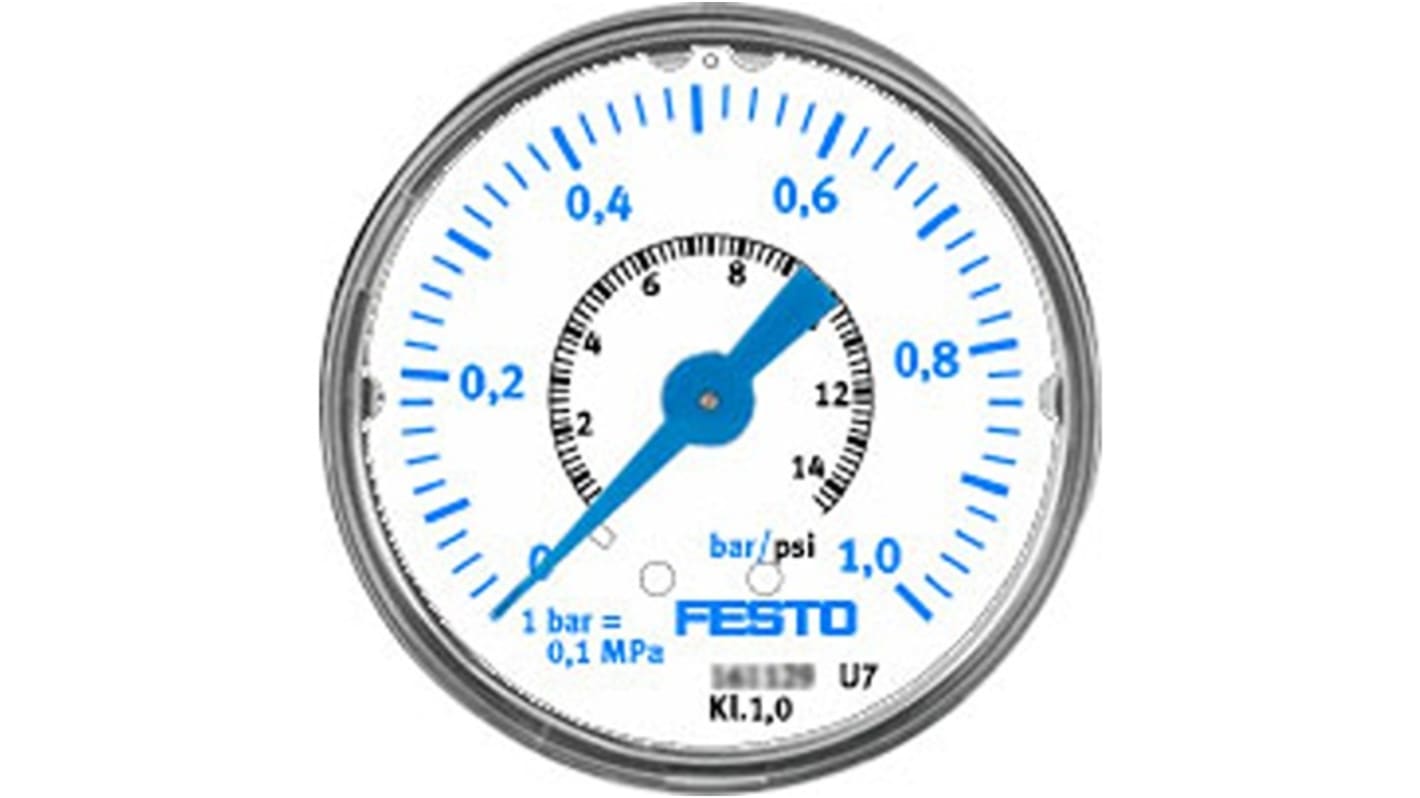

Festo R 1/8 In-line Installation Pressure Gauge, 40 mm, 1 bar

RS Stock No.:: 288-7774
Distrelec Article No.:: 301-68-938
Mfr. Part No.:: MAP-40-1-1/8-EN
Manufacturer:: Festo

Festo R 1/8 In-line Installation Pressure Gauge, 40 mm, 1 bar

Subtotal (1 unit)*

PHP2,086.07

(exc. VAT)

PHP2,336.40

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

99 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP2,086.07

*price indicative

RS Stock No.:: 288-7774
Distrelec Article No.:: 301-68-938
Mfr. Part No.:: MAP-40-1-1/8-EN
Manufacturer:: Festo

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Pressure Gauge
	Maximum Pressure Measurement	1bar
	Minimum Pressure Measurement	0bar
	Pressure Connection	R 1/8 inch
	Connection Size	R 1/8
	Accuracy	1.6 %FS
	Connection Type	In-line Installation
	Series	MAP-40-1-1/8-EN
	Case Material	Polybutylene Terephthalate
	Dial Colour	Housing: Black
	Connection Location	Rear Side Centred
	Dial Size	40mm
	Maximum Operating Temperature	60°C
	Standards/Approvals	EN 837-1 (Conforms to Standard)

	Select all
	Brand Festo
	Product Type Pressure Gauge
	Maximum Pressure Measurement 1bar
	Minimum Pressure Measurement 0bar
	Pressure Connection R 1/8 inch
	Connection Size R 1/8
	Accuracy 1.6 %FS
	Connection Type In-line Installation
	Series MAP-40-1-1/8-EN
	Case Material Polybutylene Terephthalate
	Dial Colour Housing: Black
	Connection Location Rear Side Centred
	Dial Size 40mm
	Maximum Operating Temperature 60°C
	Standards/Approvals EN 837-1 (Conforms to Standard)

COO (Country of Origin):: BG

Festo MAP Series Pressure Gauge, 40mm Gauge Outside Diameter, Inline Mounting Type - MAP-40-1-1/8-EN, Numeric Part Number:161126

This pressure gauge is an analogue device designed to provide precise readings in a compact form. With a 40mm diameter and a pressure range of 0 to 1 bar, it is well-suited for monitoring pressure in various applications. Constructed from robust PBT, this gauge withstands temperatures between -20°C to +60°C, making it highly versatile for industrial use.

Features & Benefits

• Double scale display for easy pressure reading

• Operating range accommodates inert gases and neutral fluids

• Measurement accuracy class of 1.6 ensures reliable readings

• Constructed with a protective IP43 rating for durability

Applications

• Used with pneumatic systems for accurate pressure monitoring

• Ideal for measuring inert gases in industrial processes

• Utilised in automation for consistent pressure control

• Effective in monitoring pressure in mechanical systems

• Suitable for requiring strict temperature controls

What type of mounting does this gauge support?

It supports in-line installation, which simplifies integration into existing systems and reduces installation time.

What materials are in contact with the medium?

The gauge features brass components in contact with the medium, ensuring compatibility with inert gases and neutral fluids.

How does the temperature range impact its functionality?

With an operational temperature range of -20°C to +60°C, it remains effective in various environments, maintaining measurement accuracy across this spectrum.
