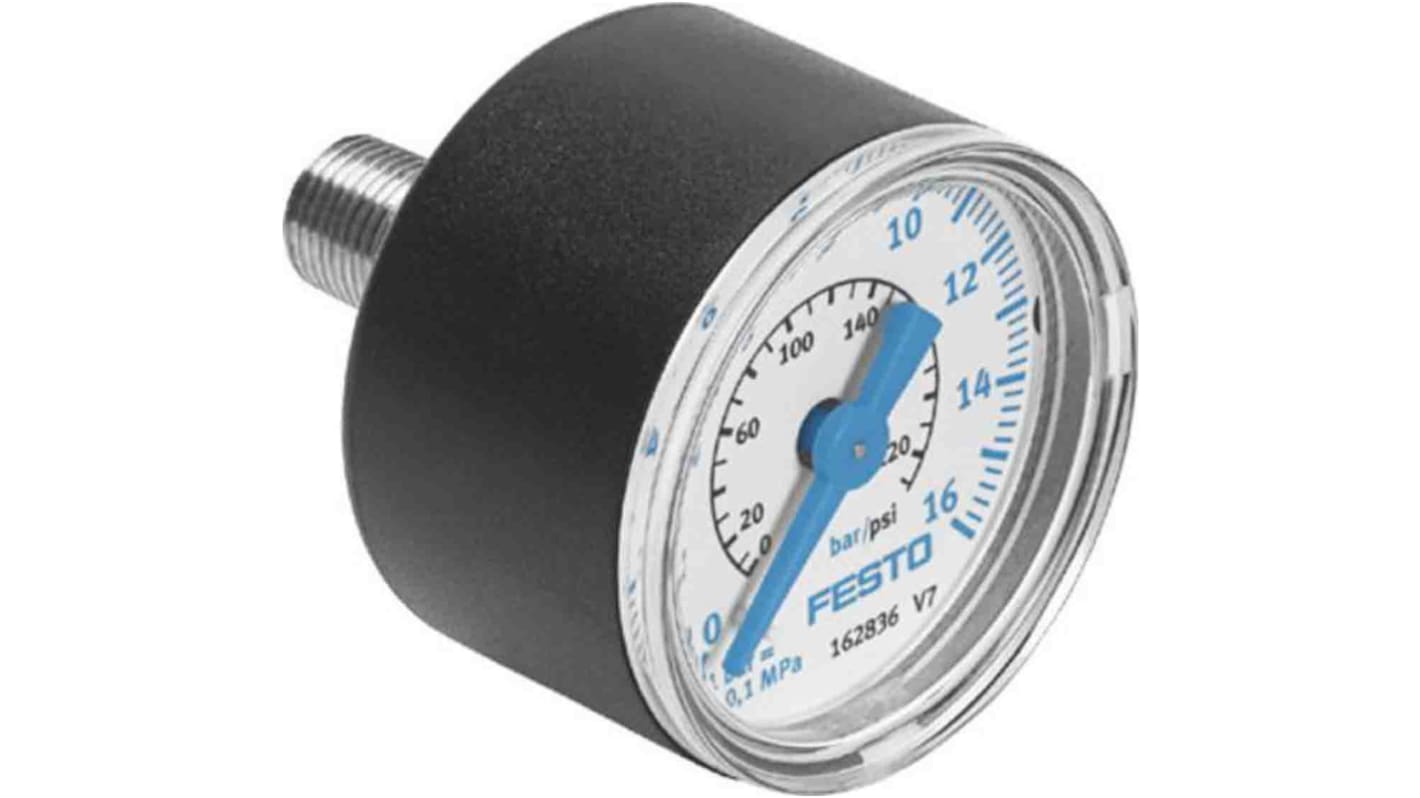

Festo R 1/8 Threaded Pressure Gauge, 40 mm, 16 bar
- RS Stock No.:
- 202-3080
- Mfr. Part No.:
- MA-40-16-1/8-EN-DPA
- Manufacturer:
- Festo
Bulk discount available
Subtotal (1 unit)*
PHP1,571.39
(exc. VAT)
PHP1,759.96
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 35 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP1,571.39 |
| 5 + | PHP1,524.25 |
*price indicative
- RS Stock No.:
- 202-3080
- Mfr. Part No.:
- MA-40-16-1/8-EN-DPA
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Maximum Pressure Measurement | 16bar | |
| Product Type | Pressure Gauge | |
| Minimum Pressure Measurement | 0bar | |
| Pressure Connection | Brass | |
| Connection Size | R 1/8 | |
| Connection Type | Threaded | |
| Series | MA | |
| Case Material | ABS | |
| Dial Size | 40mm | |
| Dial Colour | Black | |
| Connection Location | Back Entry | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Maximum Pressure Measurement 16bar | ||
Product Type Pressure Gauge | ||
Minimum Pressure Measurement 0bar | ||
Pressure Connection Brass | ||
Connection Size R 1/8 | ||
Connection Type Threaded | ||
Series MA | ||
Case Material ABS | ||
Dial Size 40mm | ||
Dial Colour Black | ||
Connection Location Back Entry | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- PL
Festo Pneumatic Pressure Gauge, 16 Bar - MA-40-16-1/8-EN-DPA
This analogue pressure gauge from Festo lets you accurately monitor positive pressures up to 16 bar or 230 psi. Use it to avoid spikes in pressure damaging your pneumatic system or causing downtime. It's built to the classic bourdon-tube design for simple and reliable operation. The thread is made from corrosion-resistant brass, with a tough ABS (acrylonitrile butadiene styrene) housing and a durable PS (polystyrene) screen. For versatile use, the unit is fitted with a standard R 1/8 threaded connection.
• Rear-side central connection enables space-efficient installation in a visible position
• Operating temperature range of -20°C to +60°C makes it suitable for use in a wide range of industrial environments
• IP (ingress protection) rating of 43 means it's protected against tools, small wires greater than 1 mm and light water sprays
• Contains only minimal levels of hazardous substances
Application Information
• Air-conditioning and heating systems
• Industrial compressors
• Medical equipment
Does my pressure gauge need to be calibrated?
By calibrating your pressure gauge, you can ensure it's operating accurately and within the manufacturer's specifications. Take advantage of the in-house calibration service from RS.
