Festo G 1/4 Threaded Pressure Gauge, 40 mm, 16 bar
- RS Stock No.:
- 202-2986
- Distrelec Article No.:
- 301-68-934
- Mfr. Part No.:
- MA-40-16-G1/4-EN
- Manufacturer:
- Festo
Subtotal (1 unit)*
PHP1,713.49
(exc. VAT)
PHP1,919.11
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 37 unit(s) shipping from April 27, 2026
- Plus 45 unit(s) shipping from May 18, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP1,713.49 |
*price indicative
- RS Stock No.:
- 202-2986
- Distrelec Article No.:
- 301-68-934
- Mfr. Part No.:
- MA-40-16-G1/4-EN
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pressure Gauge | |
| Maximum Pressure Measurement | 16bar | |
| Minimum Pressure Measurement | 0bar | |
| Pressure Connection | Brass | |
| Connection Size | G 1/4 | |
| Connection Type | Threaded | |
| Series | MA | |
| Case Material | ABS | |
| Dial Size | 40mm | |
| Connection Location | Back Entry | |
| Dial Colour | Black | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pressure Gauge | ||
Maximum Pressure Measurement 16bar | ||
Minimum Pressure Measurement 0bar | ||
Pressure Connection Brass | ||
Connection Size G 1/4 | ||
Connection Type Threaded | ||
Series MA | ||
Case Material ABS | ||
Dial Size 40mm | ||
Connection Location Back Entry | ||
Dial Colour Black | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- PL

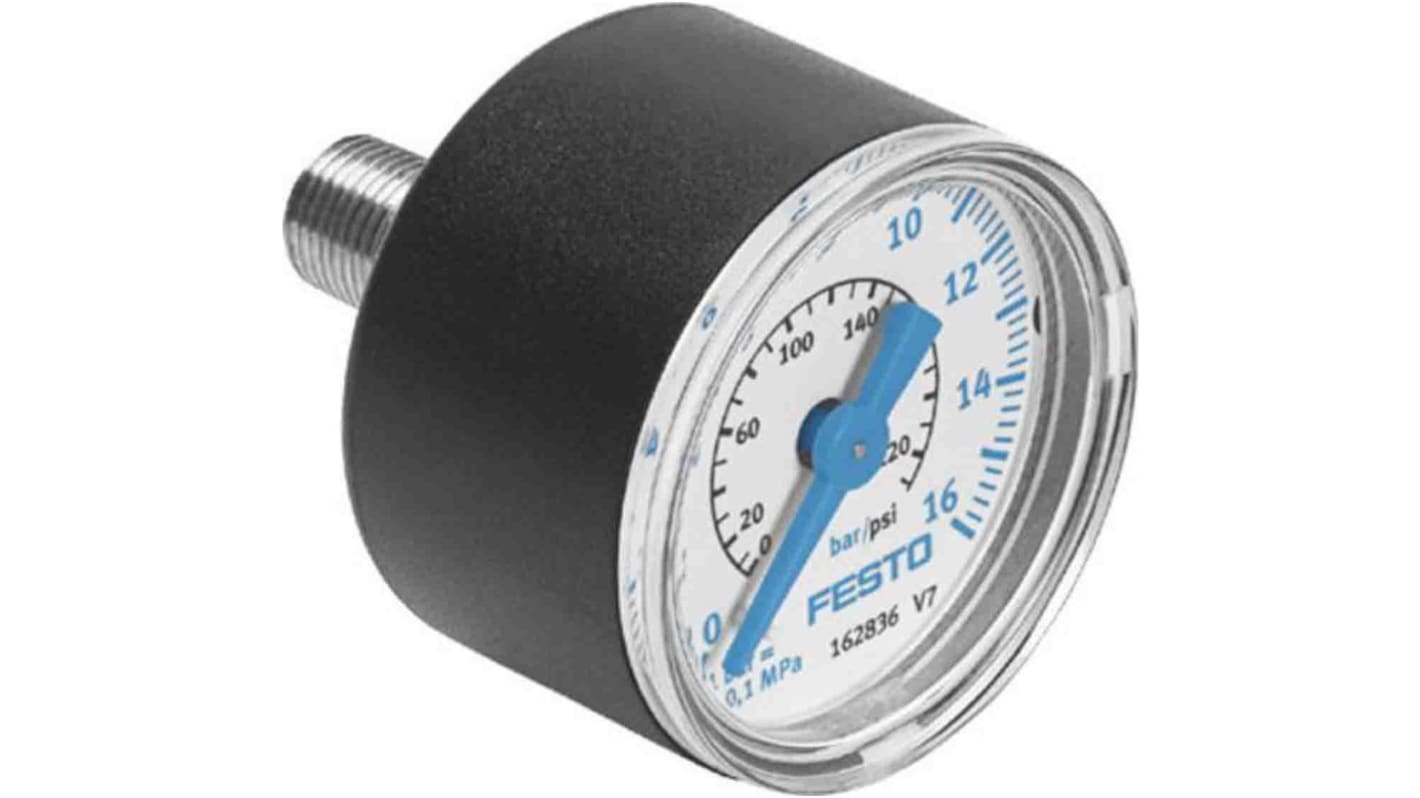

Festo Dial Pressure Gauge, 16 Bar, G1/4 - MA-40-16-G1/4-EN
This dial gauge from Festo lets you accurately measure the pressure of air and compressed gases in your pneumatic systems. To give accurate readings, it features a spring that pushes the dial up when it's compressed and pushes it down when the air pressure reduces. Thanks to a wide pressure range from 0 to 16 bar, you can use it for both small-scale and heavy-duty industrial applications. The analogue gauge's 40mm diameter screen is clear and large enough for you to read easily.
• Acrylonitrile butadiene styrene (ABS) housing material for corrosion and impact resistance
• Polystyrene screen material for a clear display and food-safe use
• IP43 (ingress protection) rating means it will prevent ingress by objects greater than 1mm in size
• Operating temperature range of between -20°C and +60°C for use in demanding environments
Applications
• Food and beverage production
• High-pressure and low-pressure compressors
• Industrial pumps
Why do I need a pressure gauge?
Pressure gauges tell you the pressure or vacuum present at a given point within your pneumatic or fluid power systems. The ability to take readings quickly and easily from a gauge can help you prevent downtime or potential damage should any spikes in pressure put your system under stress.
