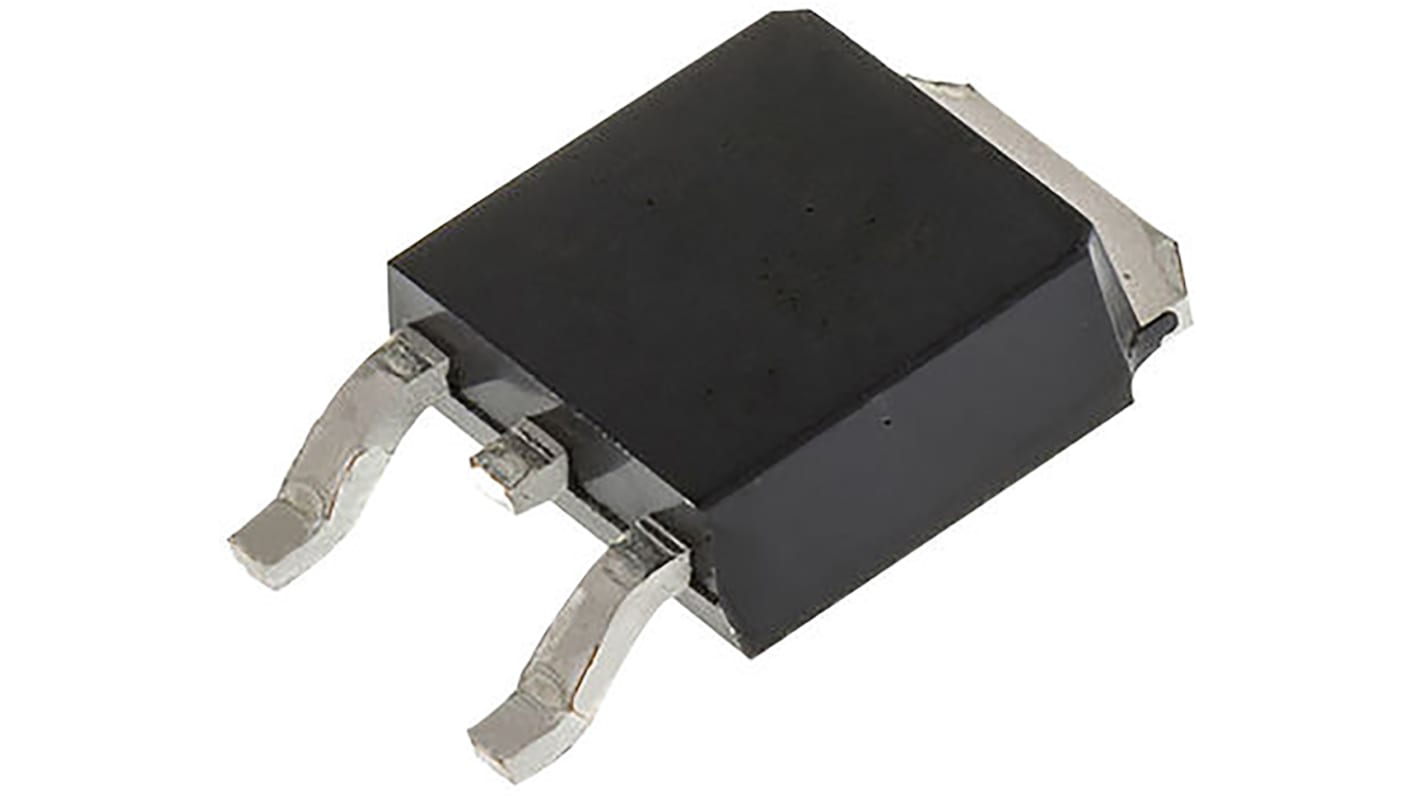

Toshiba Type N-Channel MOSFET, 7 A, 500 V Enhancement, 3-Pin TO-252 TK7P50D(T6RSS-Q)
- RS Stock No.:
- 756-3390
- Mfr. Part No.:
- TK7P50D(T6RSS-Q)
- Manufacturer:
- Toshiba
Bulk discount available
Subtotal (1 pack of 5 units)*
PHP228.00
(exc. VAT)
PHP255.35
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 115 unit(s) ready to ship from another location
- Plus 810 unit(s) shipping from January 02, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 20 | PHP45.60 | PHP228.00 |
| 25 - 45 | PHP44.232 | PHP221.16 |
| 50 - 245 | PHP42.906 | PHP214.53 |
| 250 - 495 | PHP41.956 | PHP209.78 |
| 500 + | PHP41.046 | PHP205.23 |
*price indicative
- RS Stock No.:
- 756-3390
- Mfr. Part No.:
- TK7P50D(T6RSS-Q)
- Manufacturer:
- Toshiba
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 7A | |
| Maximum Drain Source Voltage Vds | 500V | |
| Package Type | TO-252 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 1.22Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 30 V | |
| Maximum Power Dissipation Pd | 100W | |
| Typical Gate Charge Qg @ Vgs | 12nC | |
| Forward Voltage Vf | -1.7V | |
| Maximum Operating Temperature | 150°C | |
| Height | 2.3mm | |
| Length | 6.6mm | |
| Width | 6.1 mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 7A | ||
Maximum Drain Source Voltage Vds 500V | ||
Package Type TO-252 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 1.22Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 30 V | ||
Maximum Power Dissipation Pd 100W | ||
Typical Gate Charge Qg @ Vgs 12nC | ||
Forward Voltage Vf -1.7V | ||
Maximum Operating Temperature 150°C | ||
Height 2.3mm | ||
Length 6.6mm | ||
Width 6.1 mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- JP
MOSFET N-Channel, TK6 & TK7 Series, Toshiba
MOSFET Transistors, Toshiba
