Toshiba Type N-Channel MOSFET, 100 A, 40 V Enhancement, 3-Pin TO-252 TK100S04N1L

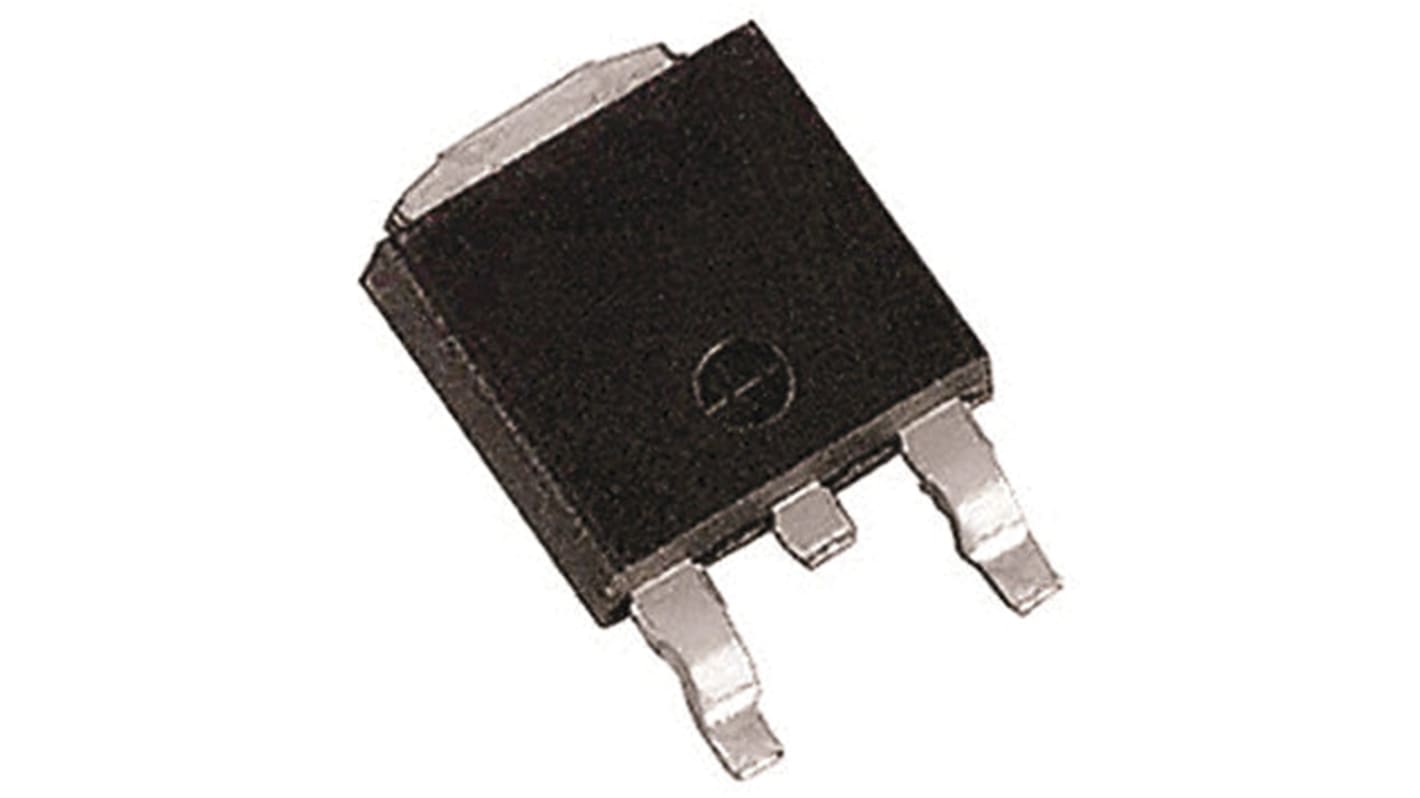

This image is representative of the product range

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 5 units)*

PHP663.52

(exc. VAT)

PHP743.14

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3,515 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Pack*
5 - 20PHP132.704PHP663.52
25 - 95PHP128.724PHP643.62
100 - 995PHP124.858PHP624.29
1000 +PHP121.114PHP605.57

*price indicative

Packaging Options:
RS Stock No.:
171-2499
Mfr. Part No.:
TK100S04N1L
Manufacturer:
Toshiba
Find similar products by selecting one or more attributes.
Select all

Brand

Toshiba

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

100A

Maximum Drain Source Voltage Vds

40V

Package Type

TO-252

Mount Type

Surface

Pin Count

3

Maximum Drain Source Resistance Rds

4.5mΩ

Channel Mode

Enhancement

Minimum Operating Temperature

-55°C

Maximum Gate Source Voltage Vgs

20 V

Forward Voltage Vf

-1.2V

Maximum Power Dissipation Pd

180W

Typical Gate Charge Qg @ Vgs

76nC

Maximum Operating Temperature

175°C

Standards/Approvals

No

Height

2.3mm

Width

7 mm

Length

6.5mm

Automotive Standard

AEC-Q101

RoHS Status: Exempt

COO (Country of Origin):
JP
Applications

Automotive

Switching Voltage Regulators

Motor Drivers

Features

Low drain-source on-resistance: RDS(ON) = 1.9 mΩ (typ.) (VGS = 10 V)

Low leakage current: IDSS = 10 μA (max) (VDS = 40 V)

Enhancement mode: Vth = 1.5 to 2.5 V (VDS = 10 V, ID = 0.5 mA)
