Toshiba Type P-Channel MOSFET, 15 A, 40 V Enhancement, 3-Pin TO-252 TJ15P04M3

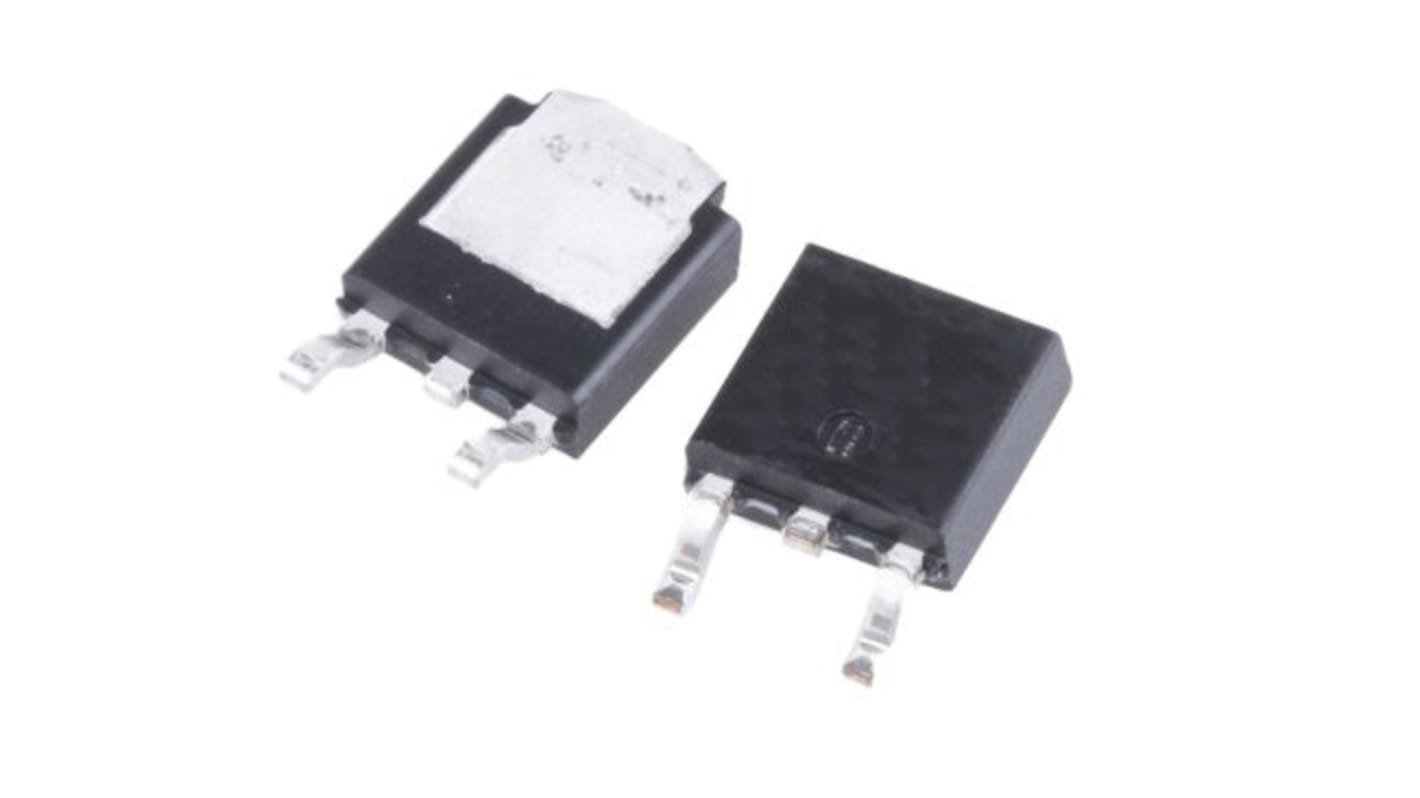

This image is representative of the product range

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 10 units)*

PHP403.27

(exc. VAT)

PHP451.66

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 380 unit(s) ready to ship from another location
  • Plus 40 unit(s) shipping from January 02, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Pack*
10 - 40PHP40.327PHP403.27
50 - 90PHP39.117PHP391.17
100 - 990PHP37.942PHP379.42
1000 +PHP36.804PHP368.04

*price indicative

Packaging Options:
RS Stock No.:
171-2473
Mfr. Part No.:
TJ15P04M3
Manufacturer:
Toshiba
Find similar products by selecting one or more attributes.
Select all

Brand

Toshiba

Channel Type

Type P

Product Type

MOSFET

Maximum Continuous Drain Current Id

15A

Maximum Drain Source Voltage Vds

40V

Package Type

TO-252

Mount Type

Surface

Pin Count

3

Maximum Drain Source Resistance Rds

48mΩ

Channel Mode

Enhancement

Maximum Power Dissipation Pd

29W

Forward Voltage Vf

1.2V

Minimum Operating Temperature

-55°C

Maximum Gate Source Voltage Vgs

20 V

Typical Gate Charge Qg @ Vgs

26nC

Maximum Operating Temperature

150°C

Width

7.18 mm

Length

6.6mm

Height

2.3mm

Standards/Approvals

No

Automotive Standard

No

RoHS Status: Exempt

COO (Country of Origin):
CN
Low drain-source on-resistance: RDS(ON) = 28 mΩ (typ.) (VGS = -10 V)

Low leakage current: IDSS = -10 μA (max) (VDS = -40 V)

Enhancement mode: Vth = -0.8 to -2.0 V (VDS = -10 V, ID = -0.1 mA)

Applications:

Motor Drivers

Power Management Switches
