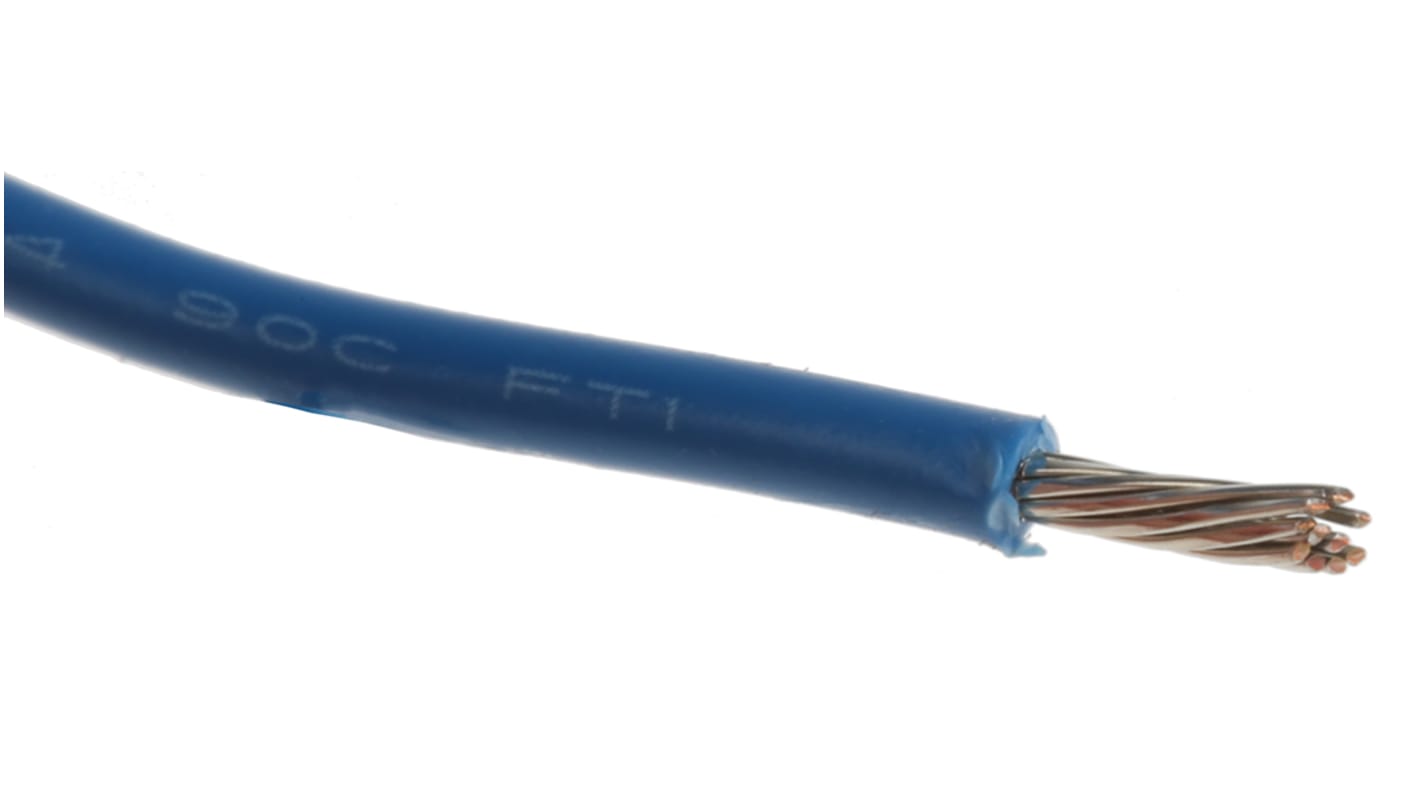

Alpha Wire Hook-up Wire PVC Series Blue 0.51 mm² Hook Up Wire, 20 AWG, 10/0.25 mm, 305m, PVC Insulation
- RS Stock No.:
- 124-2839
- Mfr. Part No.:
- 3053 BL001
- Manufacturer:
- Alpha Wire
1 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
22 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price 1 Reel of 304 Metre(s)
PHP6,987.91
(exc. VAT)
PHP7,826.46
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
1 - 24 | PHP6,987.91 | PHP22.987 |
25 + | PHP6,778.27 | PHP22.297 |
*price indicative |
- RS Stock No.:
- 124-2839
- Mfr. Part No.:
- 3053 BL001
- Manufacturer:
- Alpha Wire
Technical data sheets
Legislation and Compliance
Product Details
Alpha Wire 300 V PVC Hook Up Wire
When every application is critical and wire failure is not an option, choose Alpha Wire PVC hook up wire as your solution. PVC hook up wire benefits from good abrasion resistance and excellent fire resistance. This 300 V PVC hook up wire can be used in temperatures ranging from -40°C to +105°C depending on the application.
Features and benefits
Stranded or solid tinned copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments
Colour-coded insulation for easy circuit identification
Easy to handle, strip and terminate
PVC insulation
Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
Colour-coded insulation for easy circuit identification
Easy to handle, strip and terminate
PVC insulation
Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
Product Applications
Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.
Alpha Wires FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.
Standards
UL AWM 1007, 1581, 1569 VW-1, CSA AWM I A/B FT1, CSA TR-64 FT1
Belden Alpha Wire Blue Hook-Up Wire, 20AWG, 305m Length - Premium Series - 3053 BL001
Use this hook-up wire from Belden's Alpha Wire range to connect the internal circuits of your electronic equipment. The robust PVC insulation protects you from potentially harmful currents, making it safe to handle. Its maximum pull tension of 7.9lbs offers tensile strength so you can stretch this component in tight spaces without risking it splitting. An operating temperature range between -40°C and +105°C means it's suitable for use in harsh environments.
Features & Benefits
• Flame-retardant for use in areas at risk of fire
• Length of 305m gives enough stock for multiple connections
• Tinned-copper conductors are resistant to corrosion for use in humid conditions
• Length of 305m gives enough stock for multiple connections
• Tinned-copper conductors are resistant to corrosion for use in humid conditions
Applications
• Automotive engineering
• Medical technology
• Switchboards
• Medical technology
• Switchboards
How do I terminate a hook-up wire?
You can either solder it directly to a PCB or attach it using a crimp terminal. For added convenience, you can also terminate a hook-up wire by inserting the ends into a connector.
Specifications
Attribute | Value |
---|---|
Cross Sectional Area | 0.51 mm² |
Sheath Colour | Blue |
American Wire Gauge | 20 AWG |
Cable Shape | Single Core |
Core Strands | 10/0.25 mm |
Length | 305m |
Insulation Material | PVC |
Outer Diameter | 1.75mm |
Voltage Rating | 300 V |
Maximum Operating Temperature | +105°C |
Minimum Operating Temperature | -40°C |
Conductor Material | Tinned Copper |
Wire Style | UL1007 |
Standards Met | UL Listed |
Fire Behaviour | Flame Retardant |
Series | Hook-up Wire PVC |
Shield Type | Unshielded |
Insulation Wall Thickness | 0.4mm |
Size of Strands | 0.25 mm |
Number of Strands | 10 |
