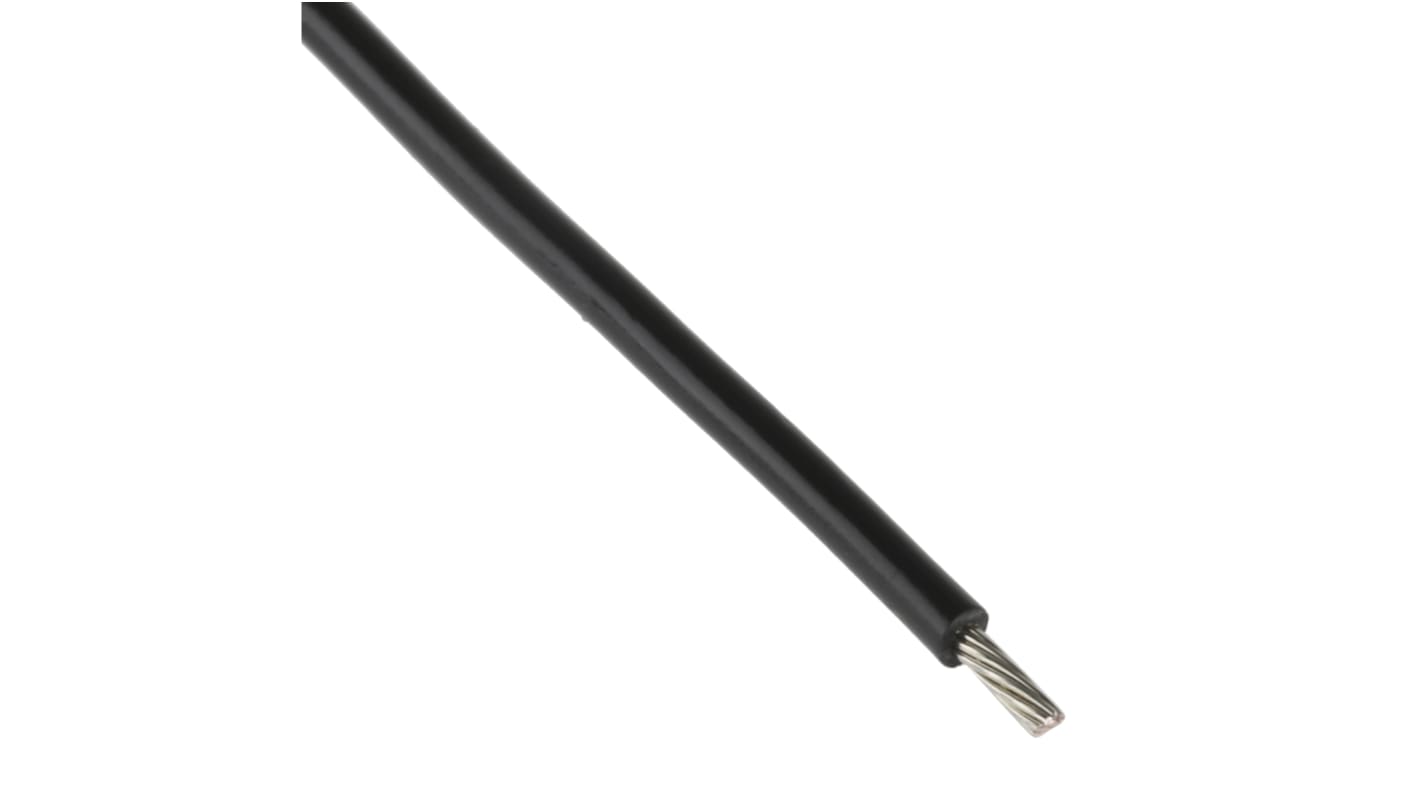

    Alpha Wire Black 0.51 mm² Hook Up Wire, Premium Series, 20 AWG, 10/0.25 mm, 305m

    RS Stock No.:
    124-2772
    Mfr. Part No.:
    3053 BK001
    Manufacturer:
    Alpha Wire
    Alpha Wire
    View all Hook Up Wire
    88 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
    Add to Basket
    Reel(s)

    Added

    Price 1 Reel of 304 Metre(s)

    PHP19,439.57

    (exc. VAT)

    PHP21,772.32

    (inc. VAT)

    Reel(s)Per ReelPer Metre*
    1 - 24PHP19,439.57PHP63.946
    25 +PHP19,031.33PHP62.603
    *price indicative
    RS Stock No.:
    124-2772
    Mfr. Part No.:
    3053 BK001
    Manufacturer:
    Alpha Wire
    COO (Country of Origin):
    US

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    US

    Product Details

    Belden Alpha Wire Single Core Cable Hook-Up Wire, 0.51mm² Cross-Sectional Area - Premium Series - 3053


    Use this robust and reliable hook-up wire from Belden's Alpha Wire range to keep your electrical equipment operating smoothly. It's wrapped in PVC (polyvinyl chloride) material, which has excellent insulating properties and avoids overheating. As the cable is unshielded, you'll find it easy to strip and terminate for quick installation. It also delivers a bend radius 10 times its cable diameter for flexible wiring in tight spaces.


    Features & Benefits


    • Tinned copper conductor is resistant to corrosion even in wet environments
    • Broad operating temperature range of -40°C to +105°C for use in extreme conditions
    • Flame-retardant PVC insulation means it self-extinguishes in the event of a fire
    • 1.75mm outer diameter for durability


    Applications


    • Telecommunications
    • Domestic appliances
    • Commercial catering


    What is a single-core cable?


    A single-core cable like this one is also known as a solid-core cable. It has only one strand of conductor, which is made from braided copper. Single-core cables are tougher than stranded cables.



    Specifications

    AttributeValue
    Cross Sectional Area0.51 mm²
    Sheath ColourBlack
    American Wire Gauge20 AWG
    Core Strands10/0.25 mm
    Insulation MaterialPVC
    Outer Diameter1.75mm
    Length305m
    Voltage Rating300 V
    Conductor MaterialTinned Copper
    Wire StyleUL1007
    Maximum Operating Temperature+105°C
    Fire BehaviourFlame Retardant
    Minimum Operating Temperature-40°C
    Shield TypeUnshielded
    Insulation Wall Thickness0.4mm
    SeriesPremium
    Standards MetUL Listed
