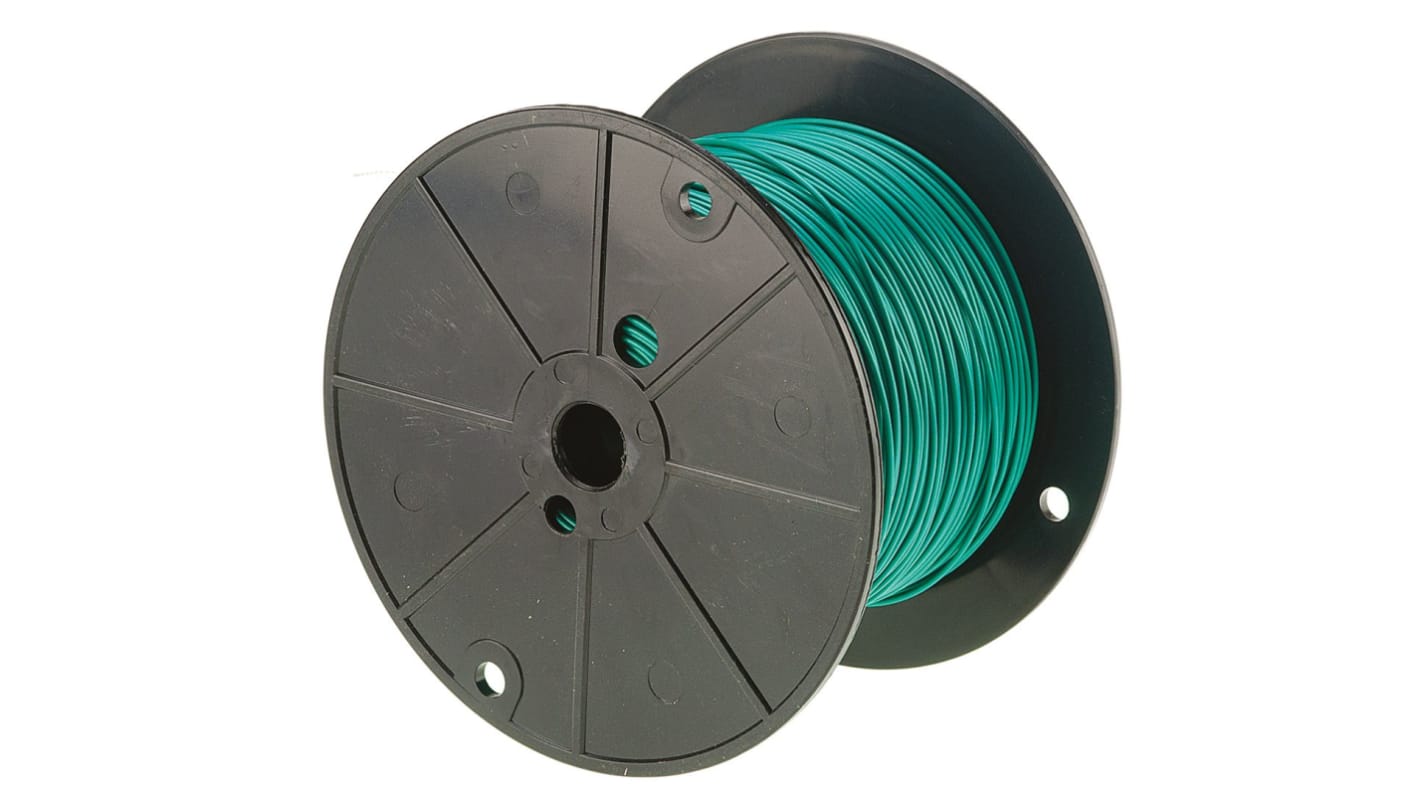

Alpha Wire Hook-up Wire PVC Series Green 0.51 mm² Hook Up Wire, 20 AWG, 10/0.25 mm, 305m, PVC Insulation, 3053 GR001

When every application is critical and wire failure is not an option, choose Alpha Wire PVC hook up wire from Belden as your solution. PVC hook up wire benefits from good abrasion resistance and excellent fire resistance. This 300 V PVC hook up wire can be used in temperatures ranging from -40°C to +105°C depending on the application.

• Stranded or solid tinned copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments

• Colour-coded insulation for easy circuit identification

• Easy to handle, strip and terminate

• PVC insulation

• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.

Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.

UL AWM 1007, 1581, 1569 VW-1, CSA AWM I A/B FT1, CSA TR-64 FT1

This Alpha Wire hook up wire is the ideal product for critical applications where wire failure is simply not an option. This cable offers a collection of application and installation options so that you can easily select it to meet your most demanding needs. This product is efficient in terms of its performance in resistance and abilities in application.

• The hook up wire contains a conductor of 20 (SOLID) AWG with material used of tinned copper, preventing corrosion
• The hook up wire is held with a barrel making it easy to organise and store
• Resistance to oil, solvents, and chemicals
• Ability to endure wear and abrasion
• Excellent flame resistance ensuring safety
• PVC insulated cable known for environmentally friendly material and being fire retardant

• Used in control panels
• Automotive equipment
• Meters
• Ovens
• Internal wiring of computers
• Electronic equipment
• Industrial machines and appliances

What is the product’s physical and mechanical properties?
The hook up wire’s temperature range is between -40C to 105C, the hook up wire has a bend radius 10x the cable diameter and it has a pull tension of 8lbs being the maximum.
