Enerpac, Portable Low Height Hydraulic Cylinder, SRS500PGH Single Acting 45 t 16 mm
- RS Stock No.:
- 907-6545
- Mfr. Part No.:
- SRS500PGH
- Manufacturer:
- Enerpac
Subtotal (1 unit)*
PHP259,460.30
(exc. VAT)
PHP290,595.54
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 22 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP259,460.30 |
*price indicative
- RS Stock No.:
- 907-6545
- Mfr. Part No.:
- SRS500PGH
- Manufacturer:
- Enerpac
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Enerpac | |
| Product Type | Low Height Hydraulic Cylinder | |
| Stroke Length | 16mm | |
| Closed Height | 66mm | |
| Extended Height | 82mm | |
| Cylinder Effective Area | 62.1cm² | |
| Oil Capacity | 99cm³ | |
| Cylinder Capacity | 45t | |
| Action Type | Single Acting | |
| Maximum Operating Pressure | 700 bar | |
| Weight | 6.8kg | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Enerpac | ||
Product Type Low Height Hydraulic Cylinder | ||
Stroke Length 16mm | ||
Closed Height 66mm | ||
Extended Height 82mm | ||
Cylinder Effective Area 62.1cm² | ||
Oil Capacity 99cm³ | ||
Cylinder Capacity 45t | ||
Action Type Single Acting | ||
Maximum Operating Pressure 700 bar | ||
Weight 6.8kg | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- NL
Power Box Cylinder & Pumpsets

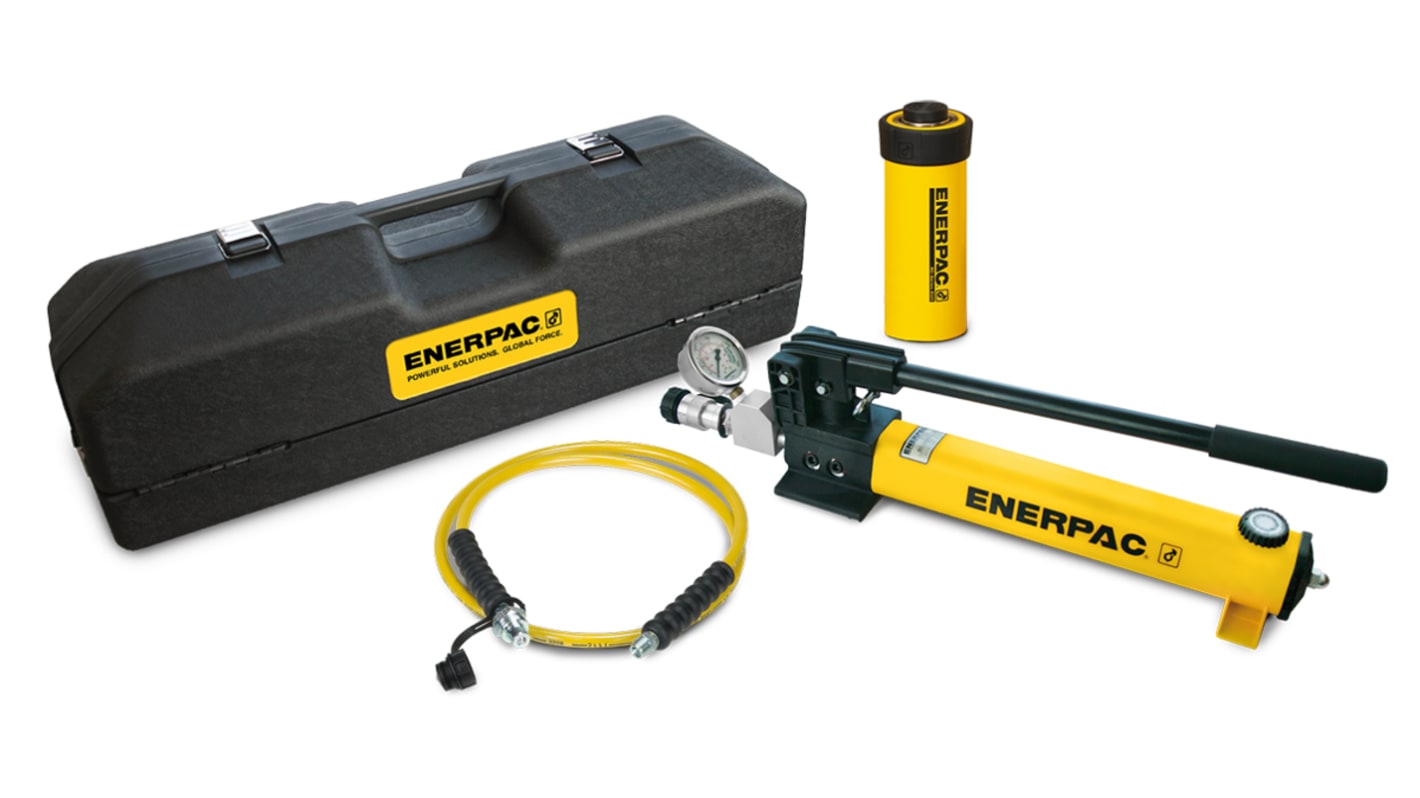

Enerpac power box sets give you a complete hydraulic solution in one package. Each pack contains a hydraulic cylinder, P-392 hand pump, 700 bar pressure gauge with adapter assembly and a 1.8m hydraulic hose all supplied in a tough plastic carry case to make transportation easy.
The two speed hand pump requires 78% less effort operate than single speed versions and is fitted with a pressure relief valve to prevent overloading. Lightweight and low handle effort ensures ease of use a minimum operator fatigue.
The Powerbox kit is available with a choice of cylinders including a wedge spread, general purpose, low height or flat-jac cylinder ensuring there is a Powerbox kit for a wide range of lifting, pulling, pushing and bending applications. All cylinder comly to ASME B30.1 and feature a baked enamel finish for improved corrosion resistance.
Cylinder & Pump Sets
